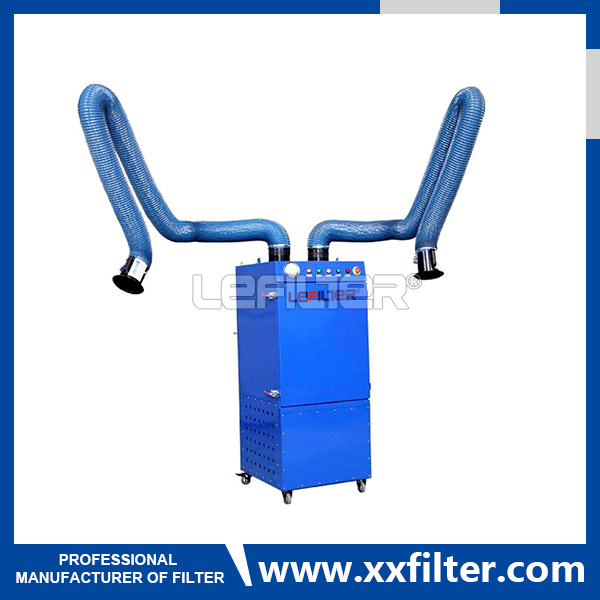

4500m3/h air flow welding fume extractor for air fitration

Introduction: Welding Fume CollectorProduct Application: Welding fume extractor suitable for air purification fume filtration for different welding processing: 1) Argon arc welding; 2) Electric-a...

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

Product parameter:

Welding Fume Collector Product Application:

Welding fume extractor suitable for air purification, fume filtration for different welding processing:
1) Argon arc welding;
2) Electric-arc welding;
3)Carbon-dioxide arc welding;
4)electric slag pressure welding;
5)Oxygen-acetylene Gas Welding;
6)Flash butt welding ultrasonic welding;
7) Other Welding Process.

Welding Fume Collector Main Features:

Use special and high quality fans and motors to prevent the motor burned anti-overload circuit, high security, stable performance, high filtration performance, nice quality, easily move.
PA-4500DA using automatic cleaning system, installed the differential pressure monitoring device in front of filter and back the filter, when the filter pressure to reach the specified value, to connect air compressor, start the automatic anti-blowing system and doing high pressure blow back from inside of filter.

The deposition dust on the filter surface will be blowing to the dust drawer, so that the filter surface becomes clean. The equipment needs to be connected to compressed air, so customers need prepare their own air compressor. Air compressor connect by high pressure hose, it intake by high pressure from the bottom, to ensure the dust collector always in good working condition.

Welding Fume Collector Product Function:

1)Working principle:Through the wind force of the fan, the dust is sucked into the air inlet of the equipment through the suction hose, then the dust is blocked at the air inlet, the large dust is blocked to the dust drawer. Small dust enter into the settlement room, take use of gravity and the upstream air, firstly make the coarse dust directly drop to the ash bucket, small dust particles were trapped in the outer surface of the filter. Clean air will be filtrate by HEPA PTFE Cartridge Filter, then enter into the clean room, exhaust outside after the outlet by the standard discharge;
2) Has very good peformance for Dust collection and fume filtration for laser cutting metal, plasma cutting, polishing and small workpeiece metal grinding, etc;
3) Air flow is 4500m3/h;
4) With HEPA PTFE Cartridge Filter to ensure filtrate harmful material of the fumes/dust completely, to achieve room air quality standard, protect environment and people's health;
5) Filter cleaning type: Automatic blowback cleaning system.


Welding Fume Collector Product Speccification:

Cartridge Filter Elements Data
Item Technical Data Remark
Cartridge Filter H13 class HEPA PTFE cartridge Filter High efficiency film filter
Filter qty 2PCS Filter cartridge size φ325*650MM
Exhaust Arm 2PCS Suck the welding fumes
Average filtration rate ≥99.9% It will be a little fluctuation according to different materials.

Blower Technical Data
Item Technical Data Remark
Running period more than 30,000h One year guarantee
Max. air flow 4500m³/h Electronic speed control
Input capacity 4.0KW Low capacity
Filtration Area 30m2 High filtration rate
Running sound ≤75dBA Low sound volume
Input power 380V,50HZ International standard

Equipment Data
Item Technical Data Remark
PA-4500DA Carbon steel painting machine Main components including: high temperature resistance vacuum hose, imported materials HEPA PTFE Cartridge Filter, dust drawer, casters with the brake, fans, motors and electronic control box, exhaust arm.
Dust Cleaning Way Automatic blowback cleaning system Using automatic cleaning system, installed the differential pressure monitoring device in front of filter and back the filter, when the filter pressure to reach the specified value, to connect air compressor, start the automatic anti-blowing system and doing high pressure blow back from inside of filter.
Fume & dust inlet 150mm*2 Double Air inlets, include 2pcs exhaust arms  φ150mm*3000mm(L)
Fresh air outlet 150mm Shutter holes
Machine weight 180KG (N.W.) Machine with all elements
Dimension 820*840*1600mm Machine size
Package dimension 920*940*1750mm Packed by plywood crate

Amy/ Overseas Manager
Tel: 0086-373-2638 828
Fax: 0086-373-3339 377
Mobile : 0086-15637366455 ( WhatsApp / Viber )
Skype: aldfilters
E-mail: sales03@xxldlq.com
Web:www.xxfilter.com
