Product parameter:
Stainless Steel Bag Filter Housing Product Functions
1. Slight probability of side of leakage of filter bag which effectively guarantee the filtering quality.
2.Bag filter can bear greater working pressure with less pressure loss,lower operation cost and obvious energy-saving effect.
3.Filtering accuracy of filter bag is increasing continuously , which has reached 0.5um at present.
4.Bag filtering is featured with large-processing capactity, small volume and large amount of contaminant.
Application Stainless Steel Bag Filter Housing Product
Paint, Beer, Vegetable oil, Pharmaceuticals, Cosmetics, Chemicals, Petroleum products, Chemicals, Electroplating solution, Milk, Mineral water, Hot solvents, Latex, Industrial water, Coatings and paints, Sugar, Molasses, Resins, Inks, Industrial waste water, Juice, Cooking oil, Wax, Precision filters and other industries.
Working Principle
Bag filter is a widely used for liquid filtration,it can remove the particles of different size from liquid,in order to achieve liquid filtration,purification,separation,recovery purposes.It consists of three parts:bag housing,supporting basket and filter bags.According to flow rate,you may use multiple bags in a bag housing.First,the liquid enter into the housing from the inlet,which may placed in the side or on the top,and then flow into the filter bag which is braced by basket.Due to the impact pressure of fluid,the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe.Impurities are trapped in the bag,the filtration process is complete.When you replace or clean the bag,just simply loosen the bolt,rotary hand wheel lifting the lid,and get the bag.

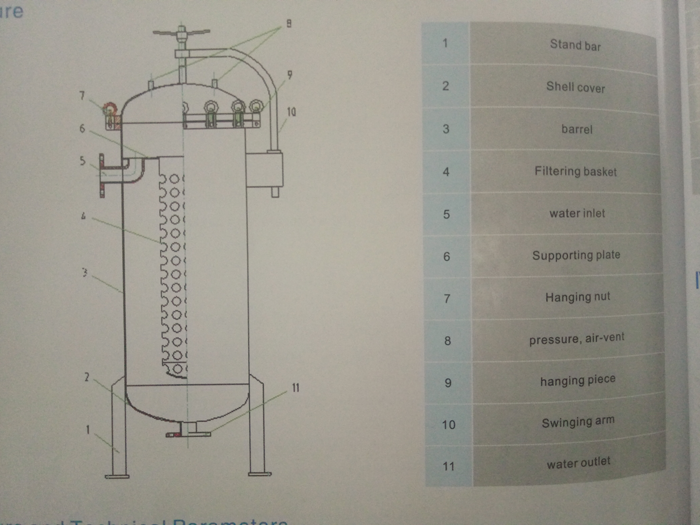

Product Structures:
