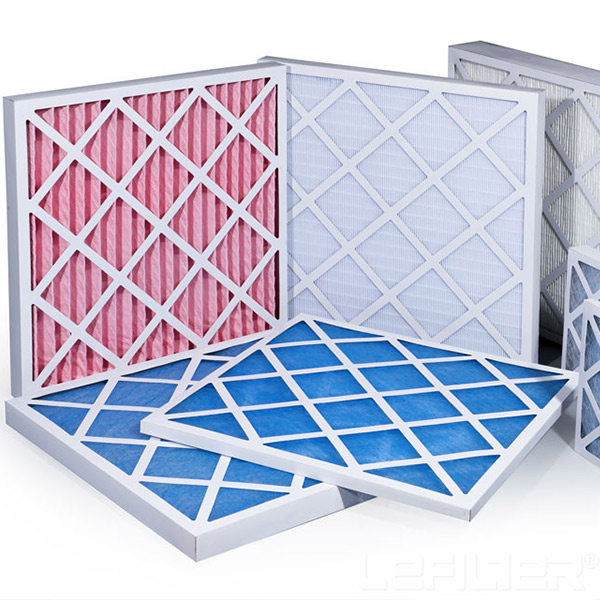

G4 Pleated filters with cardboard frame

Introduction:Sepc. of G4 Pleated filters with cardboard frame The filter is low initial pressure drop and high dust holding capacity. The filter media inside the frame can be unfolded or pleated. To supply in paper or metal frames as aluminum or galvan

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

Sepc. of G4 Pleated filters with cardboard frame

The filter is low initial pressure drop and high dust holding capacity.

The filter media inside the frame can be unfolded or pleated.

To supply in paper or metal frames as aluminum or galvanized.

Easy to be changed and the metal frame panel filters can be washed reused.

Common Specification of G4 Pleated filters with cardboard frame

Model

Dimensions

(mm)

W*H*D

Efficiency

(EN799)

Rated Air Flow

(m³/h)

Initial Pressure Drop

(Pa)

70%            100%





 120%

Final Pressure Drop

(Pa)

LE-12*24*2

290*595*46

G2

1700

45

70

100

250

LE-20*24*2

490*595*46

G2

2800

2800

45

100

250

LE-24*24*2

595*595*46

G2

3400

3400

45

100

250

LE-12*24*2

290*595*46

      G3

1700

   65

95

135

250

LE-20*24*2

490*595*46

      G3

2800

   65

95

135

250

LE-24*24*2

595*595*46

      G3

3400

65

95

135

250

LE-12*24*2

290*595*46

      G3

1700

85

130

175

250

LE-20*24*2

490*595*46

      G4

2800

85

130

175

250

LE-24*24*2

595*595*46

      G4

3400

85

130

175

250

LE-12*24*2

290*595*46

      F5

1700

100

140

205

250

LE-20*24*2

490*595*46

      F5

2800

100

140

205

250

LE-24*24*2

595*595*46

      F5

3400

100

140

205

250

Product Details Show
