Xinxiang Supply Machine Oil Purifier Blyj series Oil Purifie

Introduction: The FluidCleaner Mobil FCM is a mobile oile servicing and care unit and is used for offline filtration during the filling of plants and when hydraulic and lubrication media are bein...

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

Product parameter:

Application:

Hydraulic lubrication system refueling and regular maintenance

Hydraulic lubrication system bypass’s filtration

Product Performance:

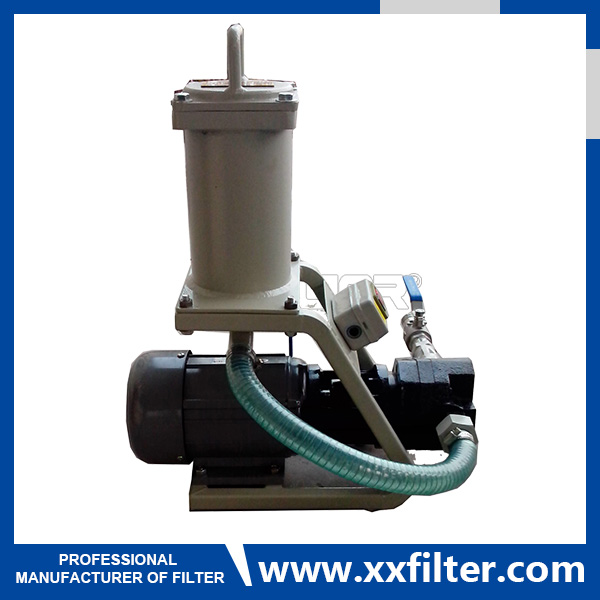

1. The oil filter cart is an ultra-portable fuel oil filter machine.
 2. The machine is easily to carry, can fill oil to any hydraulic lubrication equipment in various circumstances and purify the oil.
 3. The coarse filtration of suction port can protect the pump and extend the life of the main filter.
4. The precision filter chosen by different users for different precision, and can achieve the desired results.

Model BLYJ-6-*/** BLYJ-10-*/** BLYJ-16-*/**
Rated flow L/min 6 10 16
Temperature°C 6-80
Recommended viscosity CSt 10-160
Rated pressure Mpa 0.4
The original pressure loss Mpa ≤0.02
First filtration precision before pump μm 40
Secondary filtration accuracy after pump μm 3、5、10、20、40
Voltage V Three-phase AC380V   Two-phase AC220V
Motor Power kw 0.18 0.25 0.35
Weight kg 13 16 18
Dimensions 350x200x510 400x200x510 420x200x510

Adoptive standards:

Application:

Hydraulic lubrication system refueling and regular maintenance

Hydraulic lubrication system bypass’s filtration

Product Performance:

1. The oil filter cart is an ultra-portable fuel oil filter machine.
 2. The machine is easily to carry, can fill oil to any hydraulic lubrication equipment in various circumstances and purify the oil.
 3. The coarse filtration of suction port can protect the pump and extend the life of the main filter.
4. The precision filter chosen by different users for different precision, and can achieve the desired results.

Model BLYJ-6-*/** BLYJ-10-*/** BLYJ-16-*/**
Rated flow L/min 6 10 16
Temperature°C 6-80
Recommended viscosity CSt 10-160
Rated pressure Mpa 0.4
The original pressure loss Mpa ≤0.02
First filtration precision before pump μm 40
Secondary filtration accuracy after pump μm 3、5、10、20、40
Voltage V Three-phase AC380V   Two-phase AC220V
Motor Power kw 0.18 0.25 0.35
Weight kg 13 16 18
Dimensions 350x200x510 400x200x510 420x200x510

Features:

Application:

Hydraulic lubrication system refueling and regular maintenance

Hydraulic lubrication system bypass’s filtration

Product Performance:

1. The oil filter cart is an ultra-portable fuel oil filter machine.
 2. The machine is easily to carry, can fill oil to any hydraulic lubrication equipment in various circumstances and purify the oil.
 3. The coarse filtration of suction port can protect the pump and extend the life of the main filter.
4. The precision filter chosen by different users for different precision, and can achieve the desired results.

Model BLYJ-6-*/** BLYJ-10-*/** BLYJ-16-*/**
Rated flow L/min 6 10 16
Temperature°C 6-80
Recommended viscosity CSt 10-160
Rated pressure Mpa 0.4
The original pressure loss Mpa ≤0.02
First filtration precision before pump μm 40
Secondary filtration accuracy after pump μm 3、5、10、20、40
Voltage V Three-phase AC380V   Two-phase AC220V
Motor Power kw 0.18 0.25 0.35
Weight kg 13 16 18
Dimensions 350x200x510 400x200x510 420x200x510

Application:

Application:

Hydraulic lubrication system refueling and regular maintenance

Hydraulic lubrication system bypass’s filtration

Product Performance:

1. The oil filter cart is an ultra-portable fuel oil filter machine.
 2. The machine is easily to carry, can fill oil to any hydraulic lubrication equipment in various circumstances and purify the oil.
 3. The coarse filtration of suction port can protect the pump and extend the life of the main filter.
4. The precision filter chosen by different users for different precision, and can achieve the desired results.

Model BLYJ-6-*/** BLYJ-10-*/** BLYJ-16-*/**
Rated flow L/min 6 10 16
Temperature°C 6-80
Recommended viscosity CSt 10-160
Rated pressure Mpa 0.4
The original pressure loss Mpa ≤0.02
First filtration precision before pump μm 40
Secondary filtration accuracy after pump μm 3、5、10、20、40
Voltage V Three-phase AC380V   Two-phase AC220V
Motor Power kw 0.18 0.25 0.35
Weight kg 13 16 18
Dimensions 350x200x510 400x200x510 420x200x510
