Factory directly sale HYDAC inline oil filters FMND400_lefilter

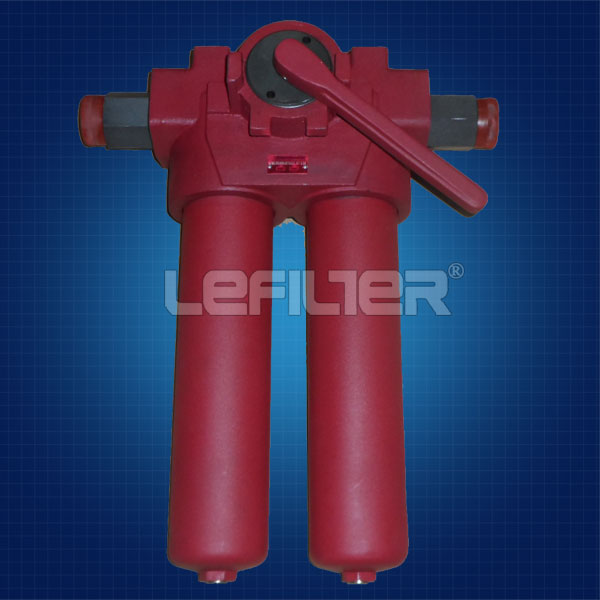

Factory directly sale HYDAC inline oil filters FMND400

Introduction: Hydac Hydraulic Filter P/No.RF BN/HC 110 DC10A1.0 used for OilGas fieldPetrochemicalPower Plant Steel Plant Cement PlantRefineriesPaper millsTextileMineRailwayFood and beverage ect ...

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

Product parameter:

Introduction of Factory directly sale HYDAC inline oil filters FMND400 :

1. Non-welded housing design reduces stress  concentrations and prevents fatigue failure.

2. Choice of NPT, SAE straight thread O-ring boss, and SAE 4-bolt flange porting (size 60-1320) to allow easy installation without costly adapters.

3. O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (Nitrile, Fluoroelastomer, EPDM) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water base fluids.

4. Screw-in bowl mounted below the filter head requires minimal clearance to remove the element for replacement, and contaminated fluid cannot be washed downstream when element is serviced.

5. Differential Pressure Indicators. HYDAC indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.

6. A poppet-type bypass valve (optional) provides positive sealing during normal operation and fast opening during cold starts and flow surges.

7. For special finishes and coatings-consult HYDAC for minimum quantities, availability and pricing.

8. Fatigue pressure ratings equalis maximum allowable working pressure rating.

Technical Data:

1. Construction materials:

    Head---ductile iron

    Bowl---steel

    Housing(1320)---steel

    Cap(660 & 1320 ver. 2)---ductile iron

2. Flow capacity: 30 ~ 1320 L/min

3. Max operating pressure: 6000 psi (420 bar)

4. Fluid temp. range: -30 to 121 ℃

Packaging:

1.Inner package:carton;

2.Outer package:Wooden case;

3.Goods could also be packaged as the client request.

Contat me :

Ms Erica
sales02@xxldlq.com
whatsApp id 0086-13069352523

Adoptive standards:
