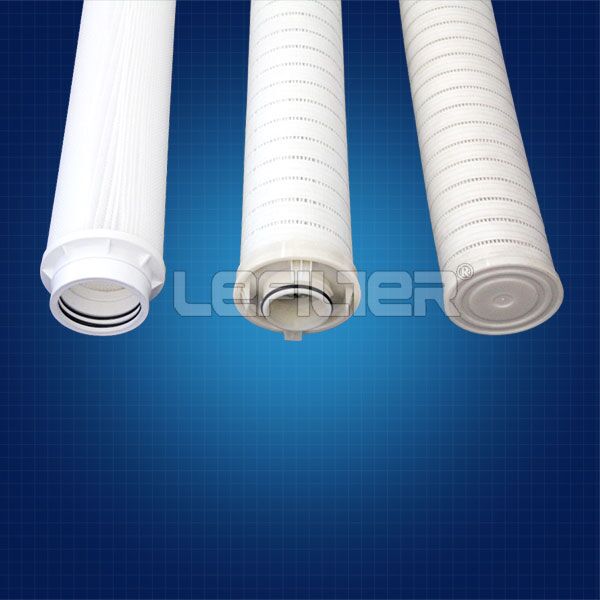

20inch Pall large flow water element

Introduction: Pall large flow filters have a big diameter of 6 inches/152mm but no center support frame. Only one end of the filter is open and its flow manner of filtering fluid is from insid...

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

Product parameter:

Pall large flow filters have a big diameter of 6 inches/152mm, but no center support frame. Only one end of the filter is open and its flow manner of filtering fluid is from inside to outside. The big diameter of filter elements increases effective filtering areas, and greatly reduces the amounts of filter element and the size of its body case. Due to its large flow and long life, Pall large flow filter can lower investment and human cost in many applications.

Technical specifications

Filter size:
  • outer diameter: 6"(152mm)
  • Length:20"(528mm)、40"(1022mm)、60"(1538mm)
Part material:
  • Filter material: folding glass fiber, folding deep polypropylene(PP), MBPP
  • End cap: reinforced polypropylene with glass fiber
  • Seal material: EPR (Ethylene-Propylene Rubber), nitrile rubber
Performance of filter elements:
  • Filtering accuracy:1μm、4.5μm、6μm、10μm、20μm、40μm、70μm、100μm
  • Highest operating temperature: folding glass fiber:121℃
           folding deep polypropylene(PP):82℃
           MBPP:65℃

  • Maximum pressure drop:  folding glass fiber:3.4bar,121℃
          folding deep polypropylene(PP):3.4bar,82℃
          MBPP:1.03bar,65℃
  • Recommended pressure drop for filter replacement: 2.4Bar ,20℃
  • Recommended maximum filtering water flow: 20"filter: 660L/min


Xinxiang Lifeierte Filter Corp.,Ltd (Stock code:837936)is specialized in manufacture of filters ,filter equipment,and environment system . Located in Xinxiang City-the center of Filtration in China.Lefilter has superior R & D team, professional technical team,experienced overseas sales team and perfect after-sales service system.We Lefilter people will try our best to satisfy customers' requirements.The develop philosophy of LEFILTER is “To purify environment,To serve society,To manage faithfully and To oyrsye excellence”!What’s more,there're advanced production line,test machine and R & D department.They also obtained certification like ISO9001, IQNet & CQM,SGS,CNEX etc.

Contact at:
Attn:kayla wang
Email: sales05@xxldlq.com
Skype: sales05_438
Wechat:+86 18625907408(Whats App)
Web.:www.xxfilter.com
