Leemin Tank Mounted Hydraulic Suction Oil Filter TF-630X100f

Introduction: Leemin RF TANK MOUNTED Return filter RF-11020LY RF-11020LY filter introduction: The leemin return filter is used for hydraulic system oil return filtration, filtering out metal part...

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

Product parameter:

Leemin Tank Mounted Hydraulic Suction Oil Filter TF-630X100f


Introduction of Leemin Tank Mounted Hydraulic Suction Oil Filter TF-630X100f

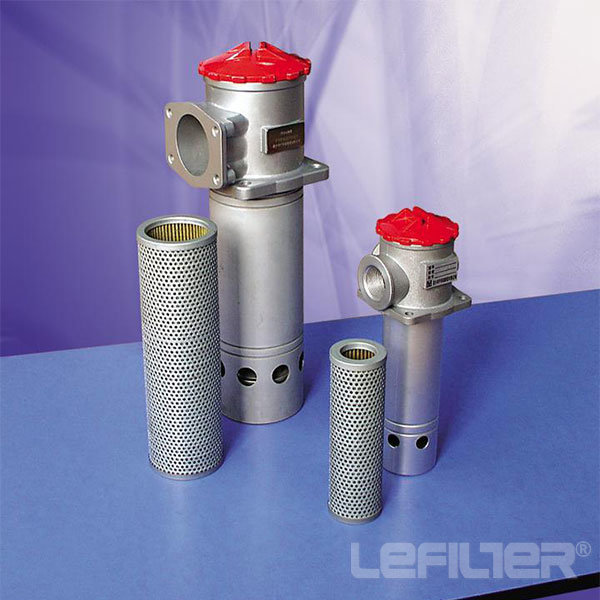

The TF series filters can be installed at the pump suction port , on the top, at the side or in the bottom of the tank , filter bowl is immersed below the level of the tank, the filter head is outside the tank .This filter has these features: novel design, convenient installation , high oil-passing capacity, and small resistance ,filter element cleaning and replacement is convenient .



Lefilter Production TF (LXZ) Series Suction Filter Model:

TF-25×80L-Y/C Suction Filter,TF-25*100L-Y/C Self-sealing Suction Filter,TF-25*180L-Y/C. Suction Filter,TF-40×80L-Y/ C oil pump suction filter, TF-40*100L-Y/C Dawn filter, TF-40*180L-Y/C hydraulic oil suction filter, TF-63×80L-Y/C hydraulic pump suction filter, TF- 63*100L-Y/C Suction Filter,TF-63*180L-Y/C Suction Filter,TF-100×80L-Y/C Dawn Hydraulic Suction Filter,TF-100*100L-Y/C Oil Filter, TF-100*180L-Y/C. Hydraulic oil filter.

TF-630×80F-Y/C Leemin oil  Suction Filter
TF-160×80L-Y/C Suction Filter, TF-160*100L-Y/C Dawn Suction Filter, TF-160*180L-Y/C Suction Filter, TF-250×80F-Y/ C oil pump filter,TF-250*100L-Y/C hydraulic filter,TF-250*180L-Y/C.hydraulic oil filter,TF-630×80F-Y/C Dawn oil filter,TF-630 *100L-Y/C filter,TF-630*180L-Y/C oil pump filter,TF-800×80F-Y/C hydraulic oil filter,TF-800*100L-Y/C oil filter, TF-800*180L-Y/C oil filter,TF-1000×80F-Y/C external suction filter,TF-1000*100L-Y/C oil pump suction inlet filter,TF-1000*180L-Y /C hydraulic oil filter, TF-1300×80F-Y/C filter, TF-1300*100L-Y/C oil filter, TF-1300*180L-Y/C hydraulic oil filter.

Leemin Tank Mounted Hydraulic Suction Oil Filter TF-630X100f  through the following test:
ISO 2941 Collapse & Burst Resistant
ISO 2942 Material Compatibility with Fluids
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing


Contact Information:
Bella / Overseas Manager
Email: sales06@xxldlq.com
Mob : +86 15565444640 (wechat,whats app)
Skype: bella1990815
