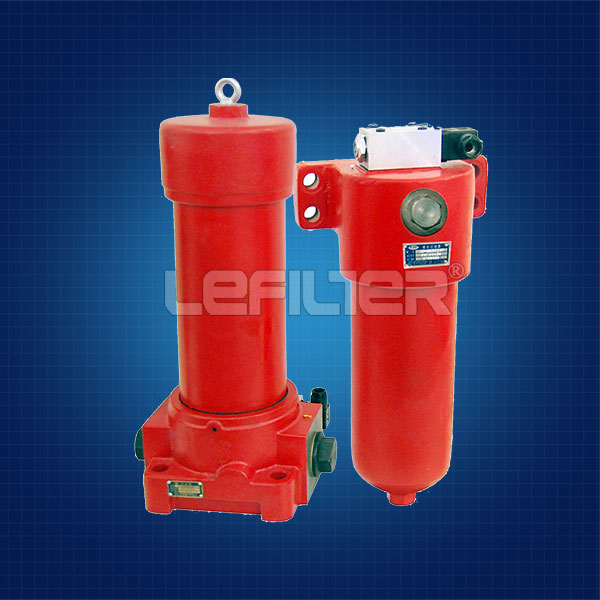

leemin ZU-H,QU-H high pressure line filter series

Introduction: Leemin HX-250x20 high pressure hydraulic oil filter element 1. In the hydraulic system, LEEMIN hydraulic oil filter is widely used to filter the solid part- icles and colloidal subs...

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

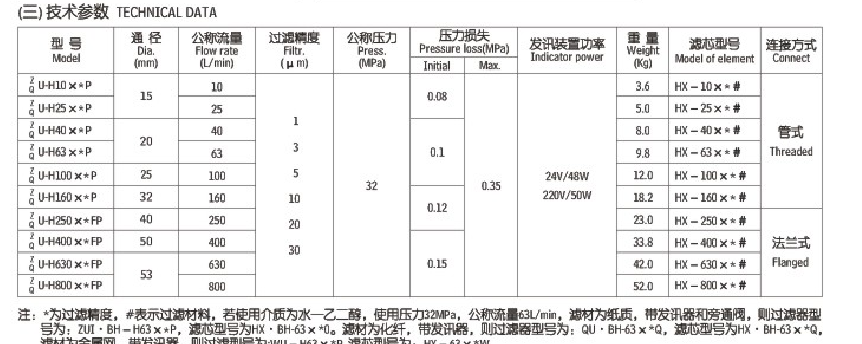

Product parameter:

leemin ZU-H,QU-H high pressure line filter series


1 leemin ZU-H,QU-H high pressure line filter series Introduction:

   The filter is installed on the pressure line of the hydraulic system to filter out mechanical impurities mixed in the hydraulic oil and colloidal, asphaltene, carbon residue, etc. generated by chemical changes of the hydraulic oil itself, thereby preventing the valve core from being stuck, The occurrence of a failure such as a choke slit and a damper of the orifice and an excessive wear of the hydraulic component.

     The filter has good filtering effect and high precision, but it is difficult to clean after clogging, and the filter element has to be replaced.

     The filter is provided with a differential pressure transmitter device. When the filter element is clogged and the pressure difference of the leaching port is 0.35 mpa, a switch signal is issued, and the filter element is replaced at this time to achieve the purpose of protecting the system.
2 leemin ZU-H,QU-H high pressure line filter series material description:

     The filter element is made of glass fiber,filter paper or wire mesh  and the filter material has the advantages of high filtration precision, large oil-passing capacity, small original pressure loss and large amount of dirt. The filtration precision is calibrated with absolute filtration precision, the filtration ratio is β3, 5, 10, 20≥200, and the filtration efficiency is n≥99.5%, which conforms to the ISO standard.


Leemin ZU-H,QU-H high pressure line filter series other models
ZU-H160×3P         ZU-H160×3BP        ZU-H160×3BDP          HX-160*3Q

ZU-H160×5P         ZU-H160×5FP        ZU-H160×5DFP          HX-160*5

ZU-H160×10P      ZU-H160×10BP       ZU-H160×10BDP         HX-160*10Q

ZU-H160×20P      ZU-H160×20BP       ZU-H160×20BDP         HX-160*20Q

ZU-H160×30P      ZU-H160×30BP       ZU-H160×30BDP         HX-160*30Q

ZU-H250×3P         ZU-H250×3BP        ZU-H250×3BDP          HX-250*3Q

ZU-H250×5P         ZU-H250×5FP        ZU-H250×5DFP          HX-250*5

ZU-H250×10P      ZU-H250×10BP       ZU-H250×10BDP         HX-250*10Q

ZU-H250×20P      ZU-H250×20BP       ZU-H250×20BDP         HX-250*20Q

ZU-H250×30P      ZU-H250×30BP       ZU-H250×30BDP         HX-250*30Q

ZU-H400×3P         ZU-H400×3BP        ZU-H400×3BDP          HX-400*3Q

ZU-H400×5P         ZU-H400×5FP        ZU-H400×5DFP          HX-400*5

ZU-H400×10P      ZU-H400×10BP       ZU-H400×10BDP         HX-400*10Q

ZU-H400×20P      ZU-H400×20BP       ZU-H400×20BDP         HX-400*20Q

ZU-H400×30P      ZU-H400×30BP       ZU-H400×30BDP         HX-400*30Q

ZU-H630×3P         ZU-H630×3BP        ZU-H630×3BDP          HX-630*3Q

ZU-H630×5P         ZU-H630×5FP        ZU-H630×5DFP          HX-630*5

ZU-H630×10P      ZU-H630×10BP       ZU-H630×10BDP         HX-630*10Q

ZU-H630×20P      ZU-H630×20BP       ZU-H630×20BDP         HX-630*20Q

ZU-H630×30P      ZU-H630×30BP       ZU-H630×30BDP         HX-630*30Q

ZU-H800×3P         ZU-H800×3BP        ZU-H800×3BDP          HX-800*3Q

ZU-H800×5P         ZU-H800×5FP        ZU-H800×5DFP          HX-800*5

ZU-H800×10P      ZU-H800×10BP       ZU-H800×10BDP         HX-800*10Q

ZU-H800×20P      ZU-H800×20BP       ZU-H800×20BDP         HX-800*20Q

ZU-H800×30P      ZU-H800×30BP       ZU-H800×30BDP         HX-800*30Q


Contact Information:
Bella / Overseas Manager
Email: sales06@xxldlq.com
Mob : +86 15565444640 (wechat,whats app)
Skype: bella1990815
