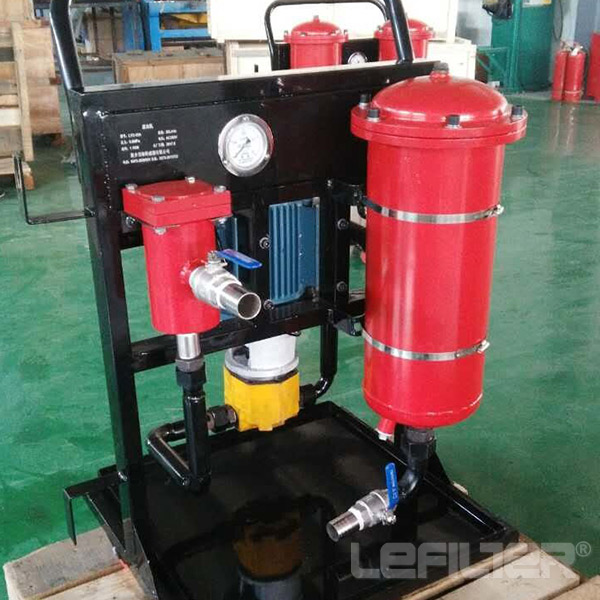

LYC-B Series high precision hydraulic oil filter cart
Introduction:Desc
We're here to help:
Easy ways to get the answers you need.
Product parameter:
Description of LYC-B Series high precision hydraulic oil filter cart
Special gear pump driven by motor features low noise,self priming,smooth running
Excess flow protection device installed to ensure the safety of systems
Using thermal relay to avoid the damage caused by motor over load
The coarse filter can not only protect the pump but also prolong the service life of main filter
Two-stage fine filters increase the dirt-holding capacity to achieve low level of contamination
It permits the use of different filter ratings of elements in each stage,to meet different requirements
The cover can be opened swiftly with out any tools, then the elements can be replaced conveniently.
The pressure gauge can continuously indicate conditions of running system and contamination levels.
Supply machine oil filter & engine oil filter & lubrication system filter element
Supply return oil filter & suction oil filter & pipeline oil filter & pump oil filter
Supply air compressor filter & pp filter & actived carbon filter & filter cart
Technical Data of LYC-B Series high precision hydraulic oil filter cart
|
Model |
|
LYC-32B-*/**/*** |
LYC-50B-*/**/*** |
LYC-63B-*/**/*** |
LYC-100B-*/**/*** |
|
Rated flow |
L/min |
32 |
50 |
63 |
100 |
|
Rated pressure |
Mpa |
0.6 |
|||
|
Initial pressure loss |
Mpa |
≤0.02 |
|||
|
Coarse filter rating |
μ |
100 |
|||
|
1-stage filter rating |
μ |
10,20,40, |
|||
|
2-stage filter rating |
μ |
3,5,10 |
|||
|
Motor Power |
Kw |
0.75 |
1.1 |
1.1 |
2.2 |
|
Voltage |
V |
AC380V (three phase) |
|||
|
Weight |
Kg |
90 |
100 |
108 |
150 |
|
Dimensions |
mm |
720X680X1020 |
720X680X1020 |
720X680X1020 |
740X740X1180 |
* stands for filter rating of second filter, e.g.003=3μ
**stands for applicable mediums,
Omit: normal hydraulic oil
BH: Water-glycol
V: Phosphate ester
D: Other applicable mediums
***stands for viscosity, ≤160cSt
