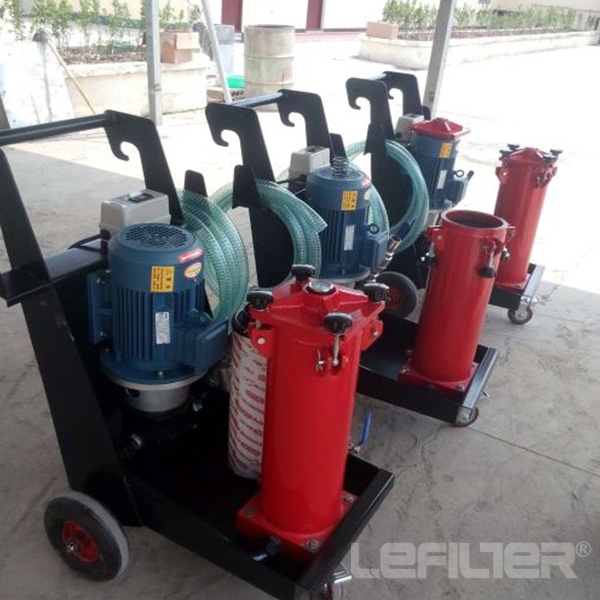

Xinxiang Hand push fine oil filter housing LUC-40

Introduction:Technical data ofLUC-40 oil filter 1.Model: LUCB-40 2.Flow rate: 40 L/min 3.Operating pressure: 0.6 Mpa 4.Viscosity range: 10-160 CSt 5.Initial pressure loss: less than 0.02 Mpa 6.Fluid temperature: 5-80 ℃ 7.First stage filter precision:

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

Technical data of  LUC-40 oil filter

1.Model: LUCB-40

2.Flow rate: 40 L/min

3.Operating pressure: 0.6 Mpa

4.Viscosity range: 10-160 CSt

5.Initial pressure loss: less than 0.02 Mpa

6.Fluid temperature: 5-80 ℃

7.First stage filter precision: 100 um

8.Second stage filter precision: 3, 5, 10, 20, 30 um

9.Voltage: AC 380V/3phase, AC220V/2phase

10.Power: 1.5 kw

11.Weight: 110 kg





OFU10P1N3B05B
OFU10P2N2B10B
OFU10P2N3B10B
OFU10V2N2B05B
OFU10P2N2B03B
OFU10P2N2B05B
OFU10P2N2B10B
OFU10P2N2B20B
OFU10P2N2B40B
OFU10P2N3B03B
OFU10P2N2B20B
OFU10P2N2B10B
OFU10P2N3B05B
OFU10P2N3B10B
OFU10P2N2B20B
OFU10P2N3B20B
OFU10P2N3B40B

Xinxiang Lifeierte Filter Corp.,Ltd (Stock code:837936)is specialized in manufacture of filters ,filter equipment,and environment system . Located in Xinxiang City-the center of Filtration in China.Lefilter has superior R & D team, professional technical team,experienced overseas sales team and perfect after-sales service system.We Lefilter people will try our best to satisfy customers' requirements.The develop philosophy of LEFILTER is “To purify environment,To serve society,To manage faithfully and To oyrsye excellence”!What’s more,there're advanced production line,test machine and R & D department.They also obtained certification like ISO9001, IQNet & CQM,SGS,CNEX etc.
