Continuous Waste Tire Plastic Pyrolysis Plant

Introduction: 1.Technical parameters OFContinuous Waste Tire Plastic Pyrolysis Plant NO. Name Parameter 1 The raw materials: waste tyres 2 Daily capacity: 10 ton/day 3 The size of reactor 2800*66...

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

Product parameter:

1.Technical parameters OF Continuous Waste Tire Plastic Pyrolysis Plant

NO.

Name

Parameter

1

The raw materials:

waste tyres

2

Daily capacity:

10 ton/day

3

The size of reactor

2800*6600mm 16mm thickness

4

Reactor material

Q345R

5

Average oil productivity:

30%-80%,

6

Average carbon productivity:

20%-35%

7

Plastic oil rate

30%-80%

8

pyrolysis time

6-8 hours

9

Discharge time

1.5 hour

10

Feeding time

3 hourS

11

Cooling time

3 hours

12.

Working pressure

Normal /slightly negative

13

Power

18 kw

14

Fuel

Coal. Wood, gas etc

15

Working area

1000 square meters

16

Total weight

35 000kgs

17

Reactor rotate speed

0.25-0.4/min

18

Noise

No less than 85DB

19.

Certificate

Ce,.iso,

20.

Carbon slag out

Automatic

2. Major parts OF Continuous Waste Tire Plastic Pyrolysis Plant :

reactor with base and cover
oil -gas separator
heavy oil tanl
cooling system
light oil tank
water sealing
dedust system
waste gas recycle system
slag out device
control board

Pyrolysis Plant for Plastic Waste Refining Without Bad Smell

3. Work flow OF Continuous Waste Tire Plastic Pyrolysis Plant

Pyrolysis Plant for Plastic Waste Refining Without Bad Smell
loading plastic into reactor
heating reactor
after heating , solid plastic converted to oil gas
oil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling system
after cooling ,light oil gas change to liquid oil and go into light oil tank
non-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuel
smoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.
4. oil rate
Pyrolysis Plant for Plastic Waste Refining Without Bad Smell

PE

50%-75%

PP

50%-75%

PS

50%-75%

ABS

40%

Leftovers of paper

Wet 15-20%, dry 60%

House garbage

35-50%

Plastic cable

80%

Plastic bag

50%

Submarine cable

75%

Rubber cable

35%

Sole

30%

Big tires

45-50%

Small tires

35-40%

PVC

Not suitable

PET

Not suitable

Big tyre

40-45%

Small tyre

30-35%

5.features OF Continuous Waste Tire Plastic Pyrolysis Plant:

1.)Environmental protection equipment: The complete set of unit produces no smoke and no smell
2.) High efficiency and good performance: the output capacity of pure raw is more than 80% . net oil yield over more than 40%
3. )The design of unit is reasonable and advanced :fatey and easy to use

Pyrolysis Plant for Plastic Waste Refining Without Bad Smell
6.oil parameter

project

Tire oil

Plastic oil

Water content

3%-5%

3%-5%

Sulfur content

0.3%-0.5%

0.3%

Density (g/ml)

0.86-0.94

0.84-0.94

Cetane number

30

30

Combustion value
(kcal)

9500

9000

Asphalt

≤0.5%

≤0.8%

Ash

≤1%

/

Impurity

1%-3%

/

Solidifying point( ºC)

-10

10

Flash point ( ºC)

30-40

20-35


8.other choice







Pyrolysis plant
(convert waste to fuel oil )

Type

Daily capacity

Used for

Final Product and usage

Batch type

5Ton
10ton
12ton
15ton



Waste tyre
Plastic
Rubber
Oil sludge
Oily waste
Others




Fuel oil
Used for heating boiler as furnace oil Or refined for distillation oil

Semi-continuous type

15Ton,
20Ton

Fully continuous type

20ton
30ton
60ton

Special type

20Ton
15ton

We mainly manufacture and export different kinds of waste recycling equipment, such as waste plastic recycling plants, waste tyre recycling equipment, biomass charcoal making machine, municipal solid waste sorting machine and so on.

Made by Xinxiang Lifeierte Filter Corp.,Ltd

More documents , Please Mail to sales02@xxldlq.com ,whatsApp ID 0086-13069352523, www.xxfilter.com


Adoptive standards:

1.Technical parameters OF Continuous Waste Tire Plastic Pyrolysis Plant

NO.

Name

Parameter

1

The raw materials:

waste tyres

2

Daily capacity:

10 ton/day

3

The size of reactor

2800*6600mm 16mm thickness

4

Reactor material

Q345R

5

Average oil productivity:

30%-80%,

6

Average carbon productivity:

20%-35%

7

Plastic oil rate

30%-80%

8

pyrolysis time

6-8 hours

9

Discharge time

1.5 hour

10

Feeding time

3 hourS

11

Cooling time

3 hours

12.

Working pressure

Normal /slightly negative

13

Power

18 kw

14

Fuel

Coal. Wood, gas etc

15

Working area

1000 square meters

16

Total weight

35 000kgs

17

Reactor rotate speed

0.25-0.4/min

18

Noise

No less than 85DB

19.

Certificate

Ce,.iso,

20.

Carbon slag out

Automatic

2. Major parts OF Continuous Waste Tire Plastic Pyrolysis Plant :

reactor with base and cover
oil -gas separator
heavy oil tanl
cooling system
light oil tank
water sealing
dedust system
waste gas recycle system
slag out device
control board

Pyrolysis Plant for Plastic Waste Refining Without Bad Smell

3. Work flow OF Continuous Waste Tire Plastic Pyrolysis Plant

Pyrolysis Plant for Plastic Waste Refining Without Bad Smell
loading plastic into reactor
heating reactor
after heating , solid plastic converted to oil gas
oil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling system
after cooling ,light oil gas change to liquid oil and go into light oil tank
non-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuel
smoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.
4. oil rate
Pyrolysis Plant for Plastic Waste Refining Without Bad Smell

PE

50%-75%

PP

50%-75%

PS

50%-75%

ABS

40%

Leftovers of paper

Wet 15-20%, dry 60%

House garbage

35-50%

Plastic cable

80%

Plastic bag

50%

Submarine cable

75%

Rubber cable

35%

Sole

30%

Big tires

45-50%

Small tires

35-40%

PVC

Not suitable

PET

Not suitable

Big tyre

40-45%

Small tyre

30-35%

5.features OF Continuous Waste Tire Plastic Pyrolysis Plant:

1.)Environmental protection equipment: The complete set of unit produces no smoke and no smell
2.) High efficiency and good performance: the output capacity of pure raw is more than 80% . net oil yield over more than 40%
3. )The design of unit is reasonable and advanced :fatey and easy to use

Pyrolysis Plant for Plastic Waste Refining Without Bad Smell
6.oil parameter

project

Tire oil

Plastic oil

Water content

3%-5%

3%-5%

Sulfur content

0.3%-0.5%

0.3%

Density (g/ml)

0.86-0.94

0.84-0.94

Cetane number

30

30

Combustion value
(kcal)

9500

9000

Asphalt

≤0.5%

≤0.8%

Ash

≤1%

/

Impurity

1%-3%

/

Solidifying point( ºC)

-10

10

Flash point ( ºC)

30-40

20-35


8.other choice







Pyrolysis plant
(convert waste to fuel oil )

Type

Daily capacity

Used for

Final Product and usage

Batch type

5Ton
10ton
12ton
15ton



Waste tyre
Plastic
Rubber
Oil sludge
Oily waste
Others




Fuel oil
Used for heating boiler as furnace oil Or refined for distillation oil

Semi-continuous type

15Ton,
20Ton

Fully continuous type

20ton
30ton
60ton

Special type

20Ton
15ton

We mainly manufacture and export different kinds of waste recycling equipment, such as waste plastic recycling plants, waste tyre recycling equipment, biomass charcoal making machine, municipal solid waste sorting machine and so on.

Made by Xinxiang Lifeierte Filter Corp.,Ltd

More documents , Please Mail to sales02@xxldlq.com ,whatsApp ID 0086-13069352523, www.xxfilter.com


Features:

1.Technical parameters OF Continuous Waste Tire Plastic Pyrolysis Plant

NO.

Name

Parameter

1

The raw materials:

waste tyres

2

Daily capacity:

10 ton/day

3

The size of reactor

2800*6600mm 16mm thickness

4

Reactor material

Q345R

5

Average oil productivity:

30%-80%,

6

Average carbon productivity:

20%-35%

7

Plastic oil rate

30%-80%

8

pyrolysis time

6-8 hours

9

Discharge time

1.5 hour

10

Feeding time

3 hourS

11

Cooling time

3 hours

12.

Working pressure

Normal /slightly negative

13

Power

18 kw

14

Fuel

Coal. Wood, gas etc

15

Working area

1000 square meters

16

Total weight

35 000kgs

17

Reactor rotate speed

0.25-0.4/min

18

Noise

No less than 85DB

19.

Certificate

Ce,.iso,

20.

Carbon slag out

Automatic

2. Major parts OF Continuous Waste Tire Plastic Pyrolysis Plant :

reactor with base and cover
oil -gas separator
heavy oil tanl
cooling system
light oil tank
water sealing
dedust system
waste gas recycle system
slag out device
control board

Pyrolysis Plant for Plastic Waste Refining Without Bad Smell

3. Work flow OF Continuous Waste Tire Plastic Pyrolysis Plant

Pyrolysis Plant for Plastic Waste Refining Without Bad Smell
loading plastic into reactor
heating reactor
after heating , solid plastic converted to oil gas
oil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling system
after cooling ,light oil gas change to liquid oil and go into light oil tank
non-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuel
smoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.
4. oil rate
Pyrolysis Plant for Plastic Waste Refining Without Bad Smell

PE

50%-75%

PP

50%-75%

PS

50%-75%

ABS

40%

Leftovers of paper

Wet 15-20%, dry 60%

House garbage

35-50%

Plastic cable

80%

Plastic bag

50%

Submarine cable

75%

Rubber cable

35%

Sole

30%

Big tires

45-50%

Small tires

35-40%

PVC

Not suitable

PET

Not suitable

Big tyre

40-45%

Small tyre

30-35%

5.features OF Continuous Waste Tire Plastic Pyrolysis Plant:

1.)Environmental protection equipment: The complete set of unit produces no smoke and no smell
2.) High efficiency and good performance: the output capacity of pure raw is more than 80% . net oil yield over more than 40%
3. )The design of unit is reasonable and advanced :fatey and easy to use

Pyrolysis Plant for Plastic Waste Refining Without Bad Smell
6.oil parameter

project

Tire oil

Plastic oil

Water content

3%-5%

3%-5%

Sulfur content

0.3%-0.5%

0.3%

Density (g/ml)

0.86-0.94

0.84-0.94

Cetane number

30

30

Combustion value
(kcal)

9500

9000

Asphalt

≤0.5%

≤0.8%

Ash

≤1%

/

Impurity

1%-3%

/

Solidifying point( ºC)

-10

10

Flash point ( ºC)

30-40

20-35


8.other choice







Pyrolysis plant
(convert waste to fuel oil )

Type

Daily capacity

Used for

Final Product and usage

Batch type

5Ton
10ton
12ton
15ton



Waste tyre
Plastic
Rubber
Oil sludge
Oily waste
Others




Fuel oil
Used for heating boiler as furnace oil Or refined for distillation oil

Semi-continuous type

15Ton,
20Ton

Fully continuous type

20ton
30ton
60ton

Special type

20Ton
15ton

We mainly manufacture and export different kinds of waste recycling equipment, such as waste plastic recycling plants, waste tyre recycling equipment, biomass charcoal making machine, municipal solid waste sorting machine and so on.

Made by Xinxiang Lifeierte Filter Corp.,Ltd

More documents , Please Mail to sales02@xxldlq.com ,whatsApp ID 0086-13069352523, www.xxfilter.com


Application:

1.Technical parameters OF Continuous Waste Tire Plastic Pyrolysis Plant

NO.

Name

Parameter

1

The raw materials:

waste tyres

2

Daily capacity:

10 ton/day

3

The size of reactor

2800*6600mm 16mm thickness

4

Reactor material

Q345R

5

Average oil productivity:

30%-80%,

6

Average carbon productivity:

20%-35%

7

Plastic oil rate

30%-80%

8

pyrolysis time

6-8 hours

9

Discharge time

1.5 hour

10

Feeding time

3 hourS

11

Cooling time

3 hours

12.

Working pressure

Normal /slightly negative

13

Power

18 kw

14

Fuel

Coal. Wood, gas etc

15

Working area

1000 square meters

16

Total weight

35 000kgs

17

Reactor rotate speed

0.25-0.4/min

18

Noise

No less than 85DB

19.

Certificate

Ce,.iso,

20.

Carbon slag out

Automatic

2. Major parts OF Continuous Waste Tire Plastic Pyrolysis Plant :

reactor with base and cover
oil -gas separator
heavy oil tanl
cooling system
light oil tank
water sealing
dedust system
waste gas recycle system
slag out device
control board

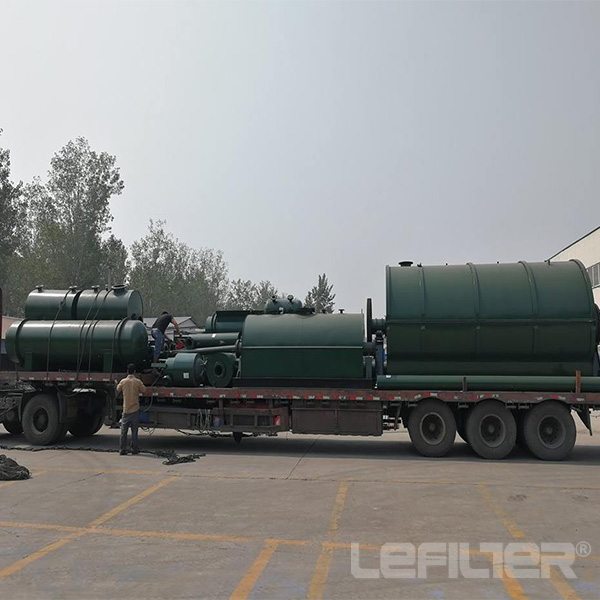

Pyrolysis Plant for Plastic Waste Refining Without Bad Smell

3. Work flow OF Continuous Waste Tire Plastic Pyrolysis Plant

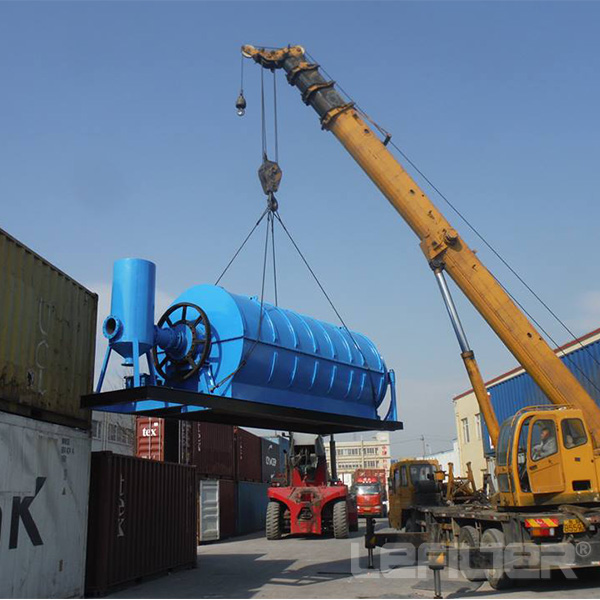

Pyrolysis Plant for Plastic Waste Refining Without Bad Smell
loading plastic into reactor
heating reactor
after heating , solid plastic converted to oil gas
oil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling system
after cooling ,light oil gas change to liquid oil and go into light oil tank
non-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuel
smoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.
4. oil rate
Pyrolysis Plant for Plastic Waste Refining Without Bad Smell

PE

50%-75%

PP

50%-75%

PS

50%-75%

ABS

40%

Leftovers of paper

Wet 15-20%, dry 60%

House garbage

35-50%

Plastic cable

80%

Plastic bag

50%

Submarine cable

75%

Rubber cable

35%

Sole

30%

Big tires

45-50%

Small tires

35-40%

PVC

Not suitable

PET

Not suitable

Big tyre

40-45%

Small tyre

30-35%

5.features OF Continuous Waste Tire Plastic Pyrolysis Plant:

1.)Environmental protection equipment: The complete set of unit produces no smoke and no smell
2.) High efficiency and good performance: the output capacity of pure raw is more than 80% . net oil yield over more than 40%
3. )The design of unit is reasonable and advanced :fatey and easy to use

Pyrolysis Plant for Plastic Waste Refining Without Bad Smell
6.oil parameter

project

Tire oil

Plastic oil

Water content

3%-5%

3%-5%

Sulfur content

0.3%-0.5%

0.3%

Density (g/ml)

0.86-0.94

0.84-0.94

Cetane number

30

30

Combustion value
(kcal)

9500

9000

Asphalt

≤0.5%

≤0.8%

Ash

≤1%

/

Impurity

1%-3%

/

Solidifying point( ºC)

-10

10

Flash point ( ºC)

30-40

20-35


8.other choice







Pyrolysis plant
(convert waste to fuel oil )

Type

Daily capacity

Used for

Final Product and usage

Batch type

5Ton
10ton
12ton
15ton



Waste tyre
Plastic
Rubber
Oil sludge
Oily waste
Others




Fuel oil
Used for heating boiler as furnace oil Or refined for distillation oil

Semi-continuous type

15Ton,
20Ton

Fully continuous type

20ton
30ton
60ton

Special type

20Ton
15ton

We mainly manufacture and export different kinds of waste recycling equipment, such as waste plastic recycling plants, waste tyre recycling equipment, biomass charcoal making machine, municipal solid waste sorting machine and so on.

Made by Xinxiang Lifeierte Filter Corp.,Ltd

More documents , Please Mail to sales02@xxldlq.com ,whatsApp ID 0086-13069352523, www.xxfilter.com


Please fill in your procurement needs and contact information
