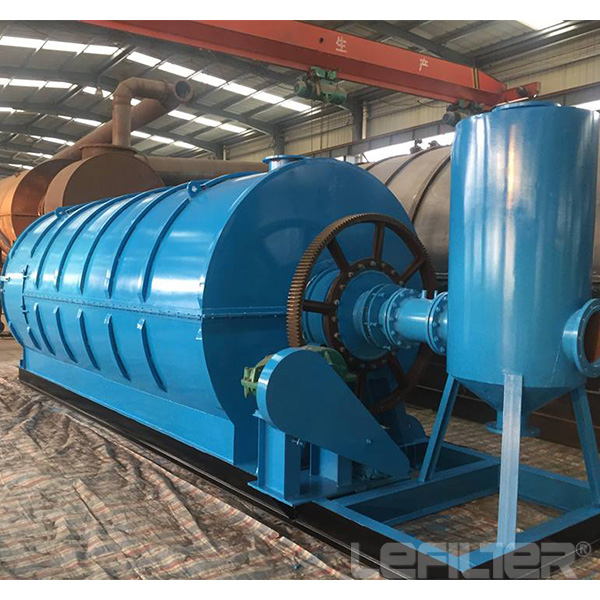

Pyrolysis Plastic Plant Recycling Waste to Oil

Introduction: 1.Technical parameters ofPyrolysis Plastic Plant Recycling Waste to Oil NO. Name Parameter 1 The raw materials: waste tyresplastic 2 Daily capacity: 12 ton/day 3 The size of reactor...

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

Product parameter:

1.Technical parameters of Pyrolysis Plastic Plant Recycling Waste to Oil

NO. Name Parameter
1 The raw materials: waste tyres,plastic
2 Daily capacity: 12 ton/day
3 The size of reactor 2800*6600mm 16mm thickness
4 Reactor material Q345R
5 Average oil productivity: 30%-80%,
6 pyrolysis time 6-8 hours
7 Discharge time 1.5 hour
8 Feeding time 3 hourS
9 Cooling time 3 hours
10 Working pressure Normal /slightly negative
11 Power 18 kw
12 Fuel Coal. Wood, gas etc
13 Working area 1000 square meters
14 Total weight 35 000kgs
15 Reactor rotate speed 0.25-0.4/min
16 Noise No less than 85DB
17. Plant working area 700-1000 square meters

2. Major parts of Pyrolysis Plastic Plant Recycling Waste to Oil :

reactor with base and cover
oil -gas separator
heavy oil tanl
cooling system
light oil tank
water sealing
dedust system
waste gas recycle system
slag out device
control board

3. Work flow

loading plastic into reactor
heating reactor
after heating , solid plastic converted to oil gas
oil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling system
after cooling ,light oil gas change to liquid oil and go into light oil tank
non-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuel
smoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.

4. oil rate

Item Raw material
Oil Output

Tires Steel Wire Tire 40%-55%
Nylon Tire ≈40%
Bicycle tire ≈35%
Paper Pulp Coarse Material ≈20%
Water Washing Material 23% -30%
PE Material ≈70%
Cable Skin PE Cable Skin ≈85%
PVC Cable Skin ≈25%
Pure Rubber Cable Skin ≈35%
Telephone Wire ≈50%
Life Garbage Pure Plastic Bags ≈50%
Coarse Material With Water ≈15%
Weaves & Handbags ≈60%
Shoes Black Rubber ≈35%
Sports Shoe's Sole 27%-33%
Gum Outsole ≈35%
Plastic` Pure PP ≥65%
Pure PE ≥70%
PO,PS ≈30%
ABS ≈40%
Others Common Rubber Pipe ≈30%


Carpets ≈35%


Aluminum Foil ≈35%


Car Glass Bead ≈50%


PP Beverage Bottle ≈50%

5.features of Pyrolysis Plastic Plant Recycling Waste to Oil:

1.)Environmental protection equipment: The complete set of unit produces
   no smoke and no smell
2.) High efficiency and good performance: the output capacity of pure raw
   is more than 80% . net oil yield over more than 40%
3. )The design of unit is reasonable and advanced :fatey and easy to use

6.oil parameter

project Tire oil Plastic oil
Water content 3%-5% 3%-5%
Sulfur content 0.3%-0.5% 0.3%
Density (g/ml) 0.86-0.94 0.84-0.94
Cetane number 30 30
Combustion value
(kcal)
9500 9000
Asphalt ≤0.5% ≤0.8%
Ash ≤1% /
Impurity 1%-3% /
Solidifying point( ºC) -10 10
Flash point ( ºC) 30-40 20-35


7. you may interest:






Pyrolysis plant
(convert waste to fuel oil )
Type Daily capacity Used for Final Product and usage
Batch type 5Ton
10ton
12ton
15ton


Waste tyre
Plastic
Rubber
Oil sludge
Oily waste
Others



Fuel oil
Used for heating boiler as furnace oil Or refined for distillation oil
Semi-continuous type 15Ton,
20Ton
Fully continuous type 20ton
30ton
60ton
Special type 20Ton
15ton



Type Daily capacity Used for Final Product and usage

Distillation plant
Refining fuel oil/waste oil diesel


Fully continuous type

5ton
10ton
15ton

Used motor oil
Used lube
Washing parts oil
Pyrolysis oil
Crude oil
Others



diesel for engine


Contact us
Made by Xinxiang Lifeierte Filter Corp.,Ltd
More documents , Please Mail to sales02@xxldlq.com ,whatsApp ID 0086-13069352523
