pulp & paper industry TAISEI KOGYO filter G-UL-10A-6M

Introduction:pulp paper industry TAISEI KOGYO filter G-UL-10A-6M Product Introduction Filter material: The use of high-quality glass fiber filter Filtration accuracy: from 1, 3, 6, 12, 25 ... ... m Filtering ratio: X greater or equal to 100 Structural s

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

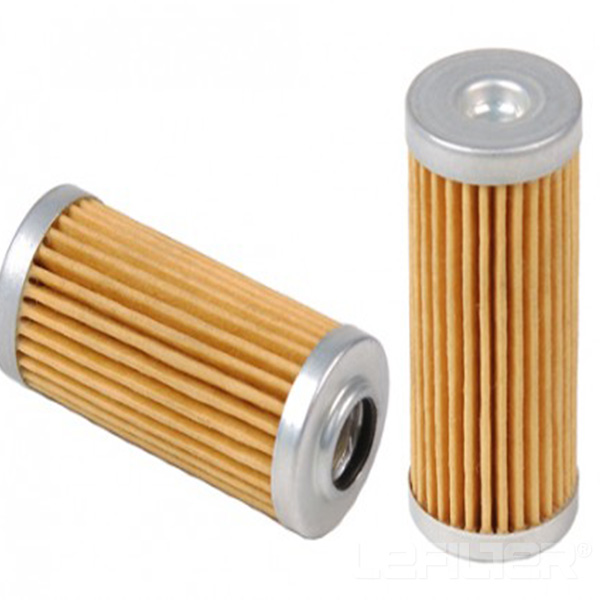

pulp & paper industry TAISEI KOGYO filter G-UL-10A-6M


Product Introduction

Filter material: The use of high-quality glass fiber filter

Filtration accuracy: from 1, 3, 6, 12, 25 ... ... μm Filtering ratio: X greater or equal to 100

Structural strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa

Use: for hydraulic, lubrication system, pressure oil filter, to filter out pollutants in the system to ensure the normal operation of the system


1, Hydraulic Engineering Systems Industry;Application:
2, Mining and Metallurgical Equipment Industry;
3, Construction, engineering machinery industry;
4, Machine Tool Industry;
5, Agricultural machinery industry;
6, Plastic machinery industry;
7, Petrochemical industry;
8, Ship and marine engineering equipment industry.


Technical data&Performances:

Filter media:

glass fiber, or stainless steel wire mesh

quality and performance:

be guaranteed as original

Nominal filtration rating:

0.01 ~ 1000Micron

Operating pressure:

21bar-210bar

O-ring material:

Viton, NBR

Filtration efficiency:

99.99%

Temperature Range:

-4°F~212°F

Working lifetime:

8~12 months

Place of origin:

Henan, China.

Print and label:

Part no. On the End Caps

Seals:

nitrile seals, fluorocarbon seals for corrosive fluids.

Package:

Neutral Paper carton

MOQ:

1 pieces/units/each







P-G-MVF-03 -100W  P-G-MVF-08 -10U  P-G-MVF-16 -150W

P-G-MVF-03 -10M   P-G-MVF-08 -10UW  P-G-MVF-16 -200W

P-G-MVF-03 -10U  P-G-MVF-08 -150W  P-G-MVF-16 -20U

P-G-MVF-03 -10UW   P-G-MVF-08 -200W  P-G-MVF-16 -20UW

P-G-MVF-03 -150W  P-G-MVF-08 -20U  P-G-MVF-16 -3M

P-G-MVF-03 -200W   P-G-MVF-08 -20UW  P-G-MVF-16 -40U

P-G-MVF-03 -20U  P-G-MVF-08 -3M   P-G-MVF-16 -40UW

P-G-MVF-03 -20UW   P-G-MVF-08 -40U   P-G-MVF-16 -50UW

P-G-MVF-03 -3M   P-G-MVF-08 -40UW   P-G-MVF-16 -5UW

P-G-MVF-03 -40U   P-G-MVF-08 -50UW  P-G-MVF-16 -60W

P-G-MVF-03 -40UW  P-G-MVF-08 -5UW  P-G-MVF-16 -6M

P-G-MVF-03 -50UW   P-G-MVF-08 -60W   P-G-MVF-20-100W

P-G-MVF-03 -5UW   P-G-MVF-08 -6M  P-G-MVF-20-10M

P-G-MVF-03 -60W   P-G-MVF-10 -100W   P-G-MVF-20-10U


Xinxiang Lifeierte Filter Corp.,Ltd (Stock code:837936)is specialized in manufacture of filters ,filter equipment,and environment system . Located in Xinxiang City-the center of Filtration in China.Lefilter has superior R & D team, professional technical team,experienced overseas sales team and perfect after-sales service system.We Lefilter people will try our best to satisfy customers' requirements.The develop philosophy of LEFILTER is “To purify environment,To serve society,To manage faithfully and To oyrsye excellence”!What’s more,there're advanced production line,test machine and R & D department.They also obtained certification like ISO9001, IQNet & CQM,SGS,CNEX etc.
