design bag house dust collector system
Introduction:Product Desc
We're here to help:
Easy ways to get the answers you need.
Product parameter:

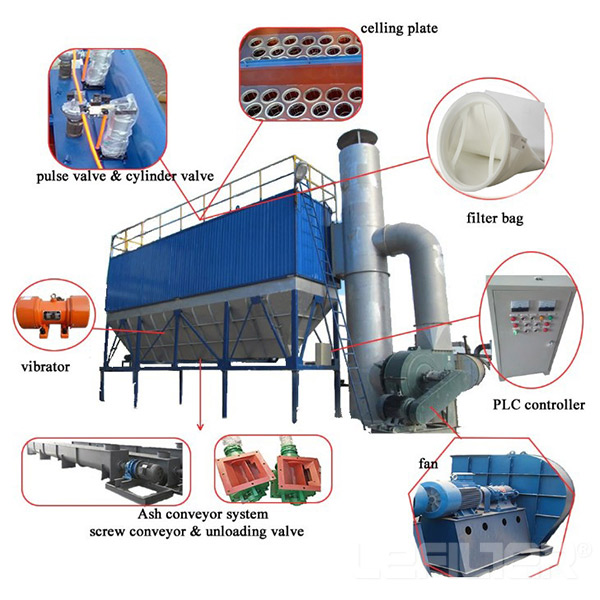

Descriptions of bag house dust collector system:
Baghouse dust collectors are using needle felt bags for filtering and reverse pulse compressed air to clean filters. After the dust loading gas inters the filter chamber, the dusts are filtered on the surface of bags, and clean air is discharged from the top of the filter bags. When the differential pressure across the bags reaches a certain value, the compressed air will be blown into the center of bags through nozzles, leading the surrounding air into the bags. The expansion force inside the bags will blow off the dusts on the bag surfaces. The bags restore their pressure drop and recover the filtration performance.
Application of bag house dust collector system:
Cement, Woodworking,Chemical, Foundry, Furnace, Grain, Lime, Asphalt, Rubber, Glass, Plastic, Mineral, Ceramics, Stone crushing, Battery, Pigment, Abrasive blastingSpecifications of bag house dust collector system:
| Model | Bag Size | Bags | Filter Area | Airflow |
| MC20 | Ф130MM * L: 2000MM | 100 | 81 M2 | 9600CMH |
| MC25 | Ф130MM * L:2500MM | 100 | 102 M2 | 12000CMH |
| MC30 | Ф130MM * L:3000MM | 100 | 122 M2 | 14400CMH |
| MC35 | Ф130MM * L:3500MM | 100 | 142 M2 | 16800CMH |
| MC40 | Ф130MM * L:4000MM | 100 | 162 M2 | 19200CMH |
| MC45 | Ф130MM * L:4500MM | 100 | 183 M2 | 21600CMH |
