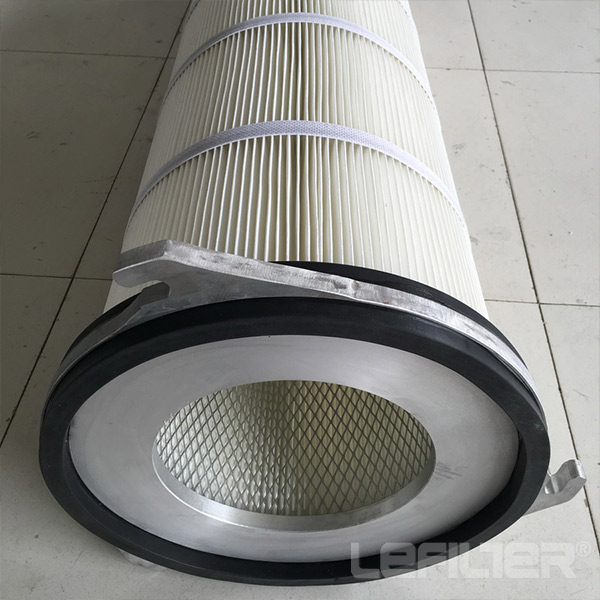

Three lugs pleated filter cartridge
Introduction:Details of Three lugs pleated filter cartridge Outsidediameter Insidediameter Length Filterarea(m2) 324mm 213mm 660mm 21m2 352mm 241mm 660mm 23m2 324mm 213mm 750mm 26m2 324mm 213mm 880mm 27m2 324mm 213mm 1000mm 28m2 Properties and features
We're here to help:
Easy ways to get the answers you need.
Product parameter:
Details of Three lugs pleated filter cartridge
Outside diameter | Inside diameter | Length | Filter area(m2) |
Φ324mm | Φ213mm | 660mm | 21m2 |
Φ352mm | Φ241mm | 660mm | 23m2 |
Φ324mm | Φ213mm | 750mm | 26m2 |
Φ324mm | Φ213mm | 880mm | 27m2 |
Φ324mm | Φ213mm | 1000mm | 28m2 |
Properties and features
2-1)Suitable for the filtration of fine dust type in gas turbine, compressor, sand blasting, tobacco roll connection, fly ash,
floating dust filtration.
2-2)Imported special air filter dust composite wallpaper to ensure the high filtering effect
2-3)Wide fold design, large filter area
2-4)Electroplate galvanized end cap, no rust
2-5)Electric galvanized diamond mesh center frame, high opening hole rate
2-6)Specially chlorine rubber gasket to ensure airtight sealing.
2-7)Applicable temperature: ≤ 80℃
Made by Xinxiang Lifeierte Filter Corp.,Ltd
