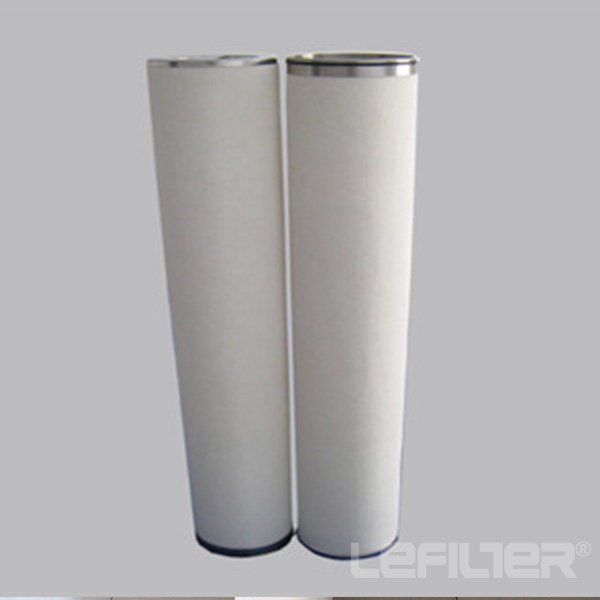

P-all Liquid/Gas Coalescer filter element CS604LGH13
Introduction:Technical Information Nominal Cartridge Dimensions Part Number CS604LGH13 (single open end) CS604LGBH13* (single open end) CS604LGDH13 (double open end) CS604LGBDH13* (double open end) Outer Diameter 152.4 mm (6) Length 1016 mm (40) Surface
We're here to help:
Easy ways to get the answers you need.
Product parameter:
Technical Information
| Nominal Cartridge Dimensions | |
| Part Number |
CS604LGH13 (single open end) CS604LGBH13* (single open end) CS604LGDH13 (double open end) CS604LGBDH13* (double open end) |
| Outer Diameter | 152.4 mm (6") |
| Length | 1016 mm (40") |
| Surface Area | 2.6m2 (28 ft.2) |
* Amine compatible
| Performance Specification | |
| Solid Removal Rating* | 99.7% @ ≥ 0.3μm |
| Liquid Removal Ratings |
.01ppm downstream liquids (LASE)** 1 ppb downstream liquids (CAGI)*** 99.999% efficient at 0.3 micron (DOP)**** |
| Temperature Rating |
82 ºC (180 ºF) 65 ºC (150 ºF) with water |
| Clean and Saturated Pressure Drop | Sized to your specification |
* Per sodium chloride challenge test
** Per the P-all Liquid Aerosol Separation Efficiency (LASE) Test
*** Per the modified ANSI/CAGI-400-1999 test procedure
**** Per the Di-Octyl Phthalate (DOP) test using a monodisperse 0.3 micron aerosol
Materials of Construction
- Resin bonded glass fiber SepraSol Plus coalescer media designed in a pack to handle large quantities of liquid
- Polymeric outer drainage layer to prevent liquid re-entrainment
- Oleophobic/hydrophobic treatment to improve liquid drainage, protect from liquid slugs and minimize saturated pressure drop
- Stainless steel metal support
