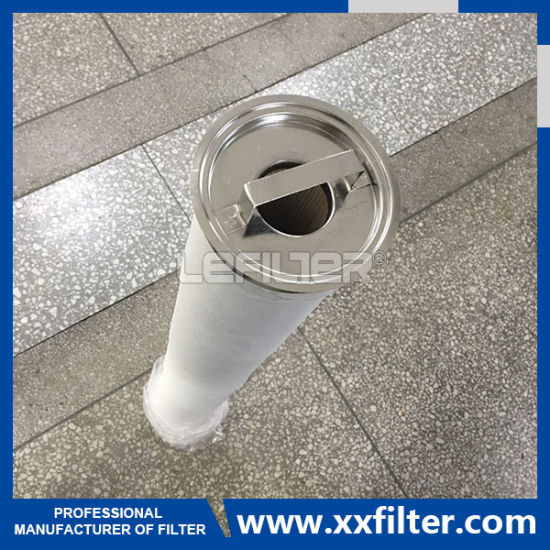

CS604LGH13 for P-all replacement Liquid/Gas Coalescer
Introduction:Technical Information Nominal Cartridge Dimensions Part Number CS604LGH13 (single open end) CS604LGBH13* (single open end) CS604LGDH13 (double open end) CS604LGBDH13* (double open end) Outer Diameter 152.4 mm (6) Length 1016 mm (40) Surface
We're here to help:
Easy ways to get the answers you need.
Product parameter:
Technical Information
|
|
|
|
Nominal Cartridge Dimensions |
|
|
Part Number |
CS604LGH13 (single open end) |
|
Outer Diameter |
152.4 mm (6") |
|
Length |
1016 mm (40") |
|
Surface Area |
2.6m2 (28 ft.2) |
|
|
|
* Amine compatible
|
|
|
|
Performance Specification |
|
|
Solid Removal Rating* |
99.7% @ ≥ 0.3μm |
|
Liquid Removal Ratings |
.01ppm downstream liquids (LASE)** |
|
Temperature Rating |
82 ºC (180 ºF) |
|
Clean and Saturated Pressure Drop |
Sized to your specification |
|
|
|
* Per sodium chloride challenge test
** Per the P-all Liquid Aerosol Separation Efficiency (LASE) Test
*** Per the modified ANSI/CAGI-400-1999 test procedure
**** Per the Di-Octyl Phthalate (DOP) test using a monodisperse 0.3 micron aerosol
Materials of Construction
-
Resin bonded glass fiber SepraSol Plus coalescer media designed in a pack to handle large quantities of liquid
-
Polymeric outer drainage layer to prevent liquid re-entrainment
-
Oleophobic/hydrophobic treatment to improve liquid drainage, protect from liquid slugs and minimize saturated pressure drop
-
Stainless steel metal support
Xinxiang Lifeierte Filter Corp.,Ltd （Stock code：837936）is specialized in manufacture of filters ,filter equipment,and environment system . Located in Xinxiang City-the center of Filtration in China.Lefilter has superior R & D team, professional technical team,experienced overseas sales team and perfect after-sales service system.We Lefilter people will try our best to satisfy customers' requirements.The develop philosophy of LEFILTER is “To purify environment,To serve society,To manage faithfully and To oyrsye excellence”!What’s more,there're advanced production line,test machine and R & D department.They also obtained certification like ISO9001, IQNet & CQM,SGS,CNEX etc.
