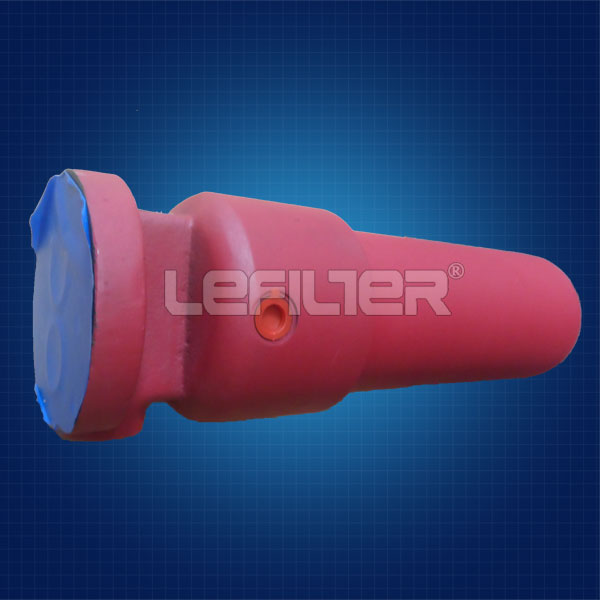

LEFILTER Oil Filters High Pressure Dfpbhhc660qd20c1LED

LEFILTER Oil Filters High Pressure Dfpbhhc660qd20c1LED----Technical Data:

1. Construction materials:
    Head---ductile iron
    Bowl---steel
    Housing(1320)---steel
    Cap(660 & 1320 ver. 2)---ductile iron
2. Flow capacity: 30 ~ 1320 L/min
3. Max operating pressure: 6000 psi (420 bar)
4. Fluid temp. range: -30 to 121 ºC

LEFILTER Oil Filters High Pressure Dfpbhhc660qd20c1LED----Applications

In hydraulic,lubrication system,this kind of filter can be used to filtrate solid particles,colloidal substances and other pollutants in the working medium,in addition,they can effiectively control the pollution degrees of the working medium to ensure the normal operation of the system.

LEFILTER Oil Filters High Pressure Dfpbhhc660qd20c1LED----Advantages

1.Greater system availablity from reliable filtration

2.Long element service life through highest dirt holding capacities

3.Higher operational dependablity through outstanding cleanliness classes

4.Reduced maintenance coststhrough long replacement intervals

5.Low disposal costs through weight reduction

6.Greater safety through high differential pressure stability

7.Lower price than original and the same specifications and fuction as origina


FEATURES:

Filter finenesses: 1 to 200 µm
Filter materials: glass fiber, solid plastic, wire mesh, paper, metal fleece, water-absorbent material
Absolute or nominal filtration, depending on the filter material
Permissible differential pressures: 20 bar
Operating temperature: up to 100°C
Compatible with all conventional operating media
With bypass valve (optionally without)

Relation LEFILTER filter element designs:


oil filter for oil burner/LEFILTER system hydraulic oil filter

0060D020BN4HC Replacement cartridge oil filter LEFILTER

Our products through the following test:

ISO 2941 Collapse & Burst Resistant
ISO 2942 Material Compatibility with Fluids
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing
