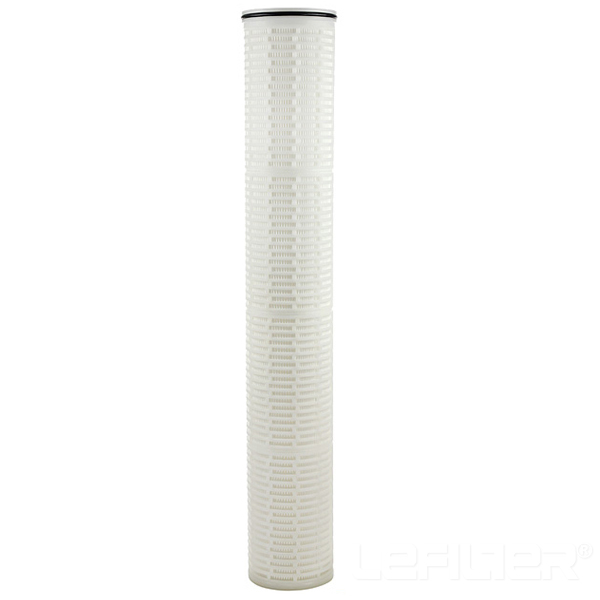

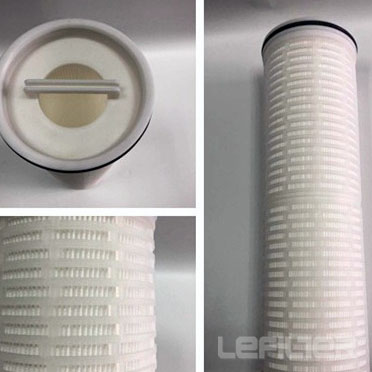

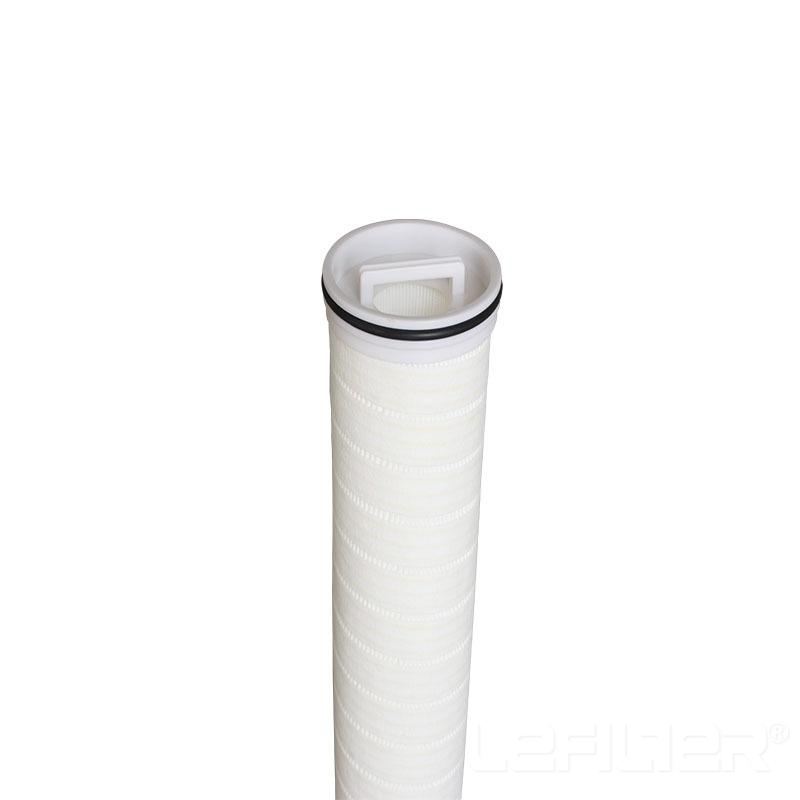

Replacement HFU620UY060J High Flow Water Filter Cartridge
Introduction:Product parameter: Specifications ofP-all Replacement High Flow Water Filter Cartridge Type: P-all Water filter Use:Household Pre-Filtration Place of Origin:Henan China (Mainland) Model Number:HFU620UY060J Brand:P-all Media:pp Micron:15um Max
We're here to help:
Easy ways to get the answers you need.
Product parameter:
The introduction of HFU620UY060J High Flow Water Filter Cartridge
The Ultipleat High Flow filter is suited for applications such as cooling water, pre-RO, and resin
trap filtration. It is a large diameter, coreless, single open-ended, pleated cartridge with an inside to outside flow pattern. The filters patented crescentshaped pleat geometry, combined with itslarge 6"/ 152 mm diameter, reduces the number of filters and size of housing required. The cartridge is also available in a wide range of P-all media types for other applications.
The specific of P-all high flow water filter element
Type: P-all Water filter
Use:Household Pre-Filtration
Place of Origin:Henan, China (Mainland)
Model Number:HFU620UY060J
Brand:P-all
Media:pp
Micron:20um
Max temperature:60degree
Shape:Filter Element for Hydraulic
Color:White
Certification:ISO9001:2000
Service Life:8-12months
Merit:remove metal impurity
The benefits of water filter:
· Up to 50% smaller filter system possible
· Up to forty times fewer elements to change out
· Very high flow rates per filter cartridge, up to 500 gpm / 114 m3/hr
· Available in 20"/ 508 mm, 40" / 1016 mm and 60" / 1524 mm lengths
· Coreless construction to minimize waste disposal
· Absolute rated filter medium for reproducible performance
· Inside to outside flow configuration - all contaminants held within the single open ended filter
Materials of Construction
· Filter Medium:
Pleated polypropylene depth structure
· Support/Drainage:
Polypropylene
· Endcaps:
Glass filled polypropylene
· O-ring:
Ethylene propylene
Filtration rating:
· 3.2 µm, 4.5 µm, 10 µm, 20 µm, 40 µm, 70 µm, 100 µm
P-all water filter configuration:
· Single open end, 6" / 152 mm diameter filter
· Maximum Operating Temperature:
180°F / 82°C
· Maximum Differential Pressure1(nominal inside to outside flow):
50 psid at 180°F / 3.4 bar at 82°C
P-all high flow filter cartridge
P-all high flow filter element
P-all water filter element
Ultipleat High Flow Particulate Filter HFU640UY045H
