High Flow Filter Cartridge HFU620UY100H13
Introduction:Product parameter: Specifications ofP-all Replacement High Flow Water Filter Cartridge Type: P-all Water filter Use:Household Pre-Filtration Place of Origin:Henan China (Mainland) Brand Name:P-all Model Number:HFU620UY100 Media:pp Micron:15um
We're here to help:
Easy ways to get the answers you need.
Product parameter:
High flow water filter introduction:

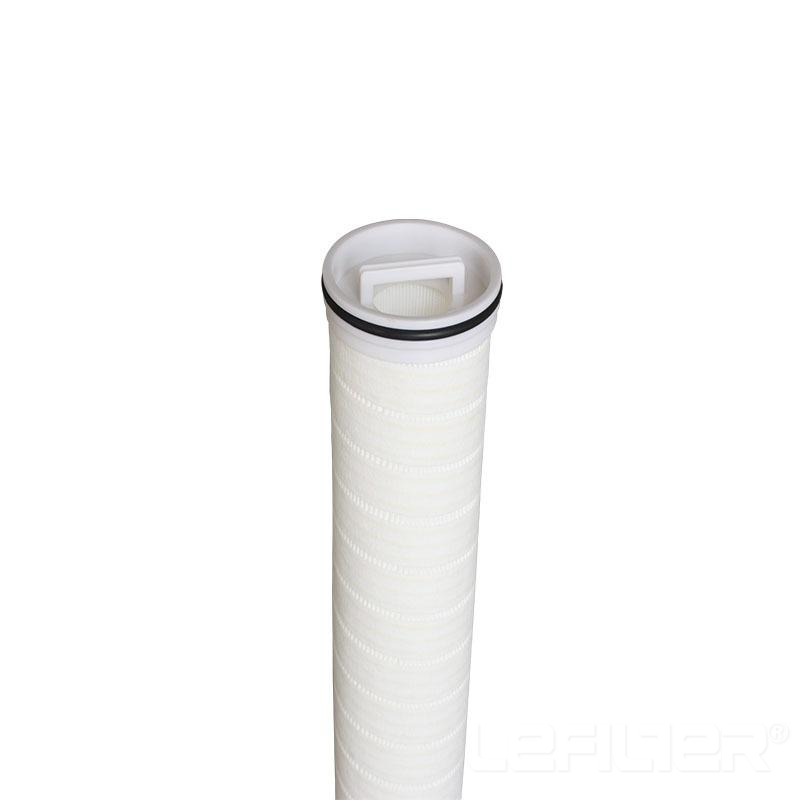

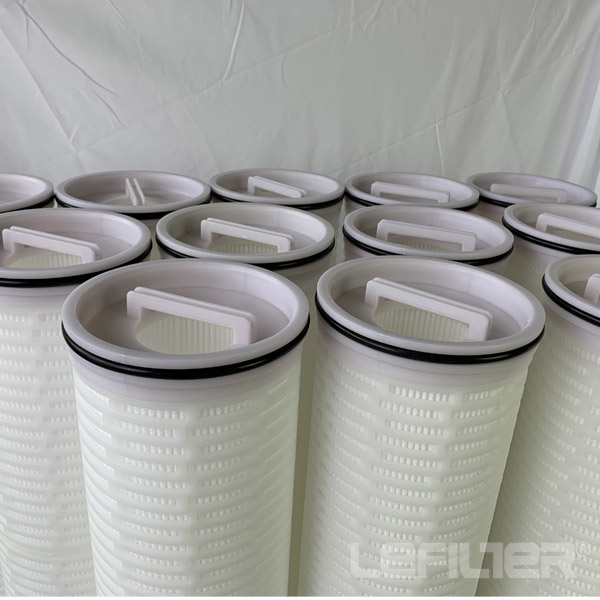

high flow filters have a big diameter of 6 inches/152mm, but no center support frame. Only one end of the filter is open and its flow manner of filtering fluid is from inside to outside. The big diameter of filter elements increases effective filtering areas, and greatly reduces the amounts of filter element and the size of its body case. Due to its large flow and long life, P-all large flow filter can lower investment and human cost in many applications.
High flow water filter specification:
high flow water filter cartridge
|
Initial pressure difference |
0.02MPa |
|
Replacement pressure drop |
2.4Bar |
|
Maximum allowable pressure drop |
3.4Bar |
|
Maximum operating temperatur |
80℃ |
|
Filtration direction |
From inside to outside, without internal skeleton |
|
Accuracy level |
1.5μm, 3μm, 4.5μm, 10μm, 20μm, 30μm, 70μm |
|
Filter material |
polypropylene glass fibe |
|
Sealing materials |
ethylene propylene rubber, rubber, fluorine rubber, neoprene |
|
Outer diamete |
6 inches (152.5mm) |
|
Length |
20 inches (508mm), 40 inches (1016mm), 60 inches (1524mm) |
Large flow rate water filter Application field
1. Food industry: filtration of alcohol, beverages and drinking water.
2. Electronic industry: pre-filtration of pure water and ultra-pure water.
3. Petroleum and chemical industry: filtration of various organic solvents, acids, lye, oilfield water injection filtration.
4. Ultrafiltration equipment RO security filtration seawater desalination pretreatment
5. Power plant condensate filtration
6. Water filtration in the biopharmaceutical industry
7. Paint, coating, petrochemical industry
8. Microelectronics film fiber resin
