Big Flow water Filter Cartridge HFU660UY045H13W

High flow water filter profile:

The high-flow filter element has a large diameter of 152mm（millimeter） and an opening at one end. The large diameter design of the filter element increases the effective filter area and can greatly reduce the number of filter elements. In many applications, due to the large flow rate and long filter life, the use cost can be reduced.

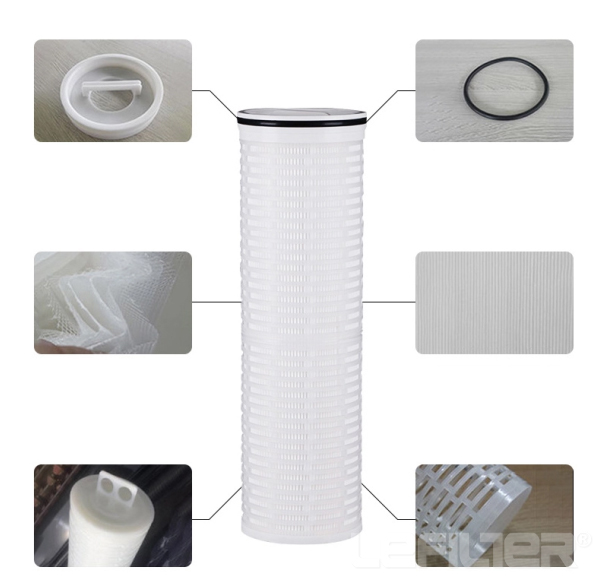

The filter element filter body is generally composed of five layers, from the outside to the inside respectively: nylon mesh (outer skeleton) → → non-woven fabric → → PP membrane (glass fiber) → → non-woven fabric → → cloth net (nylon net / inner skeleton) )

Big flow water filter specifiction:

Filter material: folded deep polypropylene, folded glass fiber, melt blown polypropylene
Support material: polypropylene
End cap material: reinforced polypropylene
Inner/outer frame material: polypropylene
Maximum working temperature: Folded glass fiber: 121℃ Folded polypropylene: 82℃ Melt blown polypropylene: 65℃
 Processing accuracy level: 1,4.5,6,10,20,40,70,100um
Filter element outer diameter: 6.3 inches (160mm) inner diameter: 3.5 inches (89mm) length: 20 inches (508mm) 40 inches (1016mm) 60 inches (1524mm)
Sealing ring material: ethylene propylene rubber, nitrile rubber (O type, U type)

Application fields

RO cartridge filtration, desalination pretreatment

The filtration of Power plant condensate water

Raw material drug, solvents and water filtration in biopharmaceutical industry

Filtration for bottled water, liquid glucose, edible oil, juice, soft drink and milk

Paints, coatings, petrochemical

Microelectronics, films, fibers, resins
