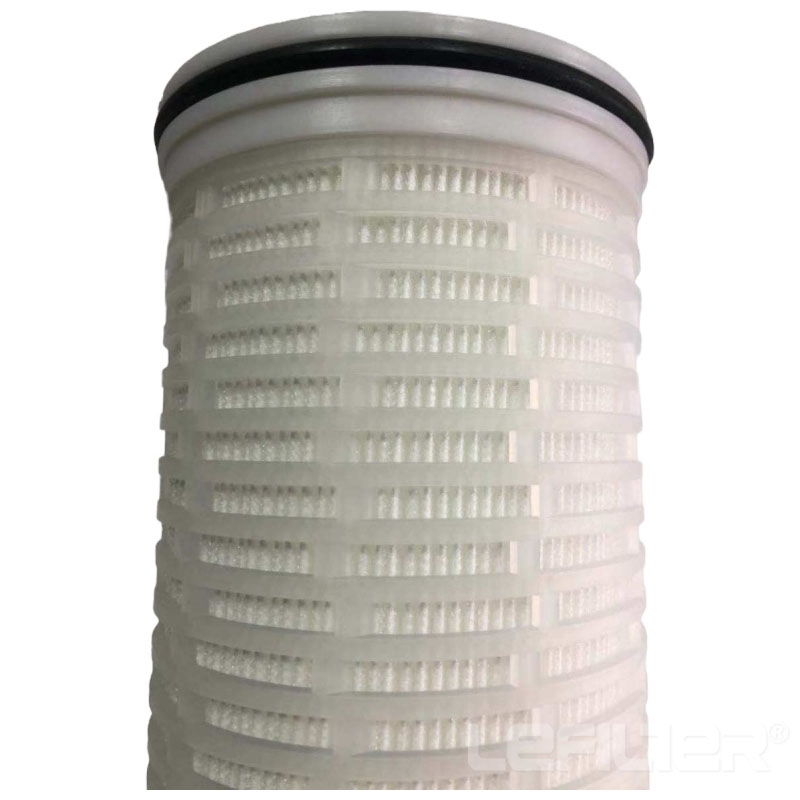

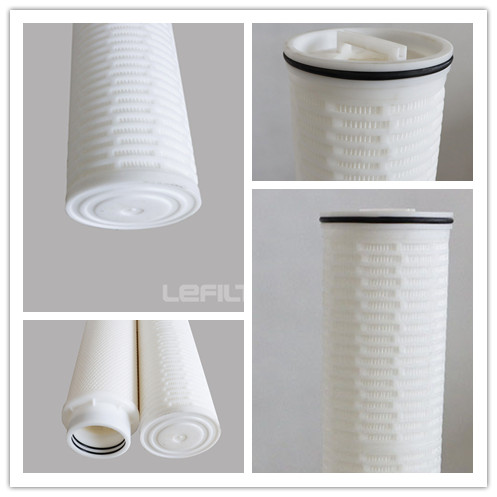

P-all High Flow water Filter Cartridge HFU640GF040H
Introduction:Product parameter: Specifications ofP-all Replacement High Flow Water Filter Cartridge Type: P-all Water filter Use:Household Pre-Filtration Place of Origin:Henan China (Mainland) Brand Name:P-all Model Number:HFU640GF020H Media:pp Micron:15um
We're here to help:
Easy ways to get the answers you need.
Product parameter:
The introduction of high water filter HFU640GF040H:
Large flow filter element, also known as large flow water filter element, large flow filter element, large flow filter element, large flow pleated filter element, etc., usually adopts PP inner and outer skeletons, and the filter layer is made of protective nets, non-woven fabrics, filter membranes and other materials The composition can be adapted to most water treatment conditions.
The parameter of high flow water filter:
|
Common size |
20’’（about 508mm） |
Can also be based on |
|
40’’（about 1016mm） |
||
|
60’’（about 1524mm） |
||
|
Common precision |
1μm、3μm、10μm、 |
Can be adjusted at any time according to working conditions |
|
Filter area |
20’’--4-5㎡ |
|
|
40’’--8-10㎡ |
||
|
60’’--12-15㎡ |
||
|
Single filter flow |
20’’--10m³/H |
5μm Under precision conditions |
|
40’’--20m³/H |
||
|
60’’--30m³/H |
||
|
Filter form |
From In to out |
Different forms of filtration have different water inlet directions |
|
From out to In |
||
|
Initial pressure difference |
0.02MPa |
|
|
Replace the pressure drop |
0.25Mpa |
|
|
Maximum pressure drop |
0.35Mpa |
|
|
Maximum use temperature |
80℃ |
|
Structural characteristics of large flow filter element:
1.The combination of surface filtration and deep filtration can greatly reduce the number of filter elements compared with ordinary filter elements, and significantly reduce the size of the matching housing, reduce the number of filter element replacements and unnecessary losses during use, and improve work efficiency.
2.The foldable design increases the filter area and makes its pressure drop significantly lower than the ordinary filter element; the large-diameter design increases the dirt holding capacity, prolongs the service life, and reduces the production cost.
3.The convenient handle design significantly reduces the time to replace the filter element and makes it easy and portable to replace the filter element; the design of the sealed interface reduces the risk of bypass flow and ensures the sealing and reliability of the filter.
