P-all High Flow water Filter Cartridge HFU640GF040H13
Introduction:Product parameter: Specifications ofP-all Replacement High Flow Water Filter Cartridge Type: P-all Water filter Use:Household Pre-Filtration Place of Origin:Henan China (Mainland) Brand Name:P-all Model Number:HFU640GF020H13 Media:pp Micron:15
We're here to help:
Easy ways to get the answers you need.
Product parameter:
Analysis of the structure of the large flow filter element

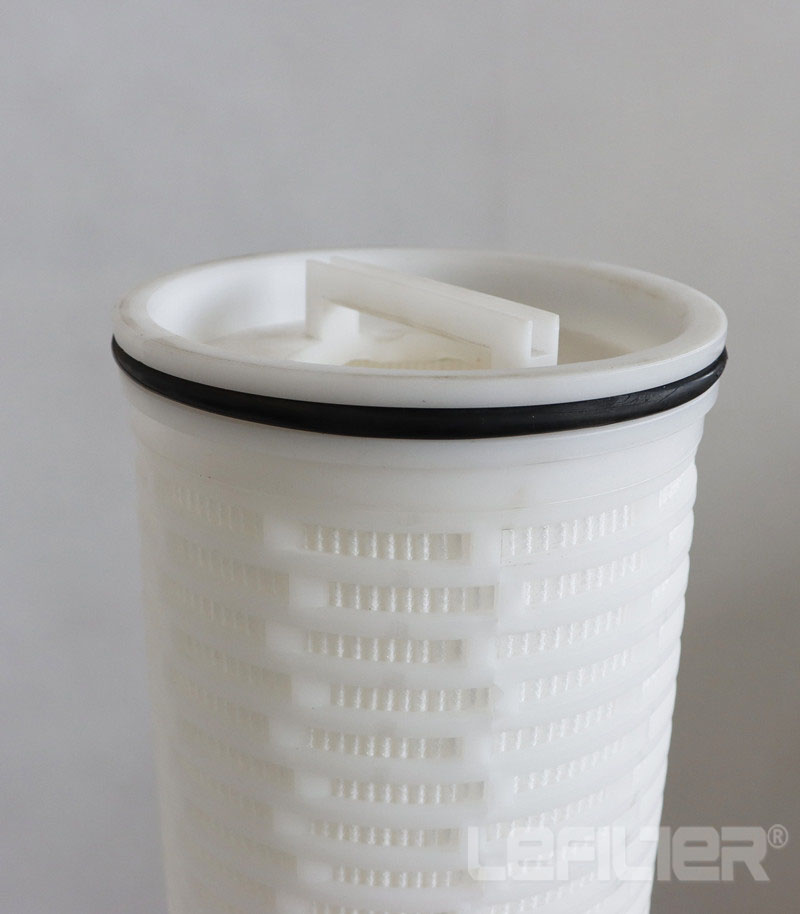

The detail of high flow water filter cartridge:

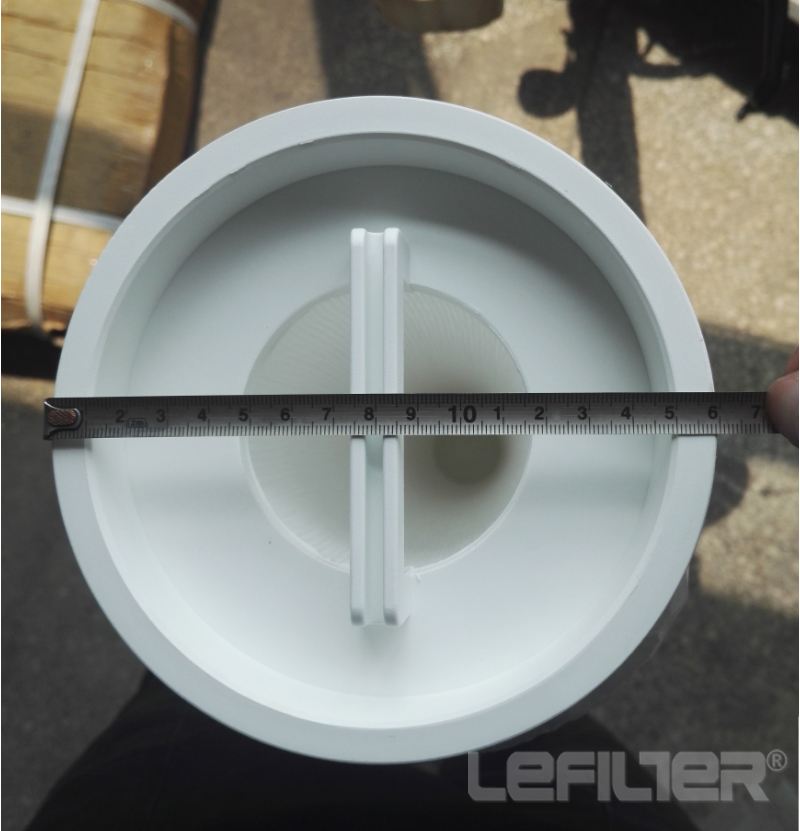

End cap part: high-strength PP (polypropylene) end cap
Filter layer: protective mesh layer, non-woven fabric layer, high-precision filter membrane and other filter materials are evenly distributed and arranged;
Connection part: The whole body does not contain any glue, and all the connection parts are glued in the form of ultrasonic hot melt to ensure strength and prevent secondary pollution;
Sealing part: select nitrile rubber, fluorine rubber, silica gel, etc. according to the working conditions, with superior anti-aging performance;
Process part: The "M" type high and low ripple process is used for arrangement, which can effectively increase the filter area and increase the dirt holding capacity of the filter element, thereby increasing the service life;
Frame part: special customized one-piece high-strength PP frame, equipped both inside and outside, to ensure the compression resistance of the filter element
Performance parameters of large flow filter element:
|
Common size |
20’’（about 508mm） |
Can also be based on |
|
40’’（about 1016mm） |
||
|
60’’（about 1524mm） |
||
|
Common precision |
1μm、3μm、10μm、 |
Can be adjusted at any time according to working conditions |
|
Filter area |
20’’--4-5㎡ |
|
|
40’’--8-10㎡ |
||
|
60’’--12-15㎡ |
||
|
Single filter flow |
20’’--10m³/H |
5μm Under precision conditions |
|
40’’--20m³/H |
||
|
60’’--30m³/H |
||
|
Filter form |
From In to out |
Different forms of filtration have different water inlet directions |
|
From out to In |
||
|
Initial pressure difference |
0.02MPa |
|
|
Replace the pressure drop |
0.25Mpa |
|
|
Maximum pressure drop |
0.35Mpa |
|
|
Maximum use temperature |
80℃ |
|
Large flow rate water filter Application field
1. Food industry: filtration of alcohol, beverages and drinking water.
2. Electronic industry: pre-filtration of pure water and ultra-pure water.
3. Petroleum and chemical industry: filtration of various organic solvents, acids, lye, oilfield water injection filtration.
4. Ultrafiltration equipment RO security filtration seawater desalination pretreatment
5. Power plant condensate filtration
6. Water filtration in the biopharmaceutical industry
7. Paint, coating, petrochemical industry
8. Microelectronics film fiber resin
