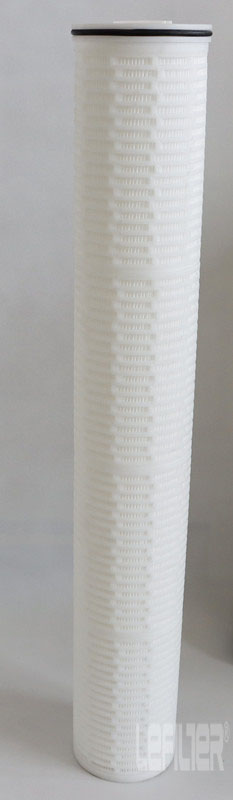

Replacement P-all High Flow water Filter element HFU660GF100H
Introduction:Product parameter: Specifications ofP-all Replacement High Flow Water Filter Cartridge Type: P-all Water filter Use:Household Pre-Filtration Place of Origin:Henan China (Mainland) Brand Name:P-all Model Number:HFU660GF100H1 Media:pp Micron:15u
We're here to help:
Easy ways to get the answers you need.
Product parameter:
High Flow Rate Water Filter profile:
The high-flow filter element is made of continuous high-performance fiber filter material and wound with special special equipment. The length of the filter element is as high as 70" (1778mm), which prevents fiber deformation and fiber shedding, and can be installed in existing equipment. The high-performance fiber filter fluid avoids the precipitation of impurities and pre-washing when starting up. Ultra-long filter element 70" (1778mm) ) It is suitable for applications with high flow rate and high pollution capacity. It has high mechanical strength and will not be deformed even under severe process conditions. It can be directly installed in the existing shell without replacement or modification.
High Flow Rate Water Filter features:
(1) Large flow rate of single filter element
(2) Low installation cost and low operating cost
(3) The replacement quantity of filter element is small
(4) 1 micron absolute filtration accuracy
(5) High-quality special FDA filter material
(6) The filtering method of in and out, all impurities are intercepted inside the filter element
(7) No metal framework, minimizing the loss caused by discarding
(8) U-shaped sealing groove ensures high filtration efficiency
High Flow Rate Water Filte parameter:
|
Initial pressure difference |
0.02MPa |
|
Replacement pressure drop |
2.4Bar |
|
Maximum allowable pressure drop |
3.4Bar |
|
Maximum operating temperatur |
80℃ |
|
Filtration direction |
From inside to outside, without internal skeleton |
|
Accuracy level |
1.5μm, 3μm, 4.5μm, 10μm, 20μm, 30μm, 70μm |
|
Filter material |
polypropylene glass fibe |
|
Sealing materials |
ethylene propylene rubber, rubber, fluorine rubber, neoprene |
|
Outer diamete |
6 inches (152.5mm) |
|
Length |
20 inches (508mm), 40 inches (1016mm), 60 inches (1524mm) |
Large flow rate water filter Application field
1. Food industry: filtration of alcohol, beverages and drinking water.
2. Electronic industry: pre-filtration of pure water and ultra-pure water.
3. Petroleum and chemical industry: filtration of various organic solvents, acids, lye, oilfield water injection filtration.
4. Ultrafiltration equipment RO security filtration seawater desalination pretreatment
5. Power plant condensate filtration
6. Water filtration in the biopharmaceutical industry
7. Paint, coating, petrochemical industry
8. Microelectronics film fiber resin
