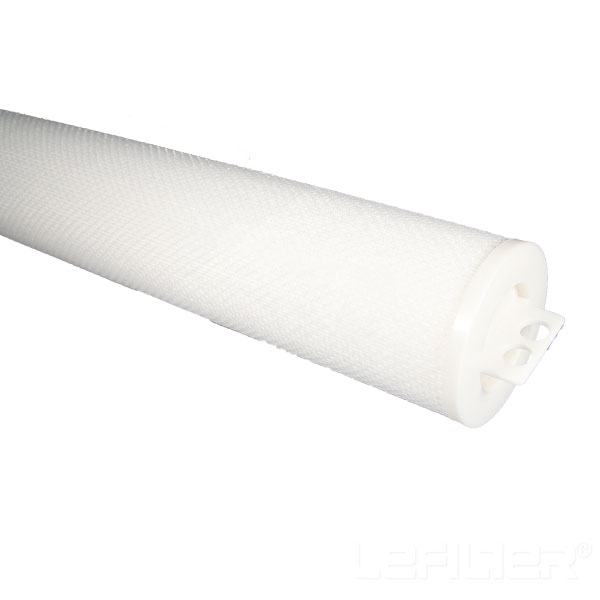

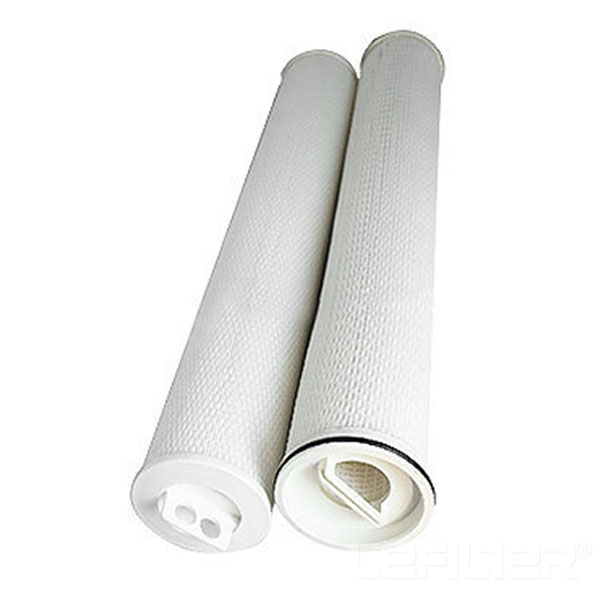

Equivalent Parker high flow filter cartridge MFNP100-40N
Introduction:Product parameter: Replacement Parker high flow filter cartridgeMFNP100-40N Micron 1m5m10m15m20m40m70m100m Cartridge Length: 40 (1016mm) Cartridge Max.OD: 6.0(152mm) Filter Medium: Polypropylene Cellulose Melt Blown PP Support: Po
We're here to help:
Easy ways to get the answers you need.
Product parameter:
1.The introduction of high flow water filter
The high flow filter element has a large diameter, no inner frame, one-way end cap opening, folding type, inside out This series of filter elements adopt crescent-shaped geometric folding method, and the large diameter allows you to filter out a large number of impurity particles with a small amount of filter elements, and it is suitable for large flow conditions.
2. Product features of large flow water filter
1, a single filter element has a large flow rate
2, low installation cost, low operating cost
3, the replacement quantity of filter element is small
4, filtration accuracy 1-200um
5, high-quality FDA filter material
6. In-and-out filtering mode, impurities are intercepted inside the filter element
7. There is no metal skeleton, which greatly reduces the loss caused by discarding
8. U-shaped sealing groove ensures high filtration efficiency
3., performance characteristics of water filter:
1, general external dimensions: outer diameter: 152.4mm, inner diameter: 89mm
2, processing accuracy level: 1,3,5,10,20,40,70,90,150,200 microns
3, 20″ inches-68gpm/psid(257lpm/70mbar)(μm) water flow velocity
4, 40" inch -135gpm/psid(511lpm/70mbar)
5, 60 "inch -204gpm/psid(772lpm/70mbar)
|
Micron |
1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm |
|
Cartridge Length: |
40" (1016mm) |
|
Cartridge Max.OD: |
6.0"(152mm) |
|
Filter Medium: |
Polypropylene , Cellulose , Melt Blown PP |
|
Support: |
Polypropylene |
|
End Caps: |
Glass Fiber Reinforced Polypropylene |
|
O-ring Seal options: |
EPDM,NBR,Viton, |
|
Polypropylene: |
3.44bar@82°C,50psi@180°F |
|
Glass Fiber: |
3.44bar@121°C,50psi@180°F |
|
Suggestion Flow: |
40" 1300LPM |
Replace some models:
1. HFU620CAS010JUW, HFU640CAS010JUW, HFU660CAS010JUW
2. HFU620UY020H13, HFU640UY045H13, HFU660UY400H13
3. HFU620GF100H13, HFU640GF200H13, HFU660GF050H13
4. HFU620UY020J, HFU640UY020J, HFU660UY020J
5. HFU620UY045J, HFU640UY045J, HFU660UY045J
6. HFU620GF100H13, HFU640GF200H13, HFU660GF100H13
7. HFU620UY200J, HFU640UY200J, HFU660UY200J
8. HFU620UY400J, HFU640UY400J, HFU660UY400J
9. HFU620UY700J, HFU640UY700J, HFU660UY700J
