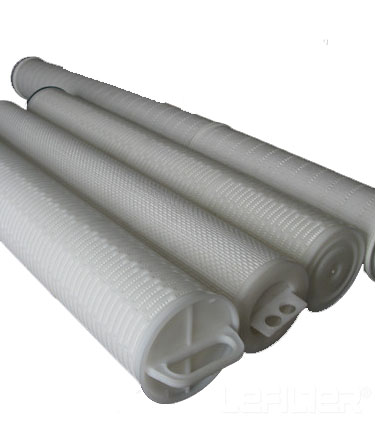

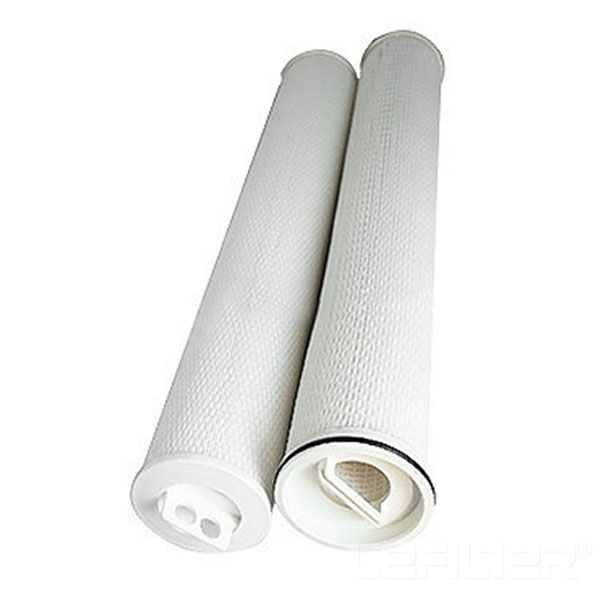

Parker high flow filter cartridge RFP100-40NPX
Introduction:Product parameter: Replacement Parker high flow filter cartridgeRFP100-40NPX Micron 1m5m10m15m20m40m70m100m Cartridge Length: 40 (1016mm) Cartridge Max.OD: 6.0(152mm) Filter Medium: Polypropylene Cellulose Melt Blown PP Support: P
We're here to help:
Easy ways to get the answers you need.
Product parameter:
1.The introduction of high flow water filter:
The high-flow filter element usually adopts the inner and outer framework of PP material, and the filter layer is composed of protective nets, non-woven fabrics, filter membranes and other materials, which can adapt to most water treatment conditions
2.Performance parameters of large flow filter element
Common sizes: 20 inches (about 508mm), 40 inches (about 1016mm), 60 inches (about 1524mm) can also be customized according to needs;
Common precision: 1μm, 3μm, 10μm, 20μm, 40μm, 50μm, 60μm, 100μm can be adjusted at any time according to the working conditions;
Filter area: 20 inches -4-5 square meters, 40 inches-8-10 square meters, 60 inches-12-15 square meters;
Single filter flow rate: 20 inches -10m³/H, 40 inches -20m³/H, 60 inches -30m³/H (under 5μm precision conditions);
Filtration form: inside and outside, outside and inside out (different forms of filtration have different water inlet directions);
Initial pressure difference: 0.02MPa;
Replacement pressure drop: 0.25Mpa;
Maximum pressure drop: 0.35Mpa;
3. Characteristics of high flow filter element:
1. The high-flow filter element can ensure sufficient flow capacity in a long time.
2. The high-flow filter element has sufficient strength and will not be damaged due to the action of hydraulic pressure.
3. The filtration accuracy of the large flow filter element meets the predetermined requirements (1-50 microns)
4. It is extremely convenient to replace and clean the large flow filter element
4.Application areas of high flow water filter cartridge:
1. Ultrafiltration equipment RO security filtration seawater desalination pretreatment
2. Filtration of power plant condensate
3. Water filtration in the biopharmaceutical industry
4. Paint, coating, petrochemical industry
5. Microelectronics film fiber resin
