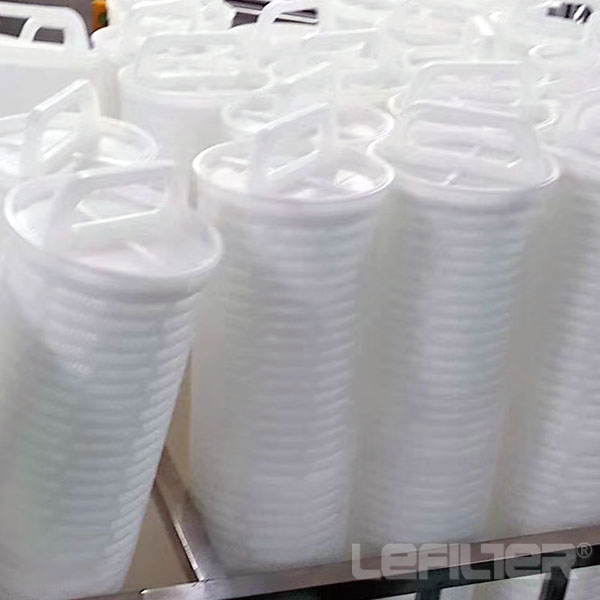

Big Flow Water Filter Cartridge HF40PP015B01

The introduction of 3M high flow water filter:

The 3m high-flow water filter element adopts the patented horizontal discount technology to maximize the area of ​​the filter medium in a limited space, and the flux is 20 times more than that of the conventional filter element. The flow direction is smooth outside and the inner diameter of the filter element is 3 inches. The maximum flow rate of a single filter element is 110 tons/hour, and the filtration accuracy of the 3M high-flow filter element is more precise. Due to its technical advantages and unique design, the 3M high-flow filter element has a good balance between filtration efficiency, dirt holding capacity and service life. The relationship, the service life is also long. The 3M high-flow filter element adopts a handle-type humanized design. When the filter element is installed, only the filter element needs to be inserted into the positioning column, and the filter element is rotated 90 degrees after it reaches the end to ensure the seal.

Technical parameters of 3M high flow water filter element:

Length 1016 1035

Sealing material: A-ilicon silica gel B-fluorocar fluorine rubber C-fpr ethylene propylene rubber D-witrile nitrile rubber

Material: Polypropylene

Filter area: 4 square meters

Filtration accuracy: 5, 10, 40, 70, 100μm

40 ''/5μm design flow 28-35m3/H

40''/10-20μm design flow 35-55m3/H

40''/40-70μm design flow 50-65m3/H
