Large Flow Water Filter Cartridge HF60PP015C01
Introduction:3M Replacement High Flow Water Filter Cartridge HF30PP070 Product parameter: Specifications of 3M Replacement High Flow Water Filter Cartridge Type: 3MWater filter Use:Household Pre-Filtration Place of Origin:Henan China (Mainland) Brand N
We're here to help:
Easy ways to get the answers you need.
Product parameter:
1.Introduction of high flow water filter

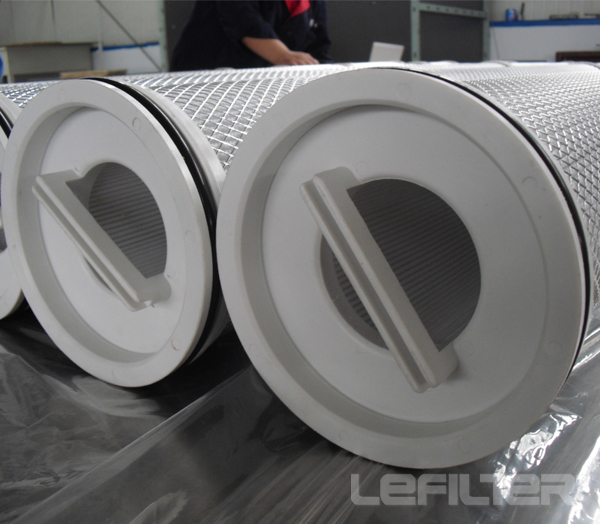

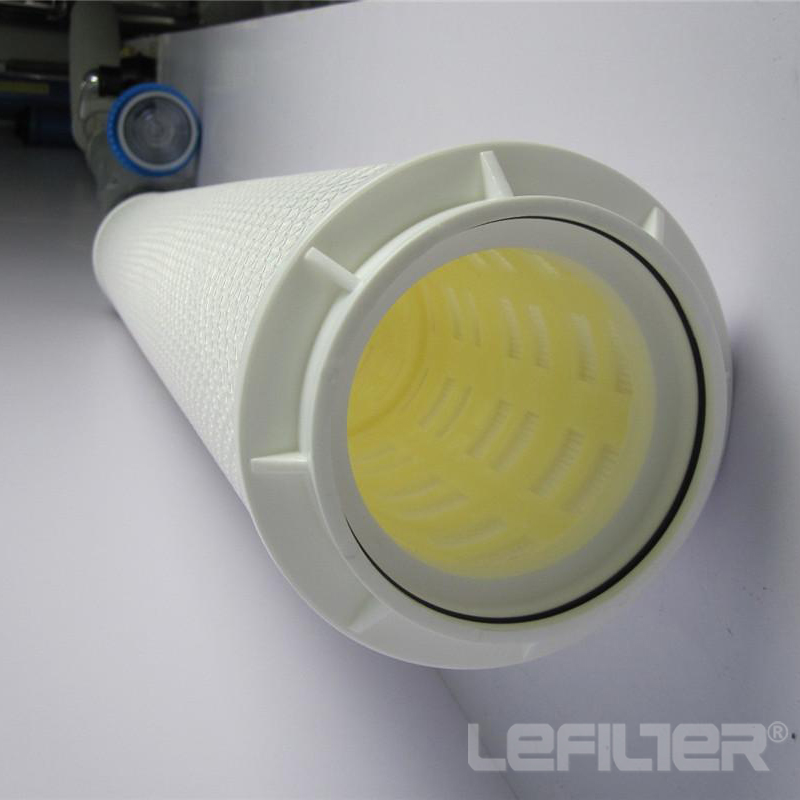

The large flow filter element has a large diameter, no inner frame, one-way end cap opening, folding type, in and out. This series of filter elements adopt crescent-shaped geometric folding method, and the large diameter allows you to filter out a large number of impurity particles with a small amount of filter elements, and it is suitable for large flow conditions!
2. Product features of high flow water filter
1, a single filter element has a large flow rate
2, low installation cost, low operating cost
3, the number of replacement filter elements is small
4, filtration accuracy 1-200um
5, high-quality FDA filter material
6. In-and-out filtration mode, impurities are trapped inside the filter element
7. There is no metal frame, which greatly reduces the loss caused by discarding
8, U-shaped sealing groove ensures high filtration efficiency
3.performance characteristics of high flow water filter:
1, general external dimensions: outer diameter: 152.4mm, inner diameter: 89mm
2, processing accuracy level: 1,3,5,10,20,40,70,90,150,200 microns
3, 20″ inches-68gpm/psid(257lpm/70mbar)(μm) water flow velocity
4, 40" inch -135gpm/psid(511lpm/70mbar)
5, 60 "inch -204gpm/psid(772lpm/70mbar)
