Replacement Parker pleated high flow water filter
Introduction:Desc
We're here to help:
Easy ways to get the answers you need.
Product parameter:
Brief introduction of Parker high flow filter element:
Parker high-flow filter element has a large outer diameter of 6 inches/152mm, and there is no central support frame, one end is open, and the filtering fluid flows from inside to outside. The large diameter design of the filter element increases the effective filtration area and can greatly reduce it The number of filter elements and the reduction of housing size. Because of its large flow rate and long filter life, it can reduce investment and labor costs in many applications. The positively charged O-ring seal and the built-in handle make the installation of the filter element fast, safe and convenient.
Parker high flow filter product performance and characteristics
Gradient empty structure
When filtering water, the flow rate of a filter element can reach up to 110m³/h
Filter system size can be reduced by up to 50%
Available in 20", 40" and 60" length filter elements
The flow direction from inside to outside ensures that all impurities are trapped inside the filter element
Parker high flow filter technical parameter:
Filter precision: 1μm, 4.5μm, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm
Outer diameter of filter element: 60" (152mm)
Filter element length: 20", 40", 60"
Part material: filter material: folded glass fiber, folded deep polypropylene, melt blown polypropylene
Support / diversion layer: polypropylene
Sealing ring material: ethylene propylene rubber, nitrile rubber
Maximum working temperature: 120°C folded glass fiber, 82°C folded polypropylene, 65°C melt blown polypropylene
Maximum pressure drop: Folded glass fiber 3.4bar 121℃, Folded polypropylene 3.4bar 82℃, Meltblown polypropylene 1.03bar 65℃
Recommended pressure drop when replacing the filter element: 2.4bar 20℃
Recommended maximum filtration water flow: 20" filter element 660L/min, 40" filter element 1300L/min, 60" filter element 1900L/min
Parker high flow filter application field:
RO security filtration, seawater desalination pretreatment
Power plant condensate filtration
Filtration of APIs, solvents, and water in the biopharmaceutical industry
Filtration of bottled water, sugar liquid, edible oil, fruit juice, soft drinks, milk
Paint, coating, petrochemical
Microelectronics, film, fiber, resin
Replace Parker high flow filter models:
MFNP010-40N,MFNP030-40N,MFNP045-40N，MFNP060-40N，MFNP100-40N
MFNP010-60N,MFNP030-60N,MFNP045-60N，MFNP060-60N，MFNP100-60N

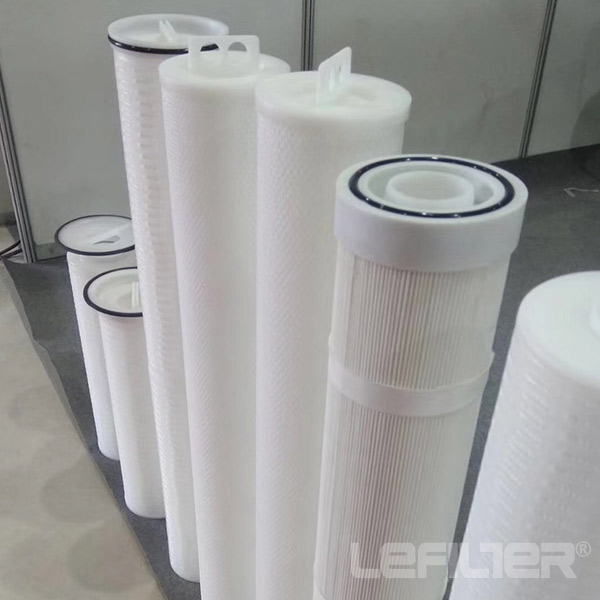

Photo of Parker high flow filter:
