Replacement HFU660UY700J high flow rate water filter

Introduction:Description: Equivalent Parker /3MLarge Flow Water Filter Element is one types of customize water filter according to customers requirements for water filtration. It is a large diameter coreless single open ended pleated cartridge with a

We're here to help:
Easy ways to get the answers you need.

SEND E-MAIL GET PRICE
  • Product parameter
  • Inquiry

Product parameter:

P-all high flow filter Features:

◆ Large flow of single filter element

◆ Low installation cost and low operating cost

◆ Small number of replacement filter elements

◆ 1 micron filtration accuracy

◆ High-quality special FDA filter material

◆ In-and-out filtering method, all impurities are intercepted inside the filter element

◆ No metal framework, reducing the loss caused by discarding

◆ U-shaped sealing groove ensures high filtration efficiency

P-all high flow filter performance characteristics:

General dimensions: Outer diameter: 152.4mm Inner diameter: 89mm

Processing accuracy level: 1,3,5,10,20,40,70,90,150 microns (μm)

Water velocity

20″ inches – 68 gpm/psid (257 lpm/70 mbar)

40″ inches – 135gpm/psid (511 lpm/70 mbar)

60″ inches – 204gpm/psid (772 lpm/70 mbar)

P-all high flow filter main specifications

Operating pressure: 3.5kg/cm2

Operating temperature: 80℃

Recommended flow rate: 50m3/hr

Material: PP polypropylene

Outer diameter: 6 inches (152.4mm)

Length: 40 inches (1016mm), 60 inches (1524mm) optional

ccuracy level: 1 micron, 5 micron, 10 micron, 15 micron, 20 micron, 25 micron, 30 micron, 40 micron, 50 micron and other levels

Sealing ring material: E-ethylene propylene rubber, N-butadiene rubber, S-silicone resin, V-fluorine rubber, T-PFA sealing fluorine rubber

 P-all high flow rate water filter application areas:

Imported water filtration

Bottled water pre-filtration-sterilization filter

Food and beverage filtration

Acid and alkali filtration

Amines

Activated carbon bed

Deep well

P-all high flow rate water filter models:

PFTM1-20U-HFJ      PFTM1-40U-HFJ         PFTM1-60U-HFJ

PFTM5-20U-HF       JPFTM5-40U-HFJ        PFTM5-60U-HFJ

HFU620CAS010JUW    HFU640CAS010JUW        HFU660CAS010JUW

HFU620UY020H13        HFU640UY045H13       HFU660UY400H13

HFU620GF100H13        HFU640GF200H13       HFU660GF050H13

HFU620GF100H13        HFU640GF200H13       HFU660GF100H13

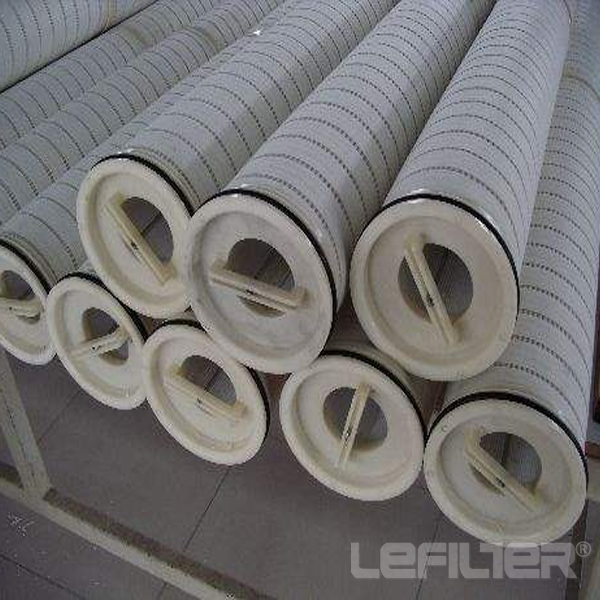

Photo of high flow rate water filter
