Replacement 3M High Flow Rate Water Filter HF40PP001A01

3M High Flow Rate Water Filter description:

Equivalent Parker /3MLarge Flow Water Filter Element is one types of customize water filter according to customers' requirements for water filtration. It is a large diameter, coreless, single open ended, pleated cartridge with an inside-to-outside flow pattern. And it is much faster, easier filter change outs.

3M High Flow Rate Water Filter features and benefits:

6" Diameter, large geometry for high flow rates
Multi layer pleated construction with optimized surface area
Thermally bonded construction
High flow rates per element
Low cost of installation and filtration
Handle for easy filter replacement

3M High Flow Rate Water Filter product size:

[Outer diameter]: Ø 152mm
[Length]: 20", 40", 60"

3M High Flow Filter structural materials

[Filter material]: PP/ glass fiber
[Shell/Center Rod/End Cover]: PP
[Sealing material]: Silicone rubber, ethylene propylene rubber, fluorine rubber, Teflon coated fluorine rubber

3M High Flow  Filter technical performance

[Maximum working temperature]: 80℃
[Maximum working pressure difference]: 3 bar@21℃

3M High Flow  Filter applications:

Water Systems
Chemicals
Food and Beverage
Pre RO

Other 3M high flow filter models:

HF40PP001B01, HF40PP001C01, HF40PP001D01, HF40PP002A01, HF40PP002B01, HF40PP002C01,

HF40PP002D01, HF40PP005A01, HF40PP005B01, HF40PP005C01, HF40PP005D01, HF40PP010A01, HF40PP010B01,

HF40PP010C01, HF40PP010D01, HF40PP015A01, HF40PP015B01, HF40PP015C01, HF40PP015D01, HF40PP025A01,

HF40PP025B01, HF40PP025C01, HF40PP025D01, HF40PP040A01, HF40PP040B01, HF40PP040C01, HF40PP040D01,

HF40PP070A01, HF40PP070B01, HF40PP070C01, HF40PP070D01, HF60PP001A01, HF60PP001B01, HF60PP001C01,

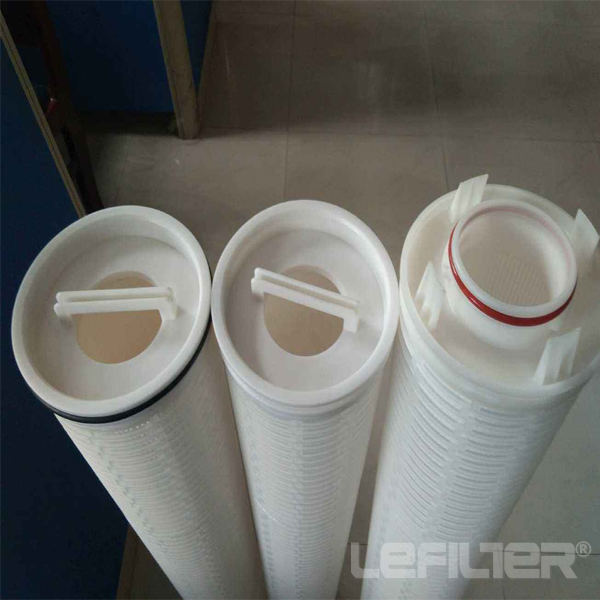

Photo of high flow filter
