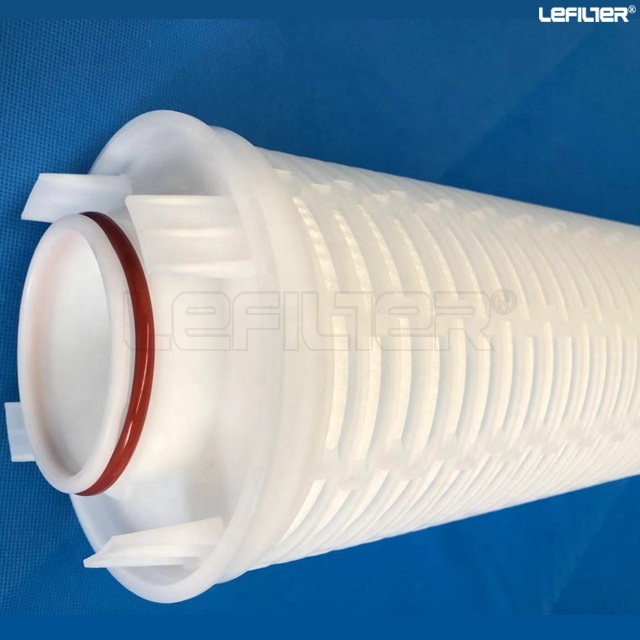

HF60PP005C01High Flow Filter Cartridge for Water Treatment

HF60PP005C01 Introduction

High Flow Pleated Filter Cartridge is single open ended which design for the direction from an inside to outside flow pattern. The large filter area ensure the high dirt holding capacity. The low cost save the number of filter cartridge. Long service life and superior flow rates are the main characteristics. All contaminants can be removed efficiently.

Construction
Filter Media	Fibergalss , Polypropylene
Center Core	Polypropylene
End Caps	Polypropylene reinforced with Glass fiber
Sealing O-ring	Ethylene propylene rubber (EPR), Rubber Coated PTFE
Performance
Filtration Accuracy	1, 3, 5, 10, 20, 50, 70 μm
Highest Operation Temperature	80℃
Maximum Pressure Drop	Pleated Fiberglass-3.4Bar@20℃
Recommended Change-out Differential Pressure	2.4Bar@20℃
Recommended Maximum Filtration Volume	1300L/min.

Industries	Applications
Municipal Water General Industrial Oil & Gas Chemicals & Petrochemicals Food & Beverage Electronics	• Pre-RO Water
	• Process Waters
	• Wastewater & Reclaimed Waters
	• Injection & Produced Waters
	• DE Trap
	• Clarification
	• Amine Sweetening
	• Catalyst Protection/Recovery
	• Machine Coolants

Benefits

Reduced cartridge handling & disposal
Reduced filter change-out time
Less individual cartridge seal points, reducing chance of fluid bypass
High filter loading capacity
Reproducible filter effluent quality throughout life of filter
Broad chemical compatibility
No special tools or hardware required for filter change-out
"Twist-to-lock" cartridge seating mechanism provides positive seal

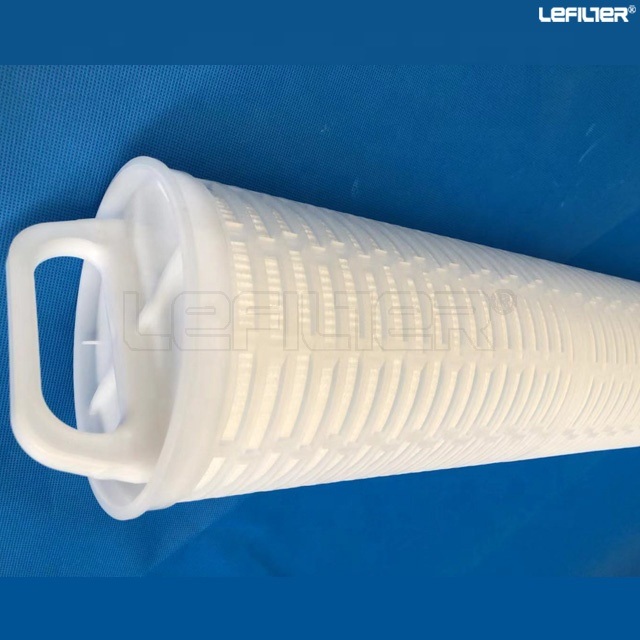

Ergonomic designed handle facilitates cartridge installation and removal

Other Model Nos.

HF60PP001D01, HF60PP002A01, HF60PP002B01, HF60PP002C01, HF60PP002D01, HF60PP005A01,
HF60PP005B01, HF60PP005C01, HF60PP005D01, HF60PP010A01, HF60PP010B01, HF60PP010C01,
HF60PP010D01, HF60PP015A01, HF60PP015B01, HF60PP015C01, HF60PP015D01, HF60PP025A01,
HF60PP025B01, HF60PP025C01, HF60PP025D01, HF60PP040A01, HF60PP040B01, HF60PP040C01,
HF60PP040D01, HF60PP070A01, HF60PP070B01, HF60PP070C01, HF60PP070D01,

HF40PP001A01, HF40PP001B01, HF40PP001C01, HF40PP001D01, HF40PP002A01, HF40PP002B01, HF40PP002C01,
HF40PP002D01, HF40PP005A01, HF40PP005B01, HF40PP005C01, HF40PP005D01, HF40PP010A01, HF40PP010B01,
HF40PP010C01, HF40PP010D01, HF40PP015A01, HF40PP015B01, HF40PP015C01, HF40PP015D01, HF40PP025A01,
HF40PP025B01, HF40PP025C01, HF40PP025D01, HF40PP040A01, HF40PP040B01, HF40PP040C01, HF40PP040D01,
HF40PP070A01, HF40PP070B01, HF40PP070C01, HF40PP070D01, HF60PP001A01, HF60PP001B01, HF60PP001C01,
HF60PP001D01, HF60PP002A01, HF60PP002B01, HF60PP002C01, HF60PP002D01, HF60PP005A01, HF60PP005B01,
HF60PP005C01, HF60PP005D01, HF60PP010A01, HF60PP010B01, HF60PP010C01, HF60PP010D01, HF60PP015A01,
HF60PP015B01, HF60PP015C01, HF60PP015D01, HF60PP025A01, HF60PP025B01, HF60PP025C01, HF60PP025D01,
HF60PP040A01, HF60PP040B01, HF60PP040C01, HF60PP040D01, HF60PP070A01, HF60PP070B01, HF60PP070C01

70-0201-5556-3,
70-0201-5558-9, 70-0201-5560-5, 70-0201-5562-1, 70-0201-5564-7,  70-0201-5566-2, 70-0201-5568-8,
70-0201-5570-4, 70-0201-5572-0, 70-0201-5574-6, 70-0201-5576-1,  70-0201-5578-7, 70-0201-5580-3,
70-0201-5582-9, 70-0201-5584-5, 70-0201-5586-0, 70-0201-5588-6, 70-0201-5590-2, 70-0201-5592-8,
70-0201-5594-4, 70-0201-5596-9, 70-0201-5598-5, 70-0201-5600-9, 70-0201-5602-5, 70-0201-5604-1,
70-0201-5606-6, 70-0201-5608-2, 70-0201-5610-8, 70-0201-5612-4, 70-0201-5614-0, 70-0201-5616-5,
70-0201-5618-1, 70-0201-5620-7, 70-0201-5622-3,70-0201-5624-9, 70-0201-5626-4, 70-0201-5628-0,
70-0201-5630-6, 70-0201-5632-2, 70-0201-5634-8, 70-0201-5636-3, 70-0201-5638-9, 70-0201-5640-5,
70-0201-5642-1, 70-0201-5644-7, 70-0201-5646-2, 70-0201-5648-8, 70-0201-5650-4, 70-0201-5652-0,
70-0201-5654-6, 70-0201-5657-9, 70-0201-5659-5, 70-0201-5661-1, 70-0201-5663-7, 70-0201-5665-2,
70-0201-5667-8, 70-0201-5669-4, 70-0201-5671-0, 70-0201-5673-6, 70-0201-5675-1, 70-0201-5679-3,
70-0201-5681-9, 70-0201-5700-7, 70-0702-5677-4
