3M Hf40PP002A01 Large water filtration element

Introduction of High flow water filter cartridge

The filter medium of the large-flow filter element adopts a non-woven technology platform and a polypropylene melt blown material. The fiber structure is loose, and the high void ratio increases the amount of impurities that can be intercepted. It has a deep three-dimensional filtering effect. It is a compound deep trap, that is, larger particles are trapped on the surface of the fiber, and fine particles are trapped in the deep layer of the filter material. Therefore, the filtration efficiency of the filter element has a gradient filtration effect.

3M high flow HF40PP002A01 filter element characteristics

1.Allow high-flow media to pass through the filter material, which has the advantages of high efficiency, low pressure loss and long life.
2.The outer inlet and inner outlet structure of the high-flow filter element makes it easy to replace the filter element, while keeping the pollutants blocked on the outside of the filter element.
3.There is a pp support frame inside the filter element, which can withstand a pressure difference of 0.245MPa at most.
4.The β value of the filter element is above 1000.
5.Multiple filter elements can be installed in the filter housing, and a wide range of flow can be used, regardless of starting or continuous operation.
6.The filter element is durable, and the filter can be configured in the least and most economical way.

The specifications of the 3M high flow HF40PP002A01 filter element

Filter element model specification model :HF40 series HF60 series
filtration accuracy (micron): 5, 10, 15, 25, 40, 70
Filter element diameter (inch/mm): 6.5/165
Filter element length (inch/mm): 40 /1016 60/1524

3M high flow HF40PP002A01 filter application

1.Water Systems
2.Chemicals
3.Petrochmical
4.Food and Beverage
5.Pre RO

Other high flow water filter models:

HF40PP001A01, HF40PP001B01, HF40PP001C01, HF40PP001D01,
HF40PP002A01, HF40PP002B01, HF40PP002C01,HF40PP002D01,
HF40PP005A01, HF40PP005B01, HF40PP005C01, HF40PP005D01,
HF40PP010A01, HF40PP010B01,HF40PP010C01, HF40PP010D01,
HF40PP015A01, HF40PP015B01, HF40PP015C01, HF40PP015D01,
HF40PP025A01,HF40PP025B01, HF40PP025C01, HF40PP025D01,
HF40PP040A01, HF40PP040B01, HF40PP040C01, HF40PP040D01,
HF40PP070A01, HF40PP070B01, HF40PP070C01, HF40PP070D01,
HF60PP001A01, HF60PP001B01, HF60PP001C01,HF60PP001D01,
HF60PP002A01, HF60PP002B01, HF60PP002C01, HF60PP002D01,
HF60PP005A01, HF60PP005B01,HF60PP005C01, HF60PP005D01,
HF60PP010A01, HF60PP010B01, HF60PP010C01, HF60PP010D01,
HF60PP015A01,HF60PP015B01, HF60PP015C01, HF60PP015D01,
HF60PP025A01, HF60PP025B01, HF60PP025C01, HF60PP025D01,
HF60PP040A01, HF60PP040B01, HF60PP040C01, HF60PP040D01,
HF60PP070A01, HF60PP070B01, HF60PP070C01,HF60PP070D01

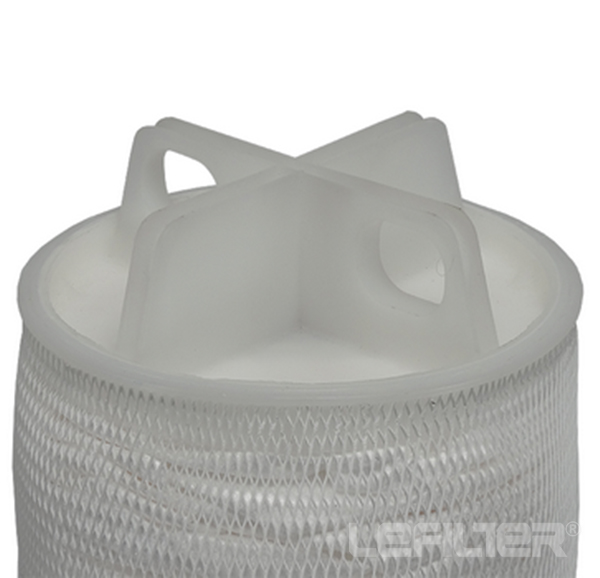

Photo of high flow rate filter
