3M High Flow Rate water FilterHF40PP005C01 for Petrochemical

3M HF40PP005C01  High Flow Rate Water Filter profile:

The 3M high-flow filter element is the latest patented product launched by 3M in the United States that integrates advanced technologies such as non-woven technology, micro-replication technology, and patent discounts.
The maximum flow rate of a single filter element can reach 110 tons/hour.
Endow the filter element with the characteristics of high precision, high efficiency, high flow, deep filtration and long service life.
The filter element has an absolute filtration efficiency of 99.9% in the range of 1-70μm.
The filter element adopts an "O" ring seal and a unique design of the draft tube, which is easy to use, can ensure the filtration efficiency and prevent side leakage.

3M HF40PP005C01 High Flow Rate Water Filter feature:

1. High performance filter material
2. Patented horizontal pleating design and technology
3. 20 times more flux than conventional filter elements
4. Absolute filtering accuracy
5. Ultra-long life filter element
6. Humanized design

3M HF40PP005C01  High Flow Rate Water Filter parameter:

Brand	Lefilter	Name	High Flow Rate Filter
Filter layer material	Polypropylene	Frame material	Polypropylene
End cover material	Polypropylene	Replace the pressure drop	2.4Bar
Length dimension	10 ", 20 ", 30 ", 40 ", 60 "	Operating temperature	80℃
Sealing material	Ethylene propylene rubber, nitrile rubber, fluorine rubber, neoprene	Filter element surface form	1.Polypropylene outer skeleton 2. Outer winding belt 3. Outer plastic net
Filtration accuracy	1μm, 5μm, 10μm, 20μm, 40μm
Working medium	Domestic drinking water, biopharmaceutical industry water filtration, industrial water filtration

3M HF40PP005C01 High Flow Rate Water Filter application field:

1.RO security filtration, seawater desalination pretreatment
2. Power plant condensate filtration
3. Filtration of raw materials, solvents and water in the biopharmaceutical industry
4.Bottled water, sugar liquid, edible oil, fruit juice, soft drink, milk filtration
5. Paint, ink, CD, magnetic medium, petrochemical industry, refining
6. Microelectronics, film, fiber, resin

High Flow Rate Water Filte models:

P-all	HFU620UY200H4、HFU620UY200H4W、HFU620UY400H、HFU620UY400H1、HFU620UY400H4、HFU620UY400H4W、HFU620UY700H1、HFU620UY700H13 HFU640UY200H4、HFU640UY200H4W、HFU640UY200HW、HFU640UY200J、HFU640UY400H、HFU640UY400H1、HFU640UY400H13、HFU640UY400H13W HFU660UY200H4W、HFU660UY200HW、PFTM1-20U-HFH13、PFTM1-40U-HFH13、PFTM1-60U-HFH13 ect
3M	HF40PP005、HF40PP010、HF40PP040、HF40PP070、HF40PP100 HF30PP005、HF30PP010、HF30PP030、HF30PP070、HF30PP100 HF20PP005、HF20PP010、HF20PP020、HF20PP070、HF20PP100 ect
PAKER	RFP010-40、RFP050-40、RFP100-40、RFP500-40、RFP1000-40、RFP010-30、RFP050-30、RFP100-30、RFP500-30、RFP1000-30、RFP010-20、RFP050-20、RFP100-20、RFP500-20、RFP1000-20 ect

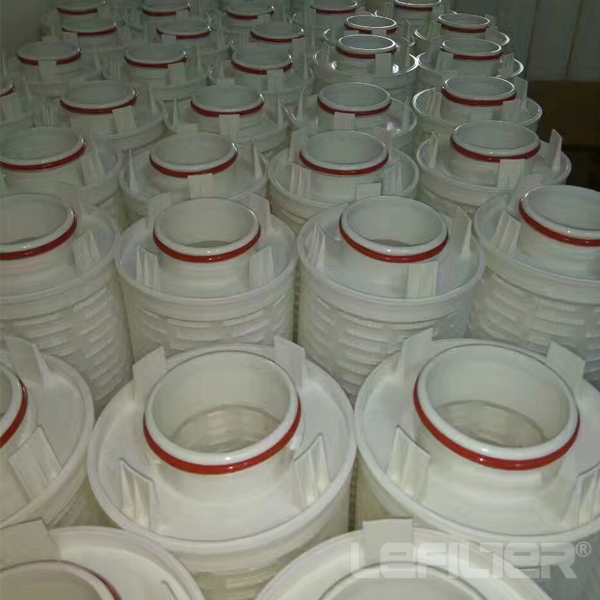

 Photo of large flow rate filter
