Parker Ultipleat high flow element RSCP100-60EPP
Introduction:PARKERRSCP100-60EPP High Flow Rate Filter profile: Parkers high-flow filter element provides a solution to effectively replace deep-la
We're here to help:
Easy ways to get the answers you need.
Product parameter:
PARKER RSCP100-60EPP High Flow Rate Filter profile:
Parker's high-flow filter element provides a solution to effectively replace deep-layer and other 2-1/2" inner diameter filter elements in high-flow situations, such as reverse osmosis prefiltration and similar nominal efficiency requirements. Each Parker ( PAKER) large flow filter element can handle flow rate up to 1300LPM, which significantly reduces the number and size of filter elements. The processing capacity of a PAKER large flow filter element is equivalent to 10 filter elements with an inner diameter of 2-1/2” and a length of 40”. Quantity. The positively charged O-ring seal and the built-in handle make the installation of the filter element fast, safe and convenient.
PARKER RSCP100-60EPP High Flow Rate Filter product Features:
1.The filter element has large dirt holding capacity and long service life
2.Less replacement times to reduce labor costs
3.The design of the sealed interface reduces the risk of side flow and improves the filtration efficiency
4.Easy to install, low labor cost
5.A wide range of chemical applications can be used in a variety of fields
PARKER RSCP100-60EPP High Flow Rate Filter technical specifications:
|
Filter material |
polypropylene (PP), glass fiber |
|
Support / diversion layer |
polypropylene |
|
End cover material |
glass fiber reinforced polypropylene |
|
Sealing ring material |
ethylene propylene rubber |
|
Filtration accuracy |
1μm, 4.5μm, 5um, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm |
|
Maximum operating temperature |
82℃ |
|
Maximum pressure drop |
3.4Bar at 82℃ |
|
Recommended maximum filtered water flow |
1300LPM |
PARKER RSCP100-60EPP High Flow Rate Filter Application areas:
1.RO security filtration, seawater desalination pretreatment
2. Power plant condensate filtration
3. Filtration of raw materials, solvents and water in the biopharmaceutical industry
4.Bottled water, sugar liquid, edible oil, fruit juice, soft drink, milk filtration
5. Paint, ink, CD, magnetic medium, petrochemical industry, refining
6. Microelectronics, film, fiber, resin
Company products comply with test standards:
Filter element-rupture resistance verification according to ISO 2941
Filter element-structural integrity according to ISO 2942
Filter element-material and liquid communication compatibility verification according to ISO 2943
Filter element-end load test method according to ISO3723
Filter element-the determination of the fatigue characteristics of the filter element is in accordance with ISO3724
Filter element-Measurement of differential pressure and flow characteristics according to ISO3968
Other high flow filter models:
|
3M |
HF40PP001A01,HF40PP001B01, HF40PP001C01, HF40PP001D01 |
|
P-all |
HFU620UY020J, HFU640UY020J ,HFU660UY020J ,HFU620UY045J |
|
PARKER |
MFNP010-40N,MFNP030-40N,MFNP045-40N，MFNP060-40N，MFNP100-40N |

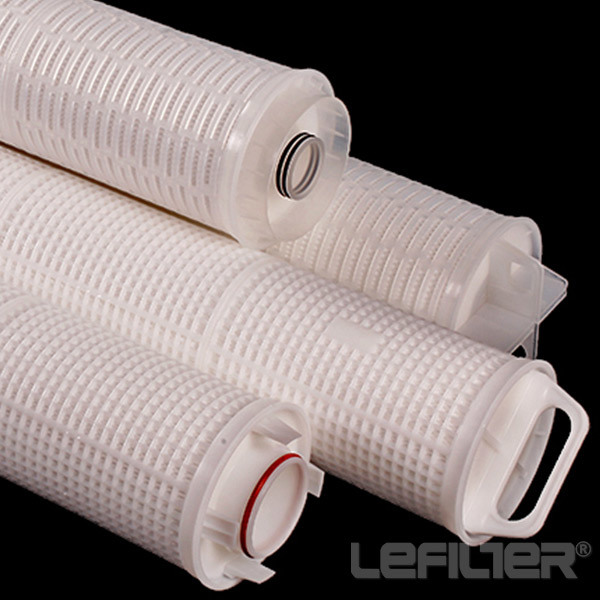

Photo of high flow water filter
