Parker RSMG045-20EPP high flow rate water filter element

Introduction:The production of ParkerRSMG010-20EPP high flow rate water filter: When the Parker high-flow filter element filters water at 60 inches the flow rate of a single filter element can reach 110m3/h and 40 inches can reach 70m3/h. The flow dir

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

The production of Parker RSMG010-20EPP high flow rate water filter:

When the Parker high-flow filter element filters water at 60 inches, the flow rate of a single filter element can reach 110m3/h, and 40 inches can reach 70m3/h. The flow direction from inside to outside ensures that all impurities are trapped inside the filter element, which is used for ultrafiltration of water Security filtration, ultrafiltration backwash security filter, ultrafiltration chemical cleaning security filtration reverse osmosis influent security filtration, reverse osmosis chemical cleaning security filtration and other equipment, but also used in. Desalination systems in the steel and power industries. Wastewater and sewage reuse in the industrial field. Municipal water treatment... The large-area pleated surface design can reduce lower pressure than other filter elements and obtain a longer service life. Filtration accuracy 5μm
b767adccd6c1acf8396258e924

The part material of Parker RSMG010-20EPP high flow rate water filter:

Filter material: Folded deep polypropylene (PP), or melt blown polypropylene
Support / diversion layer: polypropylene
End cover: glass fiber reinforced polypropylene
O-ring seal material: EPDM, Buna N
high flow filter element filtration accuracy: 1μm, 4.5μm, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm
Filter material: folded deep polypropylene (PP), or melt blown polypropylene
Support / diversion layer: polypropylene
End cover: glass fiber reinforced polypropylene
O-ring seal material: EPDM, Buna N
Filter element size: outer diameter: 6 inch (152mm)
Length: 20inch (508mm) / 40inch (1016mm) / 60inch (1524mm)
large flow filter operating conditions: Operating temperature: folded polypropylene: 82 C; melt blown polypropylene: 65 C
Pressure drop: Folded polypropylene: 3.4bar, 82 C; Melt blown polypropylene: 1.03bar, 65 C
Recommended pressure drop for filter element replacement: 2.4bar, 20 C
Recommended filtration water flow: 20inch long filter element: 660LPM; 40inch long filter element: 1,300LPM; 60inch long filter element: 1,900LPM
1288

Application areas of large flow filter elements:

1. Reverse osmosis equipment, ultrafiltration equipment, seawater desalination equipment pretreatment filtration
2. Power plant condensation water filtration
3. Biopharmaceutical industry raw materials, solvents, water filtration
4. Bottled water, sugar liquid, Filtration of edible oil, juice, soft drinks, milk
5.paint, coating, petrochemical industry6, microelectronics, film, fiber, resin

Other high flow filter models:

3M

HF40PP001A01,HF40PP001B01, HF40PP001C01, HF40PP001D01
HF40PP002A01,HF40PP002B01, HF40PP002C01,HF40PP002D01,
HF40PP005A01,HF40PP005B01,HF40PP005C01, HF40PP005D01,
HF40PP010A01,HF40PP010B01,HF40PP010C01, HF40PP010D01,
HF40PP015A01,HF40PP015B01,HF40PP015C01, HF40PP015D01,
HF40PP025A01,HF40PP025B01,HF40PP025C01, HF40PP025D01,
HF40PP040A01,HF40PP040B01,HF40PP040C01, HF40PP040D01,
HF40PP070A01,HF40PP070B01,HF40PP070C01, HF40PP070D01,
HF60PP001A01,HF60PP001B01, HF60PP001C01,HF60PP001D01,
HF60PP002A01,HF60PP002B01,HF60PP002C01, HF60PP002D01,
HF60PP005A01,HF60PP005B01,HF60PP005C01, HF60PP005D01,
HF60PP010A01,HF60PP010B01,HF60PP010C01, HF60PP010D01,
 HF60PP015A01,HF60PP015C01,HF60PP025A01,HF60PP025C01 HF6099025D01,HF60PP040A01,HF60PP040B01HF60PP040C01
HF60PP040D01 ,HF60PP070A01 ,HF60PP070B01 ,HF60PP070C01
 HF60PP070D01  XLDM4.5-40U-HFJ
XLDM1.5-20U-HFJ XLDM3-20U-HFJ XLDM4.5-20U-HFJ
XLDM10-20U-HFJ XLDM20-20U-HFJ XLDM30-20U-HFJ
XLDM70-20U-HFJ XLDM1.5-40U-HFJ XLDM3-40U-HFJ
XLDM4.5-40U-HFJ XLDM10-40U-HFJ XLDM20-40U-HFJ
XLDM30-40U-HFJ XLDM70-40U-HFJ XLDM1.5-60U-HFJ
XLDM3-60U-HFJ XLDM4.5-60U-HFJ XLDM10-60U-HFJ
XLDM20-60U-HFJ XLDM30-60U-HFJ XLDM70-60U-HFJ


P-all

HFU620UY020J, HFU640UY020J ,HFU660UY020J ,HFU620UY045J
HFU640UY045J ,HFU660UY045J, HFU620UY100J ,HFU640UY100J
HFU660UY100J ,HFU620UY200J ,HFU640UY200J, HFU660UY200J
HFU620UY400J, HFU640UY400J ,HFU660UY400J ,HFU620UY700J
HFU640UY700J,HFU660UY700J,HFU620CAS010JUW,HFU640CAS010JUW
HFU660CAS010JUW,HFU620UY020H13,HFU640UY045H13,HFU660UY400H13
HFU620GF100H13, HFU640GF200H13, HFU660GF050H13, HFU620UY020J
HFU640UY020J, HFU660UY020J ,HFU620UY045J ,HFU640UY045J
HFU660UY045J, HFU620GF100H13, HFU640GF200H13 ,HFU660GF100H13
HFU620UY200J,HFU640UY200J,HFU660UY200J,HFU620UY400J,HFU640UY400J
HFU660UY400J HFU620UY700J HFU640UY700J HFU660UY700J


PARKER

MFNP010-40N,MFNP030-40N,MFNP045-40N,MFNP060-40N,MFNP100-40N
MFNP010-60N,MFNP030-60N,MFNP045-60N,MFNP060-60N,MFNP100-60N
RSCP010-20EPP RSCP030-20EPP RSCP045-20EPP RSCP100-20EPP RSCP200-20EPP RSCP400-20EPP RSCP900-20EPP RSCP010-40EPP RSCP030-40EPP RSCP045-40EPP RSCP100-40EPP RSCP200-40EPP RSCP400-40EPP RSCP900-40EPP RSCP010-60EPP RSCP030-60EPP RSCP045-60EPP RSCP100-60EPP RSCP200-60EPP RSCP400-60EPP RSCP900-60EPP RSCP010-20SPP RSCP030-20SPP RSCP045-20SPP RSCP100-20SPP RSCP200-20SPP RSCP400-20SPP RSCP900-20SPP RSCP010-40SPP RSCP030-40SPP RSCP045-40SPP RSCP100-40SPP RSCP200-40SPP RSCP400-40SPP RSCP900-40SPP RSCP010-60SPP RSCP030-60SPP RSCP045-60SPP RSCP100-60SPP RSCP200-60SPP RSCP400-60SPP RSCP900-60SPP RSMG010-20EPP RSMG030-20EPP RSMG045-20EPP RSMG100-20EPP RSMG200-20EPP RSMG400-20EPP RSMG010-40EPP RSMG030-40EPP RSMG045-40EPP RSMG100-40EPP RSMG200-40EPP RSMG400-40EPP RSMG010-60EPP RSMG030-60EPP RSMG045-60EPP RSMG100-60EPP RSMG200-60EPP RSMG400-60EPP RSMG010-20SPP RSMG030-20SPP RSMG045-20SPP RSMG100-20SPP RSMG200-20SPP RSMG400-20SPP RSMG010-40SPP RSMG030-40SPP RSMG045-40SPP RSMG100-40SPP RSMG200-40SPP RSMG400-40SPP RSMG010-60SPP RSMG030-60SPP RSMG045-60SPP RSMG100-60SPP RSMG200-60SPP RSMG400-60SPP


 Company certification:

CE1

Factory shots:


Packing&Shipping:

trf1

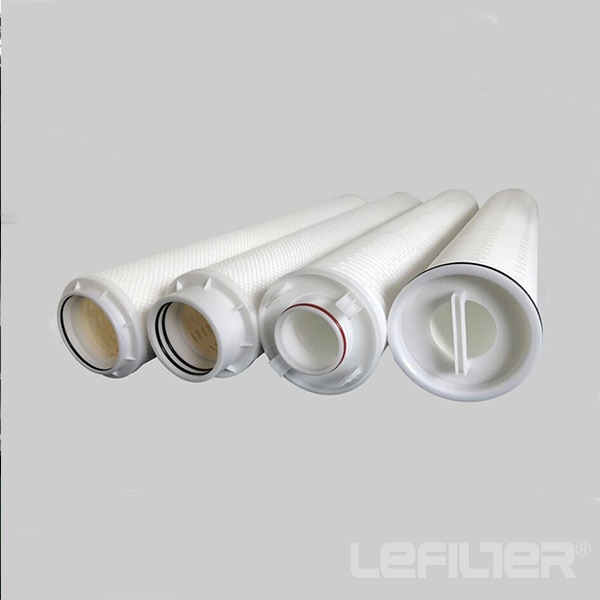

Photo of high flow rate water filter:
