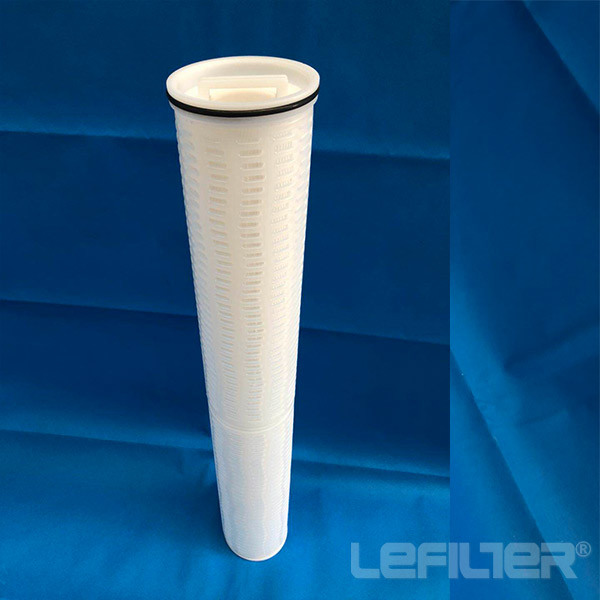

P-all High Flow water filter cartridge HFU640UY200H13
Introduction:Description of P-all High Flow water filter cartridge HFU640UY200H13 The High Flow filter is suited for applications such as cooling water, pre-RO, and resin trap filtration. It is a large diameter, coreless, single open-ended, pleated cartr
We're here to help:
Easy ways to get the answers you need.
Product parameter:
Description of P-all High Flow water filter cartridge HFU640UY200H13
The High Flow filter is suited for applications such as cooling water, pre-RO, and resin trap filtration. It is a large diameter, coreless, single open-ended, pleated cartridge with an inside to outside flow pattern. The filter's unique crescent-shaped pleat geometry, combined with its large 152 mm / 6 in diameter, reduces the number of filters and size of housing required. The cartridge is also available in a wide range of media types for other applications.
Features of P-all High Flow water filter cartridge HFU640UY200H13
• Up to 50% smaller filter system possible
• Up to forty times fewer elements to change out
• Very high flow rates per filter cartridge, up to 500 gpm / 114 m3/hr
• Available in 508 mm / 20 in, 1016 mm / 40 in and 1524 mm / 60 in lengths
• Coreless construction to minimize waste disposal
• Absolute rated filter medium for reproducible performance
• Inside to outside flow configuration - all contaminants held within the single open ended filter
Specifications of High Flow Water Filters HFU640UY200H13
|
Filter Medium |
Glass Fiber, PP, MBPP |
|
Support and Drainage |
PP |
|
End Caps |
glass fiber reinforced polypropylene |
|
O-ring Seal Material |
EPR, Nitrile Rubber |
|
Removal Ratings |
1μm, 4.5μm, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm |
|
Length |
20inch (508mm) / 40inch (1016mm) / 60inch (1524mm) |
|
Outer Diameter |
6 inch (152mm) |
Applications of P-all High Flow water filter cartridge HFU640UY200H13
Pre-filtration or RO system,DI water
Solvents,selected acids&lyes,chemical industry
Semiconductor, Eletronic industry ultrapure water system
FOOD and beverage,drinking water treatment
High Flow filter elements are designed for high particle removal efficiency of fine particulates from water applications.
P-all High flow filters typical Part Nos.
HFU620UY060H13,HFU620UY060J,HFU620UY100H13,HFU620UY100J
HFU620UY200H13,HFU620UY400H13,HFU620UY400J,HFU620UY400JU
HFU640GF020H,HFU640GF020H13,HFU640GF020J,HFU640GF100H1
HFU640GF100H13,HFU640GF200H13,HFU640UY020J,HFU640UY045J
HFU640UY1000J,HFU640UY1000J,HFU640UY1000JU,HFU640UY100H13,HFU640UY100H4
HFU640UY100J,HFU640UY200H13,HFU640UY200J,HFU640UY200J,HFU640UY400J
HFU640UY400J,HFU640UY700J,HFU660GF020J,HFU660GF100H1,HFU660UY020J
HFU660UY045H13,HFU660UY045H4,HFU660UY045J,HFU660UY060H13,HFU660UY060J
HFU660UY1000J,HFU660UY100J,HFU660UY200H13,HFU660UY200J,HFU660UY400J
HF620UY20J,HF640UY20J,HF660UY20J,HF620UY45J,HF640UY45J,HF660UY45J
HF640UY100J,HF660UY100J,HF620UY200J,HF640UY200J,HF660UY200J,HF620UY400J
HF640UY400J,HF660UY400J,HF620UY700J,HF640UY700J,HF660UY700J, HF620UY100J
