P-all XLDM30-20U-HFJ High flow water filter cartridge

The Product Features of P-all XLDM30-20U-HFJ  High Flow Filter Water Filtration:

1.The filtration direction from inside to outside ensures that all impurities are trapped inside the filter element;
2.Graduated aperture structure, high pollution holding capacity, reducing labor and operating costs;
3.A smaller size filter housing can be used, reducing investment costs and saving floor space;
4.Replacement is faster, easier and safer

The technical specifications of  P-all XLDM30-20U-HFJ high flow water filter:

Filter element size: Outer diameter: 6" (152mm)
Length: 20"(535㎜), 40"(1024㎜), 60"(1524㎜)

The part material of P-all XLDM30-20U-HFJ high flow rate water filter:

1. Filter material: folded glass fiber, folded deep polypropylene (PP), melt blown polypropylene;
2. Support / diversion layer: polypropylene;
3. End cap: glass fiber reinforced polypropylene;
4. Sealing ring material: ethylene propylene rubber, rubber.
5. Filtration accuracy: 1μm, 3μm, 5μm, 10μm, 20μm, 50μm, 75μm, 100μm;
6. Operating temperature: folded glass fiber: 121°C; folded polypropylene: 82°C; melt blown polypropylene: 65°C
7. Pressure drop: 3.4Bar
8. Recommended pressure drop for filter element replacement: 2.4Bar
9. Recommended filtering flow: 20"450LPM; 40"800LPM; 60"1150LPM.

The application field of P-all high flow rate water filter:

1.Large-scale reverse osmosis pretreatment filtration;
2.Electronics industry high-purity water pre-filtration;
3.Petrochemical industry amine liquid filtration, oilfield reinjection water filtration;
4.Power, coal chemical security filtration, seawater desalination pretreatment.

Other high flow filter models:

3M	HF40PP001A01,HF40PP001B01, HF40PP001C01, HF40PP001D01 HF40PP002A01,HF40PP002B01, HF40PP002C01,HF40PP002D01, HF40PP005A01,HF40PP005B01,HF40PP005C01, HF40PP005D01, HF40PP010A01,HF40PP010B01,HF40PP010C01, HF40PP010D01, HF40PP015A01,HF40PP015B01,HF40PP015C01, HF40PP015D01, HF40PP025A01,HF40PP025B01,HF40PP025C01, HF40PP025D01, HF40PP040A01,HF40PP040B01,HF40PP040C01, HF40PP040D01, HF40PP070A01,HF40PP070B01,HF40PP070C01, HF40PP070D01, HF60PP001A01,HF60PP001B01, HF60PP001C01,HF60PP001D01, HF60PP002A01,HF60PP002B01,HF60PP002C01, HF60PP002D01, HF60PP005A01,HF60PP005B01,HF60PP005C01, HF60PP005D01, HF60PP010A01,HF60PP010B01,HF60PP010C01, HF60PP010D01,  HF60PP015A01,HF60PP015C01,HF60PP025A01,HF60PP025C01 HF6099025D01,HF60PP040A01,HF60PP040B01HF60PP040C01  HF60PP040D01 ,HF60PP070A01 ,HF60PP070B01 ,HF60PP070C01  HF60PP070D01  XLDM4.5-40U-HFJ XLDM1.5-20U-HFJ XLDM3-20U-HFJ XLDM4.5-20U-HFJ XLDM10-20U-HFJ XLDM20-20U-HFJ XLDM30-20U-HFJ XLDM70-20U-HFJ XLDM1.5-40U-HFJ XLDM3-40U-HFJ XLDM4.5-40U-HFJ XLDM10-40U-HFJ XLDM20-40U-HFJ XLDM30-40U-HFJ XLDM70-40U-HFJ XLDM1.5-60U-HFJ XLDM3-60U-HFJ XLDM4.5-60U-HFJ XLDM10-60U-HFJ XLDM20-60U-HFJ XLDM30-60U-HFJ XLDM70-60U-HFJ
P-all	HFU620UY020J, HFU640UY020J ,HFU660UY020J ,HFU620UY045J HFU640UY045J ,HFU660UY045J, HFU620UY100J ,HFU640UY100J HFU660UY100J ,HFU620UY200J ,HFU640UY200J, HFU660UY200J HFU620UY400J, HFU640UY400J ,HFU660UY400J ,HFU620UY700J HFU640UY700J,HFU660UY700J,HFU620CAS010JUW,HFU640CAS010JUW HFU660CAS010JUW,HFU620UY020H13,HFU640UY045H13,HFU660UY400H13 HFU620GF100H13, HFU640GF200H13, HFU660GF050H13, HFU620UY020J HFU640UY020J, HFU660UY020J ,HFU620UY045J ,HFU640UY045J HFU660UY045J, HFU620GF100H13, HFU640GF200H13 ,HFU660GF100H13 HFU620UY200J,HFU640UY200J,HFU660UY200J,HFU620UY400J,HFU640UY400J HFU660UY400J HFU620UY700J HFU640UY700J HFU660UY700J
PARKER	MFNP010-40N,MFNP030-40N,MFNP045-40N，MFNP060-40N，MFNP100-40N MFNP010-60N,MFNP030-60N,MFNP045-60N，MFNP060-60N，MFNP100-60N RSCP010-20EPP RSCP030-20EPP RSCP045-20EPP RSCP100-20EPP RSCP200-20EPP RSCP400-20EPP RSCP900-20EPP RSCP010-40EPP RSCP030-40EPP RSCP045-40EPP RSCP100-40EPP RSCP200-40EPP RSCP400-40EPP RSCP900-40EPP RSCP010-60EPP RSCP030-60EPP RSCP045-60EPP RSCP100-60EPP RSCP200-60EPP RSCP400-60EPP RSCP900-60EPP RSCP010-20SPP RSCP030-20SPP RSCP045-20SPP RSCP100-20SPP RSCP200-20SPP RSCP400-20SPP RSCP900-20SPP RSCP010-40SPP RSCP030-40SPP RSCP045-40SPP RSCP100-40SPP RSCP200-40SPP RSCP400-40SPP RSCP900-40SPP RSCP010-60SPP RSCP030-60SPP RSCP045-60SPP RSCP100-60SPP RSCP200-60SPP RSCP400-60SPP RSCP900-60SPP RSMG010-20EPP RSMG030-20EPP RSMG045-20EPP RSMG100-20EPP RSMG200-20EPP RSMG400-20EPP RSMG010-40EPP RSMG030-40EPP RSMG045-40EPP RSMG100-40EPP RSMG200-40EPP RSMG400-40EPP RSMG010-60EPP RSMG030-60EPP RSMG045-60EPP RSMG100-60EPP RSMG200-60EPP RSMG400-60EPP RSMG010-20SPP RSMG030-20SPP RSMG045-20SPP RSMG100-20SPP RSMG200-20SPP RSMG400-20SPP RSMG010-40SPP RSMG030-40SPP RSMG045-40SPP RSMG100-40SPP RSMG200-40SPP RSMG400-40SPP RSMG010-60SPP RSMG030-60SPP RSMG045-60SPP RSMG100-60SPP RSMG200-60SPP RSMG400-60SPP

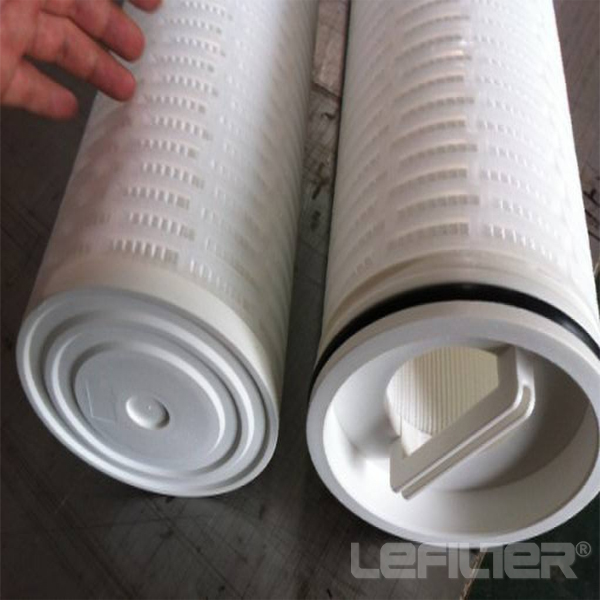

Photo of high flow rate water filter:
