PARKER RSMG100-40EPP high flow water filter for chemical

PARKER RSMG100-40EPP High Flow Rate Filter profile:

Parker's high-flow filter element provides a solution to effectively replace deep-layer and other 2-1/2" inner diameter filter elements in high-flow situations, such as reverse osmosis prefiltration and similar nominal efficiency requirements. Each Parker ( PAKER) large flow filter element can handle flow rate up to 1300LPM, which significantly reduces the number and size of filter elements. The processing capacity of a PAKER large flow filter element is equivalent to 10 filter elements with an inner diameter of 2-1/2” and a length of 40”. Quantity. The positively charged O-ring seal and the built-in handle make the installation of the filter element fast, safe and convenient.

PARKER RSMG100-40EPP High Flow Rate Filter product Features:

1.The filter element has large dirt holding capacity and long service life
2.Less replacement times to reduce labor costs
3.The design of the sealed interface reduces the risk of side flow and improves the filtration efficiency
4.Easy to install, low labor cost
5.A wide range of chemical applications can be used in a variety of fields

PARKER RSMG100-40EPP High Flow Rate Filter technical specifications:

Filter material	polypropylene (PP), glass fiber
Support / diversion layer	polypropylene
End cover material	glass fiber reinforced polypropylene
Sealing ring material	ethylene propylene rubber
Filtration accuracy	1μm, 4.5μm, 5um, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm
Maximum operating temperature	82℃
Maximum pressure drop	3.4Bar at 82℃
Recommended maximum filtered water flow	1300LPM

PARKER High Flow Rate Filter Application areas:

1.RO security filtration, seawater desalination pretreatment
2. Power plant condensate filtration
3. Filtration of raw materials, solvents and water in the biopharmaceutical industry
4.Bottled water, sugar liquid, edible oil, fruit juice, soft drink, milk filtration
5. Paint, ink, CD, magnetic medium, petrochemical industry, refining
6. Microelectronics, film, fiber, resin

Company products comply with  test standards:

Filter element-rupture resistance verification according to ISO 2941
Filter element-structural integrity according to ISO 2942
Filter element-material and liquid communication compatibility verification according to ISO 2943
Filter element-end load test method according to ISO3723
Filter element-the determination of the fatigue characteristics of the filter element is in accordance with ISO3724
Filter element-Measurement of differential pressure and flow characteristics according to ISO3968

Other high flow filter models:

3M	HF40PP001A01,HF40PP001B01, HF40PP001C01, HF40PP001D01 HF40PP002A01,HF40PP002B01, HF40PP002C01,HF40PP002D01, HF40PP005A01,HF40PP005B01,HF40PP005C01, HF40PP005D01, HF40PP010A01,HF40PP010B01,HF40PP010C01, HF40PP010D01, HF40PP015A01,HF40PP015B01,HF40PP015C01, HF40PP015D01, HF40PP025A01,HF40PP025B01,HF40PP025C01, HF40PP025D01, HF40PP040A01,HF40PP040B01,HF40PP040C01, HF40PP040D01, HF40PP070A01,HF40PP070B01,HF40PP070C01, HF40PP070D01, HF60PP001A01,HF60PP001B01, HF60PP001C01,HF60PP001D01, HF60PP002A01,HF60PP002B01,HF60PP002C01, HF60PP002D01, HF60PP005A01,HF60PP005B01,HF60PP005C01, HF60PP005D01, HF60PP010A01,HF60PP010B01,HF60PP010C01, HF60PP010D01,  HF60PP015A01,HF60PP015C01,HF60PP025A01,HF60PP025C01 HF6099025D01,HF60PP040A01,HF60PP040B01HF60PP040C01  HF60PP040D01 ,HF60PP070A01 ,HF60PP070B01 ,HF60PP070C01  HF60PP070D01  XLDM4.5-40U-HFJ XLDM1.5-20U-HFJ XLDM3-20U-HFJ XLDM4.5-20U-HFJ XLDM10-20U-HFJ XLDM20-20U-HFJ XLDM30-20U-HFJ XLDM70-20U-HFJ XLDM1.5-40U-HFJ XLDM3-40U-HFJ XLDM4.5-40U-HFJ XLDM10-40U-HFJ XLDM20-40U-HFJ XLDM30-40U-HFJ XLDM70-40U-HFJ XLDM1.5-60U-HFJ XLDM3-60U-HFJ XLDM4.5-60U-HFJ XLDM10-60U-HFJ XLDM20-60U-HFJ XLDM30-60U-HFJ XLDM70-60U-HFJ
P-all	HFU620UY020J, HFU640UY020J ,HFU660UY020J ,HFU620UY045J HFU640UY045J ,HFU660UY045J, HFU620UY100J ,HFU640UY100J HFU660UY100J ,HFU620UY200J ,HFU640UY200J, HFU660UY200J HFU620UY400J, HFU640UY400J ,HFU660UY400J ,HFU620UY700J HFU640UY700J,HFU660UY700J,HFU620CAS010JUW,HFU640CAS010JUW HFU660CAS010JUW,HFU620UY020H13,HFU640UY045H13,HFU660UY400H13 HFU620GF100H13, HFU640GF200H13, HFU660GF050H13, HFU620UY020J HFU640UY020J, HFU660UY020J ,HFU620UY045J ,HFU640UY045J HFU660UY045J, HFU620GF100H13, HFU640GF200H13 ,HFU660GF100H13 HFU620UY200J,HFU640UY200J,HFU660UY200J,HFU620UY400J,HFU640UY400J HFU660UY400J HFU620UY700J HFU640UY700J HFU660UY700J
PARKER	MFNP010-40N,MFNP030-40N,MFNP045-40N，MFNP060-40N，MFNP100-40N MFNP010-60N,MFNP030-60N,MFNP045-60N，MFNP060-60N，MFNP100-60N RSCP010-20EPP RSCP030-20EPP RSCP045-20EPP RSCP100-20EPP RSCP200-20EPP RSCP400-20EPP RSCP900-20EPP RSCP010-40EPP RSCP030-40EPP RSCP045-40EPP RSCP100-40EPP RSCP200-40EPP RSCP400-40EPP RSCP900-40EPP RSCP010-60EPP RSCP030-60EPP RSCP045-60EPP RSCP100-60EPP RSCP200-60EPP RSCP400-60EPP RSCP900-60EPP RSCP010-20SPP RSCP030-20SPP RSCP045-20SPP RSCP100-20SPP RSCP200-20SPP RSCP400-20SPP RSCP900-20SPP RSCP010-40SPP RSCP030-40SPP RSCP045-40SPP RSCP100-40SPP RSCP200-40SPP RSCP400-40SPP RSCP900-40SPP RSCP010-60SPP RSCP030-60SPP RSCP045-60SPP RSCP100-60SPP RSCP200-60SPP RSCP400-60SPP RSCP900-60SPP RSMG010-20EPP RSMG030-20EPP RSMG045-20EPP RSMG100-20EPP RSMG200-20EPP RSMG400-20EPP RSMG010-40EPP RSMG030-40EPP RSMG045-40EPP RSMG100-40EPP RSMG200-40EPP RSMG400-40EPP RSMG010-60EPP RSMG030-60EPP RSMG045-60EPP RSMG100-60EPP RSMG200-60EPP RSMG400-60EPP RSMG010-20SPP RSMG030-20SPP RSMG045-20SPP RSMG100-20SPP RSMG200-20SPP RSMG400-20SPP RSMG010-40SPP RSMG030-40SPP RSMG045-40SPP RSMG100-40SPP RSMG200-40SPP RSMG400-40SPP RSMG010-60SPP RSMG030-60SPP RSMG045-60SPP RSMG100-60SPP RSMG200-60SPP RSMG400-60SPP

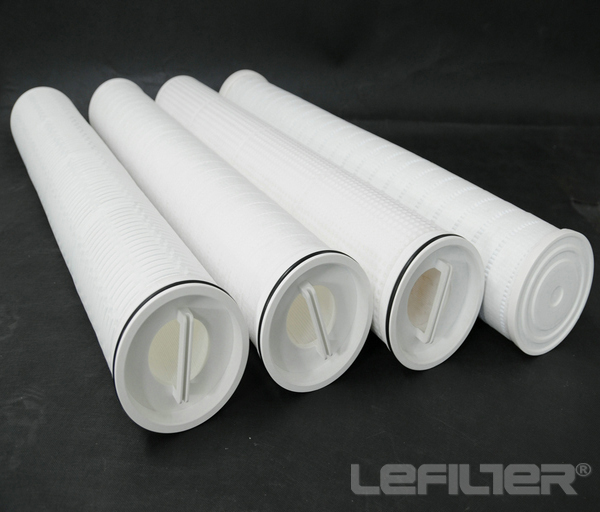

 Photo of high flow rate water filter:
