Parker RSMG40040EPP high flow water filter for food industry

The production of Parker The production of Parker RSMG010-40EPP high flow rate water filter:

When the Parker high-flow filter element filters water at 60 inches, the flow rate of a single filter element can reach 110m3/h, and 40 inches can reach 70m3/h. The flow direction from inside to outside ensures that all impurities are trapped inside the filter element, which is used for ultrafiltration of water Security filtration, ultrafiltration backwash security filter, ultrafiltration chemical cleaning security filtration reverse osmosis influent security filtration, reverse osmosis chemical cleaning security filtration and other equipment, but also used in. Desalination systems in the steel and power industries. Wastewater and sewage reuse in the industrial field. Municipal water treatment... The large-area pleated surface design can reduce lower pressure than other filter elements and obtain a longer service life. Filtration accuracy 5μm

The part material of Parker The production of Parker RSMG010-40EPP high flow rate water filter:

When the Parker high-flow filter element filters water at 60 inches, the flow rate of a single filter element can reach 110m3/h, and 40 inches can reach 70m3/h. The flow direction from inside to outside ensures that all impurities are trapped inside the filter element, which is used for ultrafiltration of water Security filtration, ultrafiltration backwash security filter, ultrafiltration chemical cleaning security filtration reverse osmosis influent security filtration, reverse osmosis chemical cleaning security filtration and other equipment, but also used in. Desalination systems in the steel and power industries. Wastewater and sewage reuse in the industrial field. Municipal water treatment... The large-area pleated surface design can reduce lower pressure than other filter elements and obtain a longer service life. Filtration accuracy 5μm

The part material of Parker RSMG010-40EPP high flow rate water filter:

Filter material: Folded deep polypropylene (PP), or melt blown polypropylene
Support / diversion layer: polypropylene
End cover: glass fiber reinforced polypropylene
O-ring seal material: EPDM, Buna N
high flow filter element filtration accuracy: 1μm, 4.5μm, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm
Filter material: folded deep polypropylene (PP), or melt blown polypropylene
Support / diversion layer: polypropylene
End cover: glass fiber reinforced polypropylene
O-ring seal material: EPDM, Buna N
Filter element size: outer diameter: 6 inch (152mm)
Length: 20inch (508mm) / 40inch (1016mm) / 60inch (1524mm)
large flow filter operating conditions: Operating temperature: folded polypropylene: 82 C; melt blown polypropylene: 65 C
Pressure drop: Folded polypropylene: 3.4bar, 82 C; Melt blown polypropylene: 1.03bar, 65 C
Recommended pressure drop for filter element replacement: 2.4bar, 20 C
Recommended filtration water flow: 20inch long filter element: 660LPM; 40inch long filter element: 1,300LPM; 60inch long filter element: 1,900LPM

Application areas of large flow filter elements:

1. Reverse osmosis equipment, ultrafiltration equipment, seawater desalination equipment pretreatment filtration
2. Power plant condensation water filtration
3. Biopharmaceutical industry raw materials, solvents, water filtration
4. Bottled water, sugar liquid, Filtration of edible oil, juice, soft drinks, milk
5.paint, coating, petrochemical industry6, microelectronics, film, fiber, resin

Other high flow filter models:

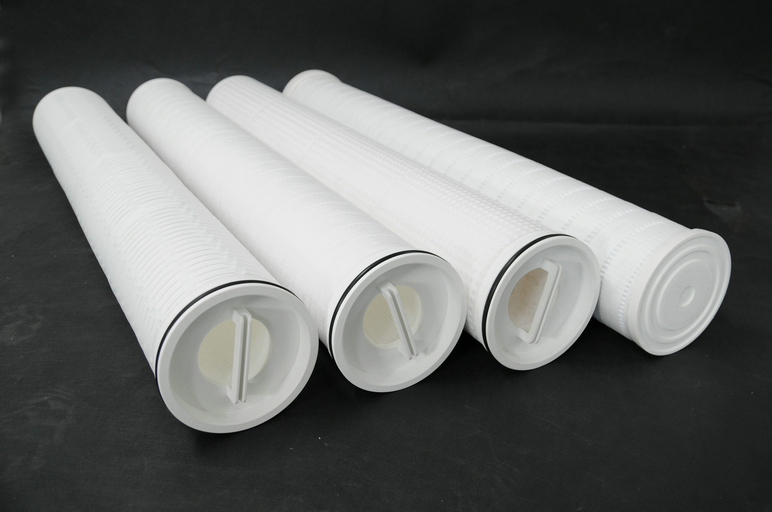

Photo of high flow rate water filter:
