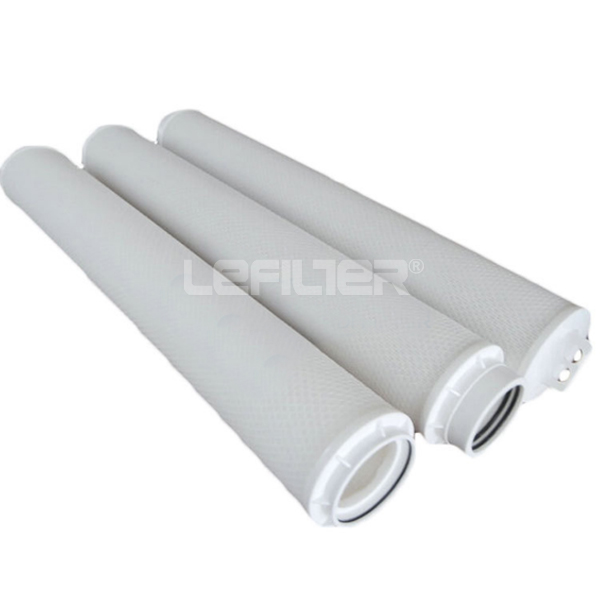

PARKER High Flow Water Filter Cartridge RMG045-60EPP
Introduction:Parker high flow filter provides a filtering scheme which can effectively replace deep and other inner diameter 2-1/2 forms in heavy- flowing situations, such as anti-osmosis pre-filtering and similar efficiency-catering occasions. Each par
We're here to help:
Easy ways to get the answers you need.
Product parameter:
Parker high flow filter provides a filtering scheme which can effectively replace deep and other inner diameter 2-1/2" forms in heavy- flowing situations, such as anti-osmosis pre-filtering and similar efficiency-catering occasions. Each park series filter can process flow of 1300 liter/minute, which significantly reduces the filter quantity and size. The capacity of a park filter is equivalent to 10 filters with diameter 2-1/2", length 40". Positively charged type O sealing ring and a built-in handle make the filter installation fast, safe and convenient.
Features of PARKER High Flow water filter cartridge
Great capacity of impurity and long life.
Less replacement saves labor cost.
Sealed interface reduces the danger of bypass flow and improve the efficiency of filtering.
Easier installment and lower labor cost
They are applied in various fields with their extensive chemical applications
Application fields
Pretreating of RO cartridge filtration, seawater desalination
Filtration of condensed water in power plants
Filtration of bulk drug, solvent, and water in bio-pharmacy industry
Filtration of bottled water, liquid glucose, edible oil, juice, softdrink and milk
Painting, petrochemical industry
Micro-electronics, film, fiber, resin
Specification and performance
155 Series
|
Serial Number |
Indicator Content |
20" |
40" |
|
1 |
Filter Specification |
Φ155*508 |
Φ155*1007 |
|
2 |
Filter Material |
Media: glass fiber or pp |
|
|
3 |
Filtration Accuracy |
5um, 15um, 30um, 50um |
|
|
4 |
Filter Form |
Folding |
|
|
5 |
Maximum Operating Temperature |
80℃ |
|
|
6 |
Suggest Maximum Water Flow |
40m3/h |
70m3/h |
|
7 |
Working Pressure |
≤ 0.245MPa |
|
|
8 |
Filter Mode |
Outside in inside out |
|
161 Series
|
Serial Number |
Indicator Content |
20" |
40" |
60" |
|
1 |
Filter Specification |
Φ161*508 |
Φ161*1016 |
Φ161*1535 |
|
2 |
Filter Material |
Media: glass fiber or pp |
||
|
3 |
Filtration Accuracy |
6um, 15um |
||
|
4 |
Filter Form |
Folding |
||
|
5 |
Maximum Operating Temperature |
80℃ |
||
|
6 |
Suggest Maximum Water Flow |
40m3/h |
70m3/h |
110m3/h |
|
7 |
Working Pressure |
≤ 0.245MPa |
||
|
8 |
Filter Mode |
Inside in outside out |
||
165 Series
|
Serial Number |
Indicator Content |
40" |
60" |
|
1 |
Filter Specification |
Φ165*1016 |
Φ165*1535 |
|
2 |
Filter Material |
Media: glass fiber or pp |
|
|
3 |
Filtration Accuracy |
5um, 10um, 20um |
|
|
4 |
Filter Form |
Folding |
|
|
5 |
Maximum Operating Temperature |
80℃ |
|
|
6 |
Suggest Maximum Water Flow |
70m3/h |
110m3/h |
|
7 |
Working Pressure |
≤ 0.245MPa |
|
|
8 |
Filter Mode |
Outside in inside out |
|
Parker High Flow Filters Typical Part Nos.
MFNP005-40N MFNP010-40N MFNP050-40N MFNP100-40N RFP005-40NPX RFP010-40NPX
RFP050-40NPX RFP100-40NPX RCP045-40EPP RSCP045-40EPP RSMG030-40EPP RCP010-20EPP
RCP010-40EPP RCP010-60SPP RCP030-40EPP RCP045-20EPP RCP030-60EPP RCP045-40EPP
RCP045-60EPP RCP045-60NPP RCP100-20EPP RCP100-40EPP RCP100-60EPP RCP200-20EPP
RCP200-40EPP RCP200-60SPP RCP400-20EPP RCP400-40EPP RCP400-60SPP RCP900-40EPP
RCP900-60EPP RSCP010-20EPP RSCP010-40EPP RSCP010-60SPP RSCP030-40EPP RSCP045-20EPP
RSCP030-60EPP RSCP045-40EPP RSCP045-60EPP RSCP045-60NPP RSCP100-20EPP RSCP100-40EPP
RSCP100-60EPP RSCP200-20EPP RSCP200-40EPP RSCP200-60SPP RSCP400-20EPP RSCP400-40EPP
RSCP400-60SPP RSCP900-40EPP RSCP900-60EPP RMG010-20EPP RMG010-40EPP RMG010-60SPP
RMG030-40EPP RMG045-20EPP RMG030-60EPP RMG045-40EPP RMG045-60EPP RMG045-60NPP
RMG100-20EPP
