High flow rate water filter HFU660UY045JUW

The Introduction of large flow rate water filter:

Large flow filters have a big diameter of 6 inches/152mm, but no center support frame. Only one end of the filter is open and its flow manner of filtering fluid is from inside to outside. The big diameter of filter elements increases effective filtering areas, and greatly reduces the amounts of filter element and the size of its body case. Due to its large flow and long life, P-all large flow filter can lower investment and human cost in many applications.

The Technical specifications of large flow rate water filter

Filter size:
outer diameter: 6"(152mm)
Length:20"(528mm),40"(1022mm),60"(1538mm)
Part material:
Filter material: folding glass fiber, folding deep polypropylene(PP), MBPP
Support/Diversion layer: polypropylene (PP)
End cap: reinforced polypropylene with glass fiber
Seal material: EPR (Ethylene-Propylene Rubber), nitrile rubber
Performance of filter elements:
Filtering accuracy:1μm,4.5μm,6μm,10μm,20μm,40μm,70μm,100μm
Highest operating temperature: folding glass fiber:121ºC
           folding deep polypropylene(PP):82ºC
           MBPP:65ºC

Maximum pressure drop:  folding glass fiber:3.4bar,121ºC
          folding deep polypropylene(PP):3.4bar,82ºC
          MBPP:1.03bar,65ºC
Recommended pressure drop for filter replacement: 2.4Bar ,20ºC
Recommended maximum filtering water flow: 20"filter: 660L/min
                          40"filter: 1300L/min
                          60"filter: 1900L/min

Application fields of large flow rate water filter

RO cartridge filtration and seawater desalination pretreatment
Filtration of condensed water in power plants
Filtration of bulk drug, solvent, and water in bio-pharmacy industry
Filtration of bottled water, liquid glucose, edible oil, juice, soft drink and milk
Painting, petrochemical industry

Micro-electronics, film, fiber, resin

The Product properties of flow rate water filter

The structure of gradual aperture
Maximum flow of one filter can be up to 110m³/h during the water filtering.
Filtration system size can be reduced by 50% in maximum.
Filters with the length of 20", 40"and 60" can be offered.
Inside-out directions guarantee all impurities will be left inside the filters.

Other model of Large flow rate water filter:

3M HF40PP001A01,HF40PP001B01, HF40PP001C01, HF40PP001D01
HF40PP002A01,HF40PP002B01, HF40PP002C01,HF40PP002D01,
HF40PP005A01,HF40PP005B01,HF40PP005C01, HF40PP005D01,
HF40PP010A01,HF40PP010B01,HF40PP010C01, HF40PP010D01,
HF40PP015A01,HF40PP015B01,HF40PP015C01, HF40PP015D01,
HF40PP025A01,HF40PP025B01,HF40PP025C01, HF40PP025D01,
HF40PP040A01,HF40PP040B01,HF40PP040C01, HF40PP040D01,
HF40PP070A01,HF40PP070B01,HF40PP070C01, HF40PP070D01,
HF60PP001A01,HF60PP001B01, HF60PP001C01,HF60PP001D01,
HF60PP002A01,HF60PP002B01,HF60PP002C01, HF60PP002D01,
HF60PP005A01,HF60PP005B01,HF60PP005C01, HF60PP005D01,
HF60PP010A01,HF60PP010B01,HF60PP010C01, HF60PP010D01,
 HF60PP015A01,HF60PP015C01,HF60PP025A01,HF60PP025C01 HF6099025D01,HF60PP040A01,HF60PP040B01HF60PP040C01
HF60PP040D01 ,HF60PP070A01 ,HF60PP070B01 ,HF60PP070C01
 HF60PP070D01  XLDM4.5-40U-HFJ
XLDM1.5-20U-HFJ XLDM3-20U-HFJ XLDM4.5-20U-HFJ
XLDM10-20U-HFJ XLDM20-20U-HFJ XLDM30-20U-HFJ
XLDM70-20U-HFJ XLDM1.5-40U-HFJ XLDM3-40U-HFJ
XLDM4.5-40U-HFJ XLDM10-40U-HFJ XLDM20-40U-HFJ
XLDM30-40U-HFJ XLDM70-40U-HFJ XLDM1.5-60U-HFJ
XLDM3-60U-HFJ XLDM4.5-60U-HFJ XLDM10-60U-HFJ
XLDM20-60U-HFJ XLDM30-60U-HFJ XLDM70-60U-HFJ
HFU620UY020J, HFU640UY020J ,HFU660UY020J ,HFU620UY045J
HFU640UY045J ,HFU660UY045J, HFU620UY100J ,HFU640UY100J
HFU660UY100J ,HFU620UY200J ,HFU640UY200J, HFU660UY200J
HFU620UY400J, HFU640UY400J ,HFU660UY400J ,HFU620UY700J
HFU640UY700J,HFU660UY700J,HFU620CAS010JUW,HFU640CAS010JUW
HFU660CAS010JUW,HFU620UY020H13,HFU640UY045H13,HFU660UY400H13
HFU620GF100H13, HFU640GF200H13, HFU660GF050H13, HFU620UY020J
HFU640UY020J, HFU660UY020J ,HFU620UY045J ,HFU640UY045J
HFU660UY045J, HFU620GF100H13, HFU640GF200H13 ,HFU660GF100H13
HFU620UY200J,HFU640UY200J,HFU660UY200J,HFU620UY400J,HFU640UY400J
HFU660UY400J HFU620UY700J HFU640UY700J HFU660UY700J
PARKER MFNP010-40N,MFNP030-40N,MFNP045-40N,MFNP060-40N,MFNP100-40N
MFNP010-60N,MFNP030-60N,MFNP045-60N,MFNP060-60N,MFNP100-60N
RSCP010-20EPP RSCP030-20EPP RSCP045-20EPP RSCP100-20EPP RSCP200-20EPP RSCP400-20EPP RSCP900-20EPP RSCP010-40EPP RSCP030-40EPP RSCP045-40EPP RSCP100-40EPP RSCP200-40EPP RSCP400-40EPP RSCP900-40EPP RSCP010-60EPP RSCP030-60EPP RSCP045-60EPP RSCP100-60EPP RSCP200-60EPP RSCP400-60EPP RSCP900-60EPP RSCP010-20SPP RSCP030-20SPP RSCP045-20SPP RSCP100-20SPP RSCP200-20SPP RSCP400-20SPP RSCP900-20SPP RSCP010-40SPP RSCP030-40SPP RSCP045-40SPP RSCP100-40SPP RSCP200-40SPP RSCP400-40SPP RSCP900-40SPP RSCP010-60SPP RSCP030-60SPP RSCP045-60SPP RSCP100-60SPP RSCP200-60SPP RSCP400-60SPP RSCP900-60SPP RSMG010-20EPP RSMG030-20EPP RSMG045-20EPP RSMG100-20EPP RSMG200-20EPP RSMG400-20EPP RSMG010-40EPP RSMG030-40EPP RSMG045-40EPP RSMG100-40EPP RSMG200-40EPP RSMG400-40EPP RSMG010-60EPP RSMG030-60EPP RSMG045-60EPP RSMG100-60EPP RSMG200-60EPP RSMG400-60EPP RSMG010-20SPP RSMG030-20SPP RSMG045-20SPP RSMG100-20SPP RSMG200-20SPP RSMG400-20SPP RSMG010-40SPP RSMG030-40SPP RSMG045-40SPP RSMG100-40SPP RSMG200-40SPP RSMG400-40SPP RSMG010-60SPP RSMG030-60SPP RSMG045-60SPP RSMG100-60SPP RSMG200-60SPP RSMG400-60SPP

Quality is the foundation of our survival

Specialized production structure:

FAQ

1.Are you a trading company or manufacturer?
A:Manufacturer with factory.
2.Do you Accept OEM service?
A:Yes! we can manufacture according to your requirement.
3.What´s your Delivery Time?
A:Normally within 1-7 working days after order confirmation.
4.How do you pack products?
A:Normally,plastic bag inside and carton outside .We´ll do according to customers´ requirement.

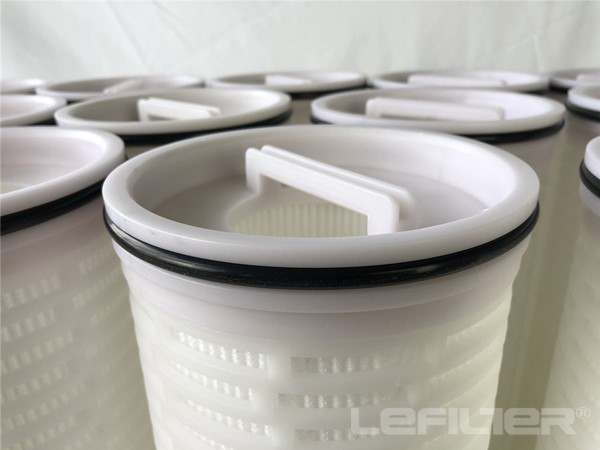

The picture of high flow rate water filter
