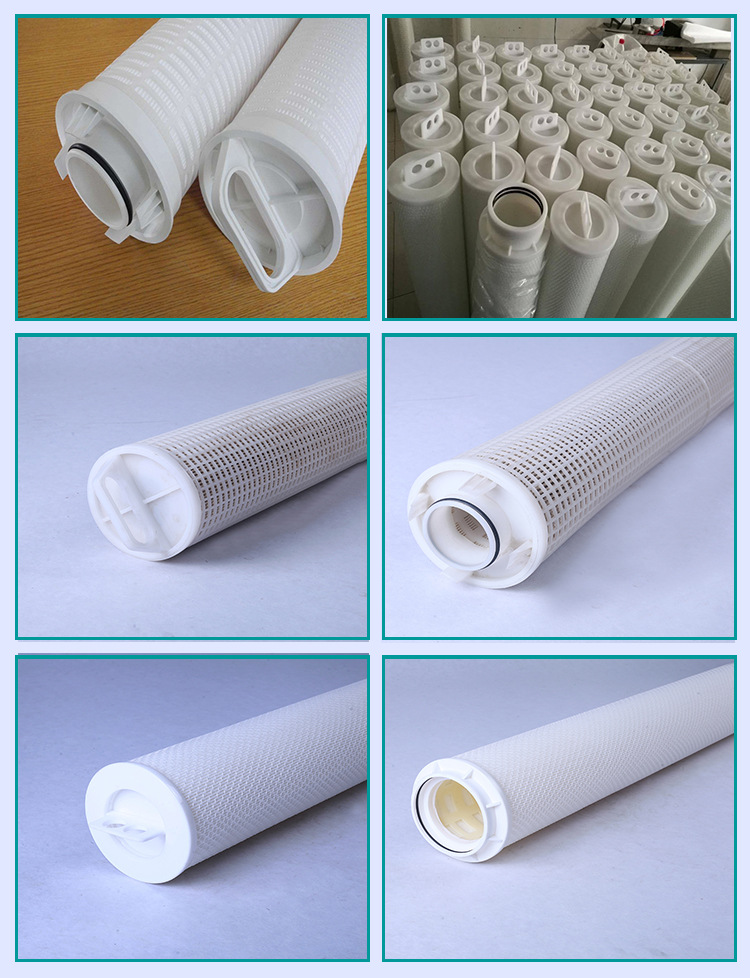

3M High flow rate water filter element HFM60PPN05D
Introduction:3M High Flow Rate Water Filter profile: The 3M high-flow filter element is the latest patented product launched by 3M in the United States that integrates advanced technologies such as non-woven technology, micro-replication technology, and
We're here to help:
Easy ways to get the answers you need.
Product parameter:
3M High Flow Rate Water Filter profile:
The 3M high-flow filter element is the latest patented product launched by 3M in the United States that integrates advanced technologies such as non-woven technology, micro-replication technology, and patent discounts.
The maximum flow rate of a single filter element can reach 110 tons/hour.
Endow the filter element with the characteristics of high precision, high efficiency, high flow, deep filtration and long service life.
The filter element has an absolute filtration efficiency of 99.9% in the range of 1-70μm.
The filter element adopts an "O" ring seal and a unique design of the draft tube, which is easy to use, can ensure the filtration efficiency and prevent side leakage.
3M High Flow Rate Water Filter feature:
1. High performance filter material
2. Patented horizontal pleating design and technology
3. 20 times more flux than conventional filter elements
4. Absolute filtering accuracy
5. Ultra-long life filter element
6. Humanized design
3M High Flow Rate Water Filter parameter:
|
Brand |
Lefilter |
Name |
High Flow Rate Filter |
|
Filter layer material |
Polypropylene |
Frame material |
Polypropylene |
|
End cover material |
Polypropylene |
Replace the pressure drop |
2.4Bar |
|
Length dimension |
10 ", 20 ", 30 ", 40 ", 60 " |
Operating temperature |
80℃ |
|
Sealing material |
Ethylene propylene rubber, nitrile rubber, fluorine rubber, neoprene |
Filter element surface form |
1.Polypropylene outer skeleton |
|
Filtration accuracy |
1μm, 5μm, 10μm, 20μm, 40μm |
||
|
Working medium |
Domestic drinking water, biopharmaceutical industry water filtration, industrial water filtration |
||
3M High Flow Rate Water Filter application field:
1.RO security filtration, seawater desalination pretreatment
2. Power plant condensate filtration
3. Filtration of raw materials, solvents and water in the biopharmaceutical industry
4.Bottled water, sugar liquid, edible oil, fruit juice, soft drink, milk filtration
5. Paint, ink, CD, magnetic medium, petrochemical industry, refining
6. Microelectronics, film, fiber, resin
Company products comply with test standards:
Filter element-rupture resistance verification according to ISO 2941
Filter element-structural integrity according to ISO 2942
Filter element-material and liquid communication compatibility verification according to ISO 2943
Filter element-end load test method according to ISO3723
Filter element-the determination of the fatigue characteristics of the filter element is in accordance with ISO3724
Filter element-Measurement of differential pressure and flow characteristics according to ISO3968
High Flow Rate Water Filte models:
|
P-all |
HFU620UY200H4、HFU620UY200H4W、HFU620UY400H、HFU620UY400H1、HFU620UY400H4、HFU620UY400H4W、HFU620UY700H1、HFU620UY700H13 |
|
3M |
HF40PP005、HF40PP010、HF40PP040、HF40PP070、HF40PP100 |
|
PAKER |
RFP010-40、RFP050-40、RFP100-40、RFP500-40、RFP1000-40、RFP010-30、RFP050-30、RFP100-30、RFP500-30、RFP1000-30、RFP010-20、RFP050-20、RFP100-20、RFP500-20、RFP1000-20 ect |
