HFU640UY200J High flow water filter cartridges
Introduction:The introduction of high flow rate water filter: The high-flow filter element has a large diameter of 152mm（millimeter） and an opening at one end. The large diameter design of the filter element increases the effective filter area and c
We're here to help:
Easy ways to get the answers you need.
Product parameter:
The introduction of high flow rate water filter:
The high-flow filter element has a large diameter of 152mm（millimeter） and an opening at one
end. The large diameter design of the filter element increases the effective filter area and can greatly reduce the number of filter elements. In many applications, due to the large flow rate and long filter life, the use cost can be reduced.
The filter element filter body is generally composed of five layers, from the outside to the inside respectively: nylon mesh (outer skeleton) → → non-woven fabric → → PP membrane (glass fiber) → → non-woven fabric → → cloth net (nylon net / inner skeleton) )
The material of high flow rate water filter:
Filter material: folded deep polypropylene, folded glass fiber, melt blown polypropylene
Support material: polypropylene
End cap material: reinforced polypropylene
Inner/outer frame material: polypropylene
Maximum working temperature: Folded glass fiber: 121℃ Folded polypropylene: 82℃ Melt blown polypropylene: 65℃
Processing accuracy level: 1,4.5,6,10,20,40,70,100um
Filter element outer diameter: 6.3 inches (160mm) inner diameter: 3.5 inches (89mm) length: 20 inches (508mm) 40 inches (1016mm) 60 inches (1524mm)
Sealing ring material: ethylene propylene rubber, nitrile rubber (O type, U type)
High-flow water filter cartridges are commonly divided into: outer framework form, outer framework + inner framework form, outer winding belt form, etc. Most of the more used are the outer framework form
High-flow water filter elements generally filter from the inside to the outside
|
Initial pressure difference |
0.02MPa |
|
Replacement pressure drop |
2.4Bar |
|
Maximum allowable pressure drop |
3.4Bar |
|
Maximum operating temperatur |
80℃ |
|
Filtration direction |
From inside to outside, without internal skeleton |
|
Accuracy level |
1.5μm, 3μm, 4.5μm, 10μm, 20μm, 30μm, 70μm |
|
Filter material |
polypropylene glass fibe |
|
Sealing materials |
ethylene propylene rubber, rubber, fluorine rubber, neoprene |
|
Outer diamete |
6 inches (152.5mm) |
|
Length |
20 inches (508mm), 40 inches (1016mm), 60 inches (1524mm) |
Application fields
RO cartridge filtration, desalination pretreatment
The filtration of Power plant condensate water
Raw material drug, solvents and water filtration in biopharmaceutical industry
Filtration for bottled water, liquid glucose, edible oil, juice, soft drink and milk
Paints, coatings, petrochemical
Microelectronics, films, fibers, resins
Company certification:
Factory shots:

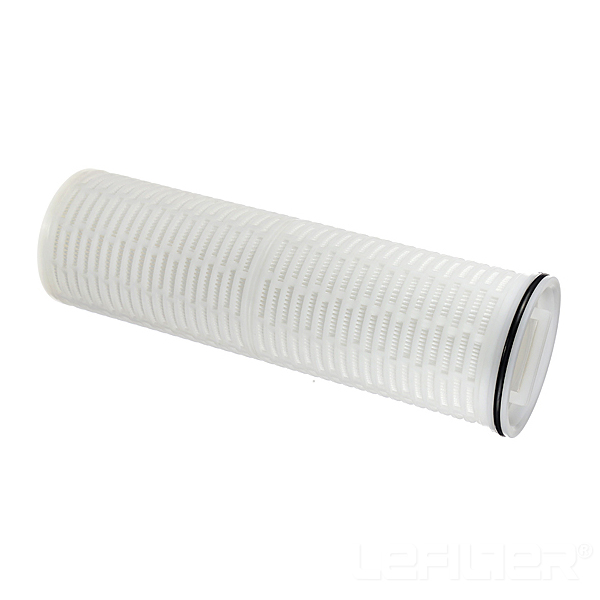

The picture of high flow water filter:
