Pentair Aqualine large flow water filter ALPF-60006

The introduction of water filter

The large-flow filter element has a diameter of 170mm, and a single filter element. The filter area exceeds 12 m 2, which has a larger filter area and dirt holding capacity. The flow rate can reach 120 m3/h, which can greatly reduce the number of filter elements and the size of the filter housing. The filtration system has a higher filtration flow rate while occupying a low space. The flow direction is from outside to outside. A wide range of chemical compatibility can be used in a variety of fields

The water filter Product Features:

1. High-density folding to achieve a large filter area
2. Increase the filter area and dirt holding capacity to extend the service life
3. Reduce the number of system filter elements, reduce the volume of the shell, and save costs
4. Built-in PP skeleton, not easy to deform, and can withstand greater reverse pressure difference
5. In-depth filtration reduces the maintenance and replacement time of the machine, and the operating cost is lower

The material of water filter

Filter material: polypropylene
Filter area: ≥12m 2
Diversion layer/support layer: polypropylene
Inner cage/end cap/connecting ring: polypropylene
Outer diameter of filter element: 170mm
Outer diameter of end cap: 200mm
Inner diameter of filter element: 71.5mm
Seal size: 100mm
Length: 40”(1016mm) 60”(1524mm)
Sealing material: silicone rubber, EPDM
Filtration accuracy: 1μm, 5μm, 10μm, 15μm, 20μm, 50μm, 70μm, 100μm
Test flow: 40 inches 5 microns ≥ 60m 3 /h
Working temperature: 82℃
.Working pressure difference: 0.38MPa / 21℃ /0.15MPa 82℃
Recommended replacement pressure difference: 2.4bar / 20℃

Characteristics of large flow filter element

◆Allow high-flow media to pass through the filter material, which has the advantages of high efficiency, low pressure loss and long life.
◆The outer inlet and inner outlet structure of the high-flow filter element makes it easy to replace the filter element while keeping pollutants blocked on the outside of the filter element.
◆There is a pp support frame inside the filter element, which can withstand a pressure difference of 0.245MPa.
◆The β value of the filter element is above 1000.
◆Multiple filter elements can be installed in the filter housing, and a wide range of flow can be used, regardless of starting or continuous operation.
◆The filter element can also be equipped with a small and economical filter.
Filter parameters:
Nominal length (mm/in): 1500/60
Diameter (mm/in): 171/6.75
Material: Polypropylene
Filtration accuracy: 0.6-70μ
Recommended replacement pressure difference (bar): 2.5
Sealing ring: EPDM, viton
Temperature (℉/℃): 180/80

Application field:

Company certification:

Factory shot:

Other Model number:

ALPF-60006 ALPF-60020 ALPF-60050 ALPF-60100
ALPF-60200 ALPF-60400 ALPF-60700   ALN05-60B

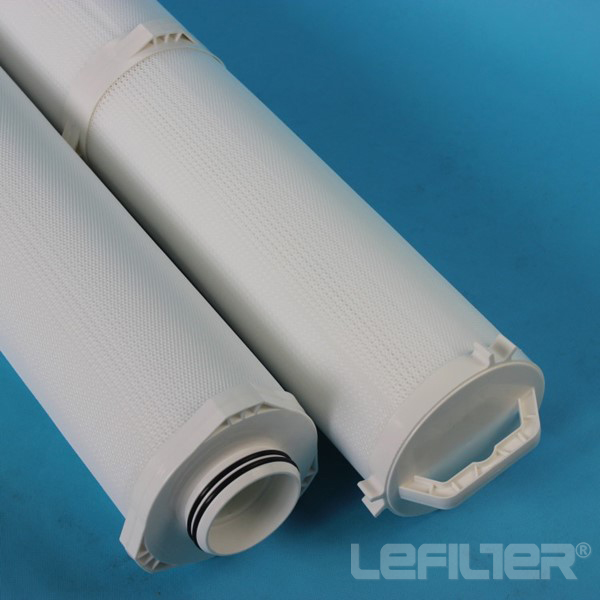

The picture of water filter:
