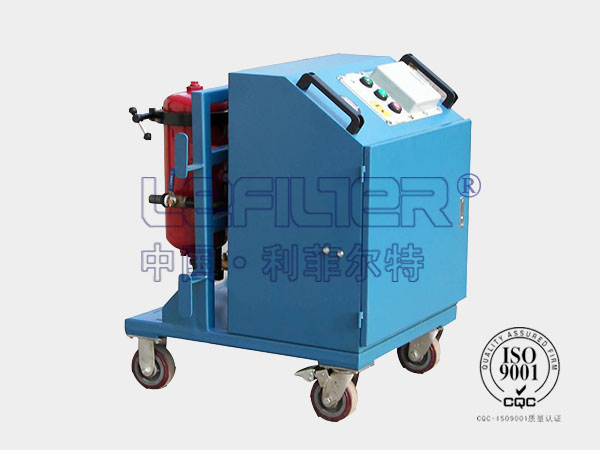

LYC-C Series Box-type mobile oil filter
Introduction:LYC-C Series Box-type mobile oil filter Applications ● Fuel filtration of when filling to the hydraulic lubrication system ● Bypass filtration when hydraulic lubrication system at work ● Loop filtration before the hydraulic lubrication
We're here to help:
Easy ways to get the answers you need.
Product parameter:
LYC-C Series Box-type mobile oil filter
Applications
● Fuel filtration of when filling to the hydraulic lubrication system
● Bypass filtration when hydraulic lubrication system at work
● Loop filtration before the hydraulic lubrication system into operation.
● Access hydraulic lubrication system, comprehensively improve the cleanliness of the system
Product Performance
1. This machine adopts refined shell covered all the components to protect equipment from outside contamination, particularly adapted to the use of special environmental requirements of the occasion.
2. The machine consists of a motor-driven gear pump, dedicating low noise, strong self-absorption capacity, and smooth running characteristics.
3. The high-pressure pipe with overflow protection devices, which can effectively protect the safety of the hydraulic system.
4. The use of thermal relay protection to prevent motor damage caused by motor overload.
5. Coarse filtration of suction port can protect the pump and extend the life of the main filter.
6. After the pump has two precision filters, so the oil can quickly reach high cleanliness.
7. First precision filter can filter out the larger particles of impurities, and secondary precision filter can filter out smaller particles or moisture.
8. The precision filter chosen by different users for different precision, can provide better protection for the system.
9. Precision oil filtration housing with quick open structure, which can quickly open the cover and replace the filter without any tools.
10. Pressure gauge equipped on the panel, can show the continuous indication of the degree of contamination of the system operating conditions and filter.
Technical parameters
Note: * Secondary precision filter accuracy, such as 003 means 3 um
** The applicable media: generally hydraulic oil
BH: water, glycol
V: phosphate ester hydraulic fluids
Applications
● Fuel filtration of when filling to the hydraulic lubrication system
● Bypass filtration when hydraulic lubrication system at work
● Loop filtration before the hydraulic lubrication system into operation.
● Access hydraulic lubrication system, comprehensively improve the cleanliness of the system
Product Performance
1. This machine adopts refined shell covered all the components to protect equipment from outside contamination, particularly adapted to the use of special environmental requirements of the occasion.
2. The machine consists of a motor-driven gear pump, dedicating low noise, strong self-absorption capacity, and smooth running characteristics.
3. The high-pressure pipe with overflow protection devices, which can effectively protect the safety of the hydraulic system.
4. The use of thermal relay protection to prevent motor damage caused by motor overload.
5. Coarse filtration of suction port can protect the pump and extend the life of the main filter.
6. After the pump has two precision filters, so the oil can quickly reach high cleanliness.
7. First precision filter can filter out the larger particles of impurities, and secondary precision filter can filter out smaller particles or moisture.
8. The precision filter chosen by different users for different precision, can provide better protection for the system.
9. Precision oil filtration housing with quick open structure, which can quickly open the cover and replace the filter without any tools.
10. Pressure gauge equipped on the panel, can show the continuous indication of the degree of contamination of the system operating conditions and filter.
Technical parameters
| Model | LYC-32C-*/** | LYC-40C-*/** | LYC-50C-*/** | LYC-63C-*/** | LYC-100C-*/** |
| Rated flow (L/min) | 32 | 40 | 50 | 63 | 100 |
| Temperature (°C) | 5-80 | ||||
| Recommended viscosity (CSt) | 10-160 | ||||
| Rated pressure (Mpa) | 0.6 | ||||
| The original pressure loss (Mpa) | ≤0.01 | ||||
| First coarse filtration accuracy (μm) | 100 | ||||
| Secondary precision filtration accuracy( μm) | 10、20、40 | ||||
| Secondary precision filtration accuracy (μm) | 3、5、10、20 | ||||
| Voltage (V) | Three-phase AC380V Two-phase AC220V | ||||
| Motor Power (kw) | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 |
| Weight (kg) | 135 | 145 | 150 | 156 | 182 |
| Dimensions (mm) | 950×560×900 | 950×560×900 | 950×560×900 | 950×560×900 | 1100×660×1000 |
** The applicable media: generally hydraulic oil
BH: water, glycol
V: phosphate ester hydraulic fluids
Xinxiang Lifeierte Filter Corp.,Ltd （Stock code：837936）is specialized in manufacture of filters ,filter equipment,and environment system . Located in Xinxiang City-the center of Filtration in China.Lefilter has superior R & D team, professional technical team,experienced overseas sales team and perfect after-sales service system.We Lefilter people will try our best to satisfy customers' requirements.The develop philosophy of LEFILTER is “To purify environment,To serve society,To manage faithfully and To oyrsye excellence”!What’s more,there're advanced production line,test machine and R & D department.They also obtained certification like ISO9001, IQNet & CQM,SGS,CNEX etc.
