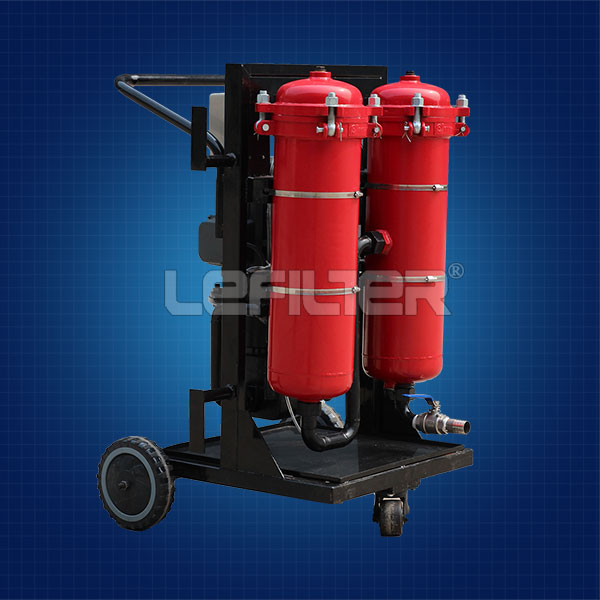

LYC-B Series High-precision oil filter

Applications of LYC-B Series High-precision oil filter

● New oil filtration
● Filling the new oil and purifying
● Cleaning up the oil being used
● Bypass filtration when hydraulic lubrication system at work
● Removing the water from oil system



　　Product Performance
    1. The machine consists of a motor-driven gear pump, dedicating low noise, strong self-absorption capacity, and smooth running characteristics.
    2. The high-pressure pipe with overflow protection devices, which can effectively protect the safety of the hydraulic system.
    3. The use of thermal relay protection to prevent motor damage caused by motor overload.
    4. Coarse filtration of suction port can protect the pump and extend the life of the main filter.
    5. After the pump has two precision filters, so the oil can quickly reach high cleanliness.
    6. First precision filter can filter out the larger particles of impurities, and secondary precision filter can filter out smaller particles or moisture.
    7. The precision filter chosen by different users for different precision, can provide better protection for the system.
8. Precision oil filtration housing with quick open structure, which can quickly open the cover and replace the filter without any tools.
9. Pressure gauge equipped on the panel, can show the continuous indication of the degree of contamination of the system operating conditions and filter.
