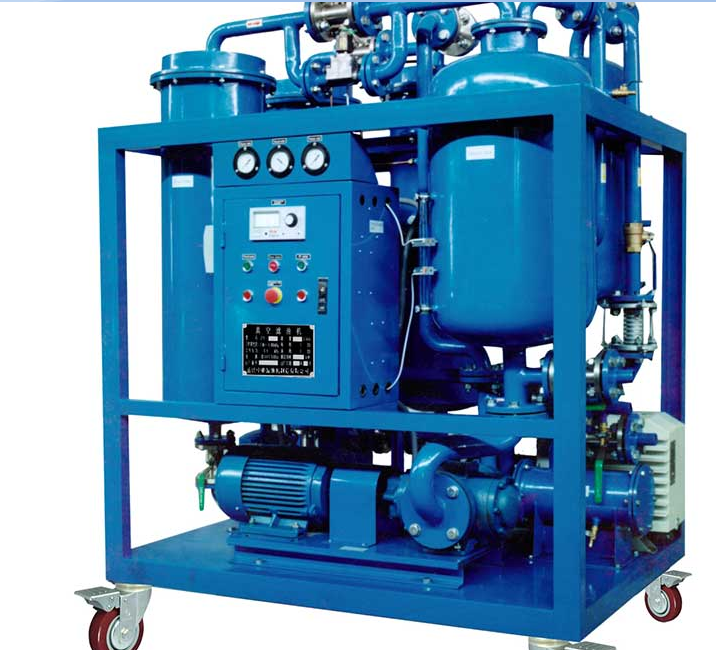

TY series of special vacuum turbine oil purifier

Introduction:Technical features: 1, the model concentration method, a gasification method, coacervation method, vacuum separation, filtration, etc. and the mechanical one, using coacervation, molecular absorption, vacuum drying, automatic emulsification

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Inquiry

Product parameter:

Technical features:
1, the model concentration method, a gasification method, coacervation method, vacuum separation, filtration, etc. and the mechanical one, using coacervation, molecular absorption, vacuum drying, automatic emulsification techniques, both the separated oil large amounts of water, can also remove trace moisture in oil, dehydrated emulsion breaking high efficiency, so turbid emulsified oil becomes clear and transparent.
2, sophisticated multi-level filter can effectively remove all impurities, progressively encryption, pollutant carrying capacity, long service life.
3, advanced infrared liquid level control system, sound and light alarm system and pressure protection device to ensure the safe and stable operation.
4, online processing turbine oil and low viscosity oil.


Purpose:
Widely used in electric power, chemical, paper, metallurgical industries steam turbine, gas turbine, turbine turbine oil online processing, ensure the unit adjustment, lubrication system working properly, also for low viscosity lubricants and cooling oil for processing.
Technical parameters:
Index Name Unit TY-10 TY-20 TY-30 TY-50 TY-100 TY-150 TY-200 TY-300
Flow L/min 10 20 30 50 100 150 200 300
Working vacuum Mpa -0.06~-0.095
Working Pressure Mpa ≤0.4
Temperature control range 20 ~80
Power supply   380V 50HZ(Or according to user needs)
Noise dB(A) ≤65~80
Trouble-free working time h ≥4000
Continuous working time h ≥150
Electric heating power Kw 12 15 18 24 45 60 72 84
Total electric power Kw 14 17 20 27 48 66 81 97
Into the (export) diameter mm 25 25 25 32 42 50 50 60
Equipment weight kg 400 450 500 600 800 1000 1100 1550
Equipment size Length mm 1280 1350 1350 1350 1500 1500 1600 1650
Width mm 750 900 950 1000 1000 1200 1350 1350
Height mm 1450 1450 1500 1800 1800 1800 1800 1850
After filtration index Break emulsification value min ≤15/min(GB/F7035)
Moisture ppm ≤80
Gas content % ≤0.1
Cleanliness   ≤NAS 6 级
