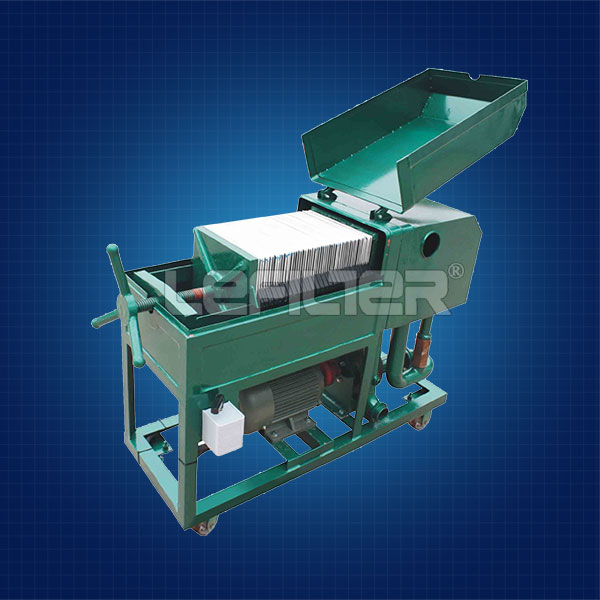

LY Series Frame pressure oil filter
Introduction:Application: Used in power plants, power plants, industrial and mining substations, petroleum, chemical, metallurgy, defense and other units for filtering transformer oil, turbine oil, hydraulic oil, oil in water and impurities. Use paper as
We're here to help:
Easy ways to get the answers you need.
Product parameter:
Application:
Used in power plants, power plants, industrial and mining substations, petroleum, chemical, metallurgy, defense and other units for filtering transformer oil, turbine oil, hydraulic oil, oil in water and impurities. Use paper as the filter material.
Selectable modes:
According to the user's requirements with optional automatic level control, automatic pressure alarm
Technical parameters:
Used in power plants, power plants, industrial and mining substations, petroleum, chemical, metallurgy, defense and other units for filtering transformer oil, turbine oil, hydraulic oil, oil in water and impurities. Use paper as the filter material.
Selectable modes:
According to the user's requirements with optional automatic level control, automatic pressure alarm
Technical parameters:
| Index Name | Unit | LY-30 | LY-50 | LY-100 | PLY-125 | LY-150 | LY-200 | LY-300 |
| Oil filtering capabilities | L/H | 1800 | 3000 | 6000 | 7500 | 9000 | 12000 | 18000 |
| Working Pressure | MPa | 0-0.3 | ||||||
| Filter area | ≥ m 2 | 0.48 | 0.6 | 1.35 | 1.55 | 2 | 2.5 | 3.1 |
| Frame size | mm | 180×180 | 280×280 | |||||
| Compression mode | Manual compression screw | |||||||
| The number of filter box | 14 | 18 | 39 | 47 | 24 | 29 | 34 | |
| Plates number | 15 | 19 | 40 | 48 | 25 | 30 | 35 | |
| Power | KW | 1．1 | 2．2 | 3 | 5．5 | |||
| The inlet diameter（mm） | 25 | 44 | 50 | 65 | ||||
| Oil outlet diameter（mm） | 19 | 32 | 44 | 50 | ||||
| Dimensions | Length | 800 | 900 1000 | 1100 | 1200 | |||
| Width | 300 | 440 | | |||||
| Height | 720 | 840 | 1000 | | ||||
| Paper size | mm | 180×180 | 280×280 | |||||
| Weight | kg | 50 | 55 | 85 | 110 | 150 | 175 | 190 |
| Accuracy | ≤ 1-3 | |||||||
