PP Melt Blown water Filter Cartridge for beverage
Introduction:Industrial Water Treatment P P Melt Blown Filter Cartridge 150micron PP melt blown filter cartridge PP Melt Blown Filter Cartridge is fusing and intertwined of polypropylene resin without any chemical glues. The cartridges are glued at rand
We're here to help:
Easy ways to get the answers you need.
Product parameter:

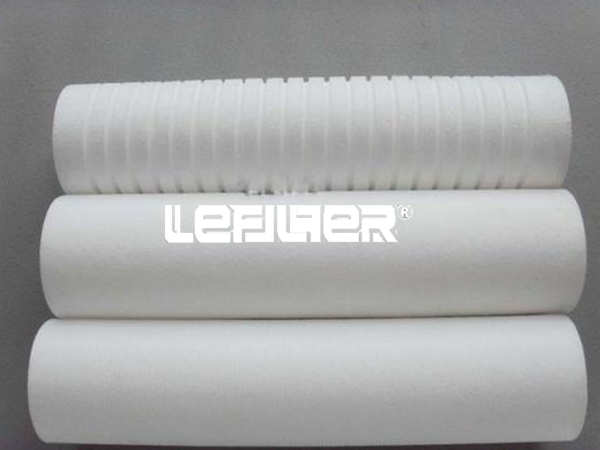

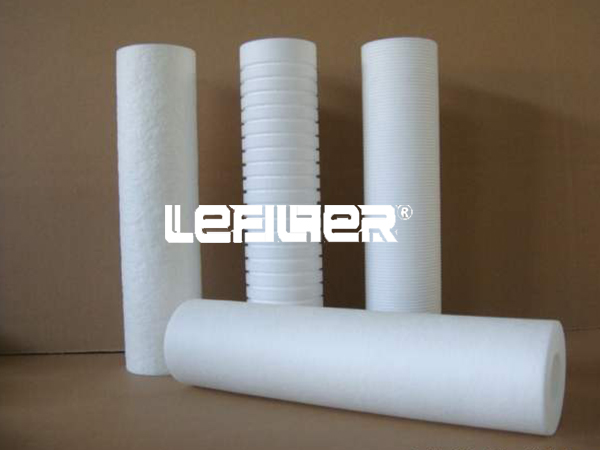

PP melt blown filter cartridge
The filter element is made of polypropylene (PP) hot-melt method, and its micron number is from 1um to 300um. The filter element has no inner shaft and adopts an inner dense and outer sparse design, which not only can maintain a stable flow pressure difference and service life, but also has excellent The deep filtration effect and the accumulation of pollutants are a kind of high efficiency, low pressure difference, long service life and wide applicability. The chemical composition of PP is clean, and it meets the food hygiene standards. It will not filter the material due to the material. The liquid produces secondary pollution, which has the characteristics of large flow, high precision, corrosion resistance, and high pressure resistance.
The parameter of PP melt blown water filter
|
specification |
Filtration accuracy |
0.5, 1.5, 10, 25, 50,75, micron |
|
length |
251,254,500,508,750,762,1000,1016mm |
|
|
Inner diameter |
PP-28,30mm 202SS, 304SS,316LSS-26,28,30,36,42,60MM |
|
|
Outside diameter |
63,115mm |
|
|
Structural materials |
Filter media |
100%Polypropylene fiber |
|
Internal skeleton |
Polypropylene, glass reinforced polypropylene, ss201, ss304, ss316L, titanium |
|
|
Inner liner |
Polypropylene, absorbent cotton, glass fiber, carbon fiber, polyester, nylon, polyacrylonitrile |
|
|
O-ring & gasket |
EPDM, Buna N, Silicone, Viton, Teflon coated Viton |
|
|
Operational restrictions |
Maximum operating pressure |
30 psid/2.1 bar at 70℃ 60 psid/ 4.2 bar at 20℃ |
|
Recommended operating temperature |
176°F/80℃ |
Features and Benefits:
1) 5 &10 Micron nominal filtration.
2) High chlorine taste and odor reduction-high chlorine adsorption capacity.
3) High dirt holding capacity extends service life.
4) Excellent for pre-filtration or pre-treatment in RO application.
5) Designed to be used in most standard-size housings.
6) Performance data based on manufacturer's internal testing.Not performance certified or tested by NSF.
7) Reduces Chlorine/chloramines, VOCs, pesticides and taste / odor contaminants.
8) Change cartridge every 6-10 months or upon substantial pressure reduction.
